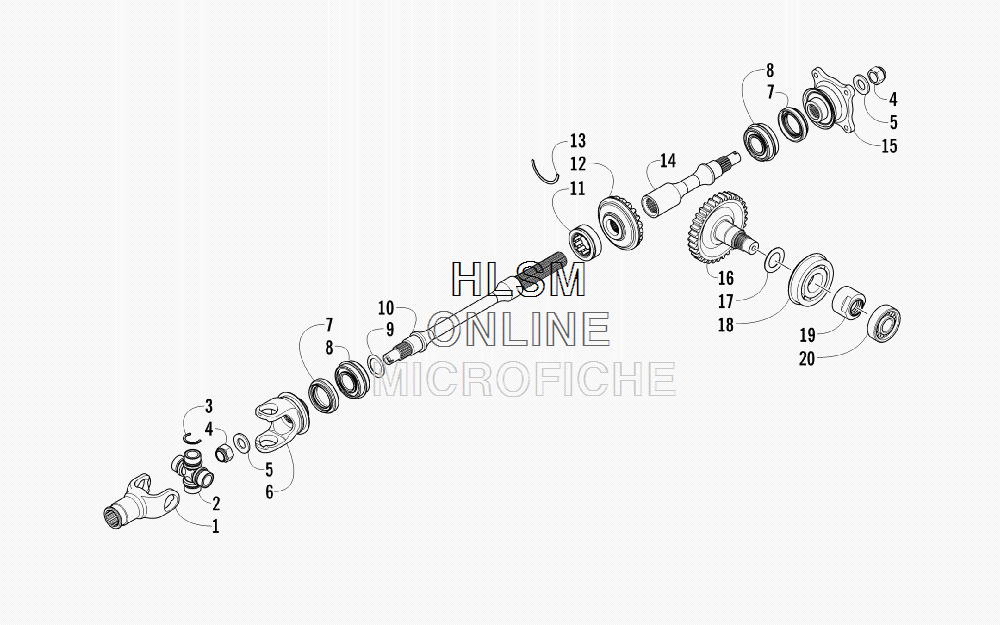

SECONDARY DRIVE ASSEMBLY для Arctic Cat PROWLER XTZ BLUE [U2011P4W1PUSD] - 2011 года выпуска
-
№АртикулНазвание
-
10502-829 YOKE, DRIVE OUTPUTYOKE, DRIVE OUTPUT
-
20402-944 JOINT, UNIVERSAL - SET (INC. 3)JOINT, UNIVERSAL - SET (INC. 3)
-
30423-395 ...RING, RETAINING...RING, RETAINING
-
40827-013 NUTNUT
-
50828-020 WASHERWASHER
-
60502-828 YOKE, PROPELLER SHAFT JOINTYOKE, PROPELLER SHAFT JOINT
-
70830-043 SEAL, OILSEAL, OIL
-
80832-017 BEARINGBEARING
-
90828-021 SHIM, 25 X 34 X 0.25 MMSHIM, 25 X 34 X 0.25 MM
-
90828-022 SHIM, 25 X 34 X 0.30 MMSHIM, 25 X 34 X 0.30 MM
-
90828-023 SHIM, 25 X 34 X 0.70 MMSHIM, 25 X 34 X 0.70 MM
-
90828-024 SHIM, 25 X 34 X 0.90 MMSHIM, 25 X 34 X 0.90 MM
-
90828-025 SHIM, 25 X 34 X 0.95 MMSHIM, 25 X 34 X 0.95 MM
-
90828-026 SHIM, 25 X 34 X 1.00 MMSHIM, 25 X 34 X 1.00 MM
-
90828-027 SHIM, 25 X 34 X 1.05 MMSHIM, 25 X 34 X 1.05 MM
-
90828-028 SHIM, 25 X 34 X 1.10 MMSHIM, 25 X 34 X 1.10 MM
-
90828-029 SHIM, 25 X 34 X 1.15 MMSHIM, 25 X 34 X 1.15 MM
-
100819-089 SHAFT, SECONDARY DRIVEN - FRONTSHAFT, SECONDARY DRIVEN - FRONT
-
110832-016 BEARING, DRIVEN GEARBEARING, DRIVEN GEAR
-
120822-106 GEAR, SECONDARY DRIVENGEAR, SECONDARY DRIVEN
-
130819-011 RING, DRIVEN BEARINGRING, DRIVEN BEARING
-
140819-053 SHAFT, SECONDARY DRIVEN - REARSHAFT, SECONDARY DRIVEN - REAR
-
150819-005 FLANGE, OUTPUT JOINTFLANGE, OUTPUT JOINT
-
160822-108 GEAR, SECONDARY DRIVE - (UP TO ENGINE SERIAL NO. 40010069)GEAR, SECONDARY DRIVE - (UP TO ENGINE SERIAL NO. 40010069)
-
160822-132 GEAR, SECONDARY DRIVE - (ENGINE SERIAL NO. 40010070 AND UP)GEAR, SECONDARY DRIVE - (ENGINE SERIAL NO. 40010070 AND UP)
-
170828-119 SHIM, 30 X 48 X 0.25 MMSHIM, 30 X 48 X 0.25 MM
-
170828-120 SHIM, 30 X 48 X 0.30 MMSHIM, 30 X 48 X 0.30 MM
-
170828-121 SHIM, 30 X 48 X 0.35 MMSHIM, 30 X 48 X 0.35 MM
-
170828-122 SHIM, 30 X 48 X 0.90 MMSHIM, 30 X 48 X 0.90 MM
-
170828-123 SHIM, 30 X 48 X 0.95 MMSHIM, 30 X 48 X 0.95 MM
-
170828-124 SHIM, 30 X 48 X 1.00 MMSHIM, 30 X 48 X 1.00 MM
-
170828-125 SHIM, 30 X 48 X 1.05 MMSHIM, 30 X 48 X 1.05 MM
-
170828-126 SHIM, 30 X 48 X 1.10 MMSHIM, 30 X 48 X 1.10 MM
-
170828-127 SHIM, 30 X 48 X 1.15 MMSHIM, 30 X 48 X 1.15 MM
-
180832-083 BEARING, 6306NR-W/SNAP RINGBEARING, 6306NR-W/SNAP RING
-
190827-060 NUTNUT
-
200832-050 BEARING, CONRAD-6304BEARING, CONRAD-6304
