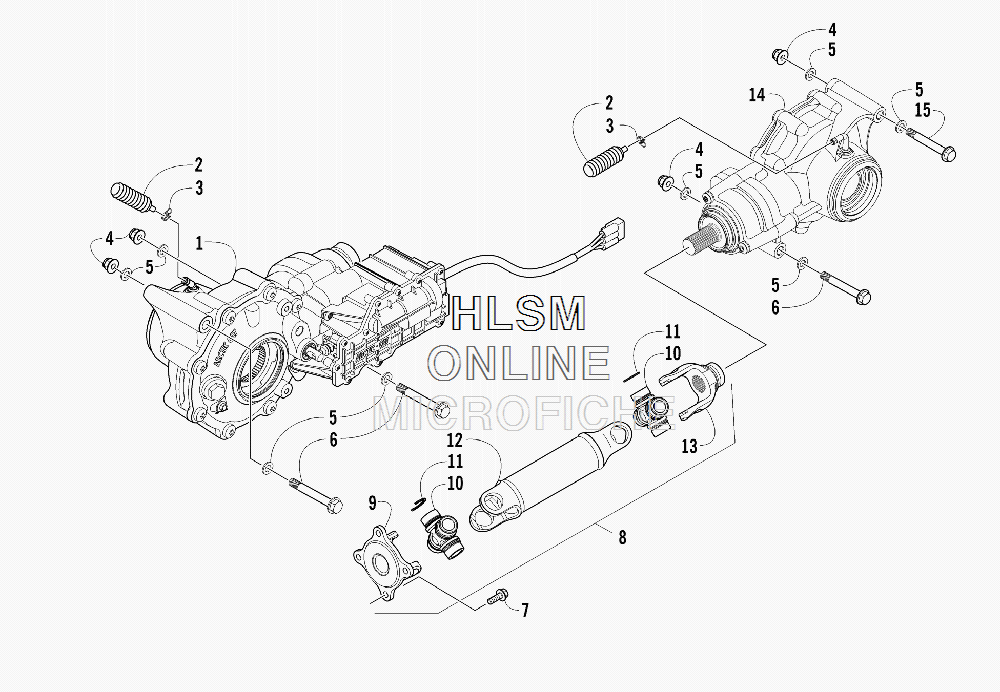

DRIVE TRAIN ASSEMBLY для Arctic Cat 1000 GT ORANGE INTERNATIONAL [A2012AGW1POSY] - 2012 года выпуска
-
№АртикулНазвание
-
11502-882 GEARCASE, FRONTGEARCASE, FRONT
-
21402-620 BLADDER, GEARCASEBLADDER, GEARCASE
-
30423-315 CLAMP, HOSECLAMP, HOSE
-
48428-002 NUT, LOCKNUT, LOCK
-
50423-426 WASHERWASHER
-
60423-404 SCREW, CAPSCREW, CAP
-
78408-820 SCREW, CAPSCREW, CAP
-
81502-098 DRIVESHAFT, REAR - ASSEMBLY (INC. 9-13)DRIVESHAFT, REAR - ASSEMBLY (INC. 9-13)
-
91402-689 ...YOKE, FLANGE...YOKE, FLANGE
-
100402-944 ...JOINT, UNIVERSAL (INC.11)...JOINT, UNIVERSAL (INC.11)
-
110423-395 ......RING, RETAINING......RING, RETAINING
-
121502-099 ...DRIVESHAFT, REAR...DRIVESHAFT, REAR
-
131402-567 ...YOKE, SLIP...YOKE, SLIP
-
141502-883 GEARCASE, REARGEARCASE, REAR
-
150423-830 SCREW, CAPSCREW, CAP
