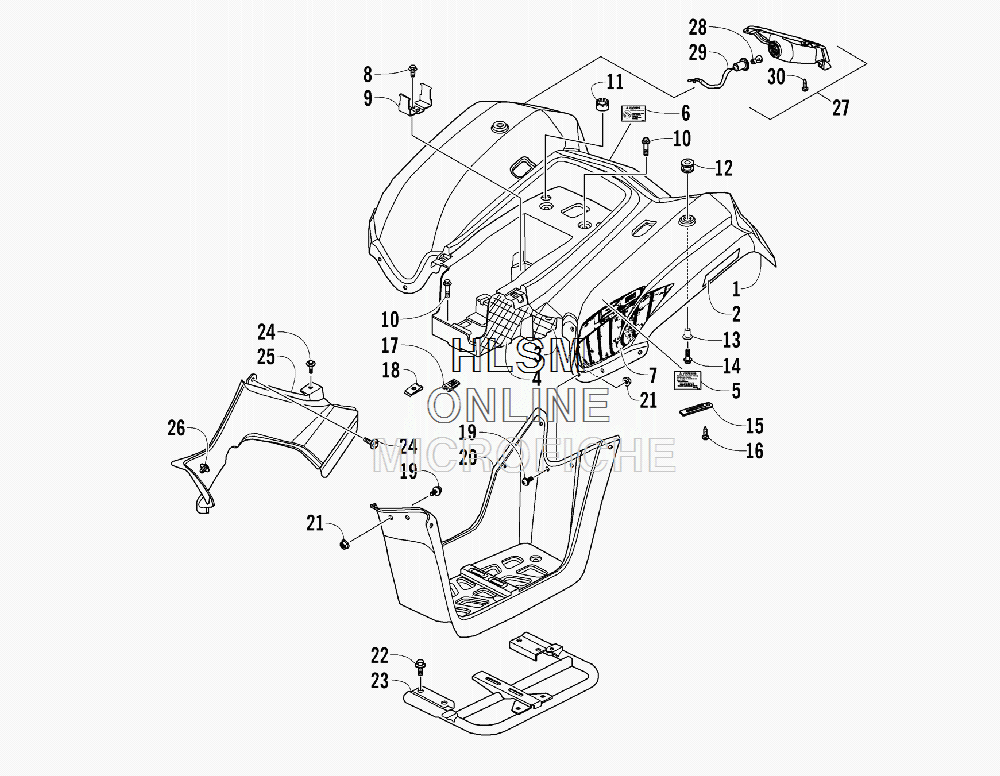

REAR BODY PANEL AND TAILLIGHT ASSEMBLIES для Arctic Cat 150 [A2012KYC2BUSP] - 2012 года выпуска
-
№АртикулНазвание
-
13306-684 FENDER, REAR - BLACK (INC. 2-6)FENDER, REAR - BLACK (INC. 2-6)
-
21411-178 ...DECAL, REFLECTOR - RIGHT...DECAL, REFLECTOR - RIGHT
-
21411-179 ...DECAL, REFLECTOR - LEFT...DECAL, REFLECTOR - LEFT
-
33305-164 ...FOIL, PROTECTIVE - REAR...FOIL, PROTECTIVE - REAR
-
43305-163 ...FOIL, PROTECTIVE...FOIL, PROTECTIVE
-
51411-805 ...DECAL, WARNING - TIRE/LOAD...DECAL, WARNING - TIRE/LOAD
-
61411-809 ...DECAL, WARNING - PASSENGER...DECAL, WARNING - PASSENGER
-
72411-612 DECAL, SIDE - LOWER RIGHTDECAL, SIDE - LOWER RIGHT
-
72411-613 DECAL, SIDE - LOWER LEFTDECAL, SIDE - LOWER LEFT
-
83304-409 SCREW, CAPSCREW, CAP
-
93305-238 BRACKET, MOUNTING - STARTER/MAGNETO SWITCHBRACKET, MOUNTING - STARTER/MAGNETO SWITCH
-
103304-587 SCREW, MACHINESCREW, MACHINE
-
113303-232 GROMMETGROMMET
-
123303-227 GROMMETGROMMET
-
133303-233 INSERTINSERT
-
143304-586 SCREW, CAPSCREW, CAP
-
153304-156 CLAMP, WIRECLAMP, WIRE
-
163304-651 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
173303-267 CLIP, U-NUTCLIP, U-NUT
-
183304-061 CLIP, U-NUTCLIP, U-NUT
-
193305-703 SCREW, MACHINESCREW, MACHINE
-
203305-932 FOOTWELL - RIGHTFOOTWELL - RIGHT
-
203305-933 FOOTWELL - LEFTFOOTWELL - LEFT
-
213304-431 NUT, LOCKNUT, LOCK
-
223304-543 SCREW, CAPSCREW, CAP
-
233305-160 SUPPORT, FOOTWELL - RIGHTSUPPORT, FOOTWELL - RIGHT
-
233305-161 SUPPORT, FOOTWELL - LEFTSUPPORT, FOOTWELL - LEFT
-
243304-029 SCREW, MACHINESCREW, MACHINE
-
253305-934 FENDER, LOWER - RIGHTFENDER, LOWER - RIGHT
-
253305-935 FENDER, LOWER - LEFTFENDER, LOWER - LEFT
-
263303-592 RIVET, REINSTALLABLERIVET, REINSTALLABLE
-
273305-732 TAILLIGHT - ASSEMBLY - RIGHT (INC. 28-29)TAILLIGHT - ASSEMBLY - RIGHT (INC. 28-29)
-
273305-733 TAILLIGHT - ASSEMBLY - LEFT (INC. 28-29)TAILLIGHT - ASSEMBLY - LEFT (INC. 28-29)
-
283303-849 ...BULB, TAILLIGHT...BULB, TAILLIGHT
-
293305-217 ...HARNESS, TAILLIGHT...HARNESS, TAILLIGHT
-
303304-645 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
