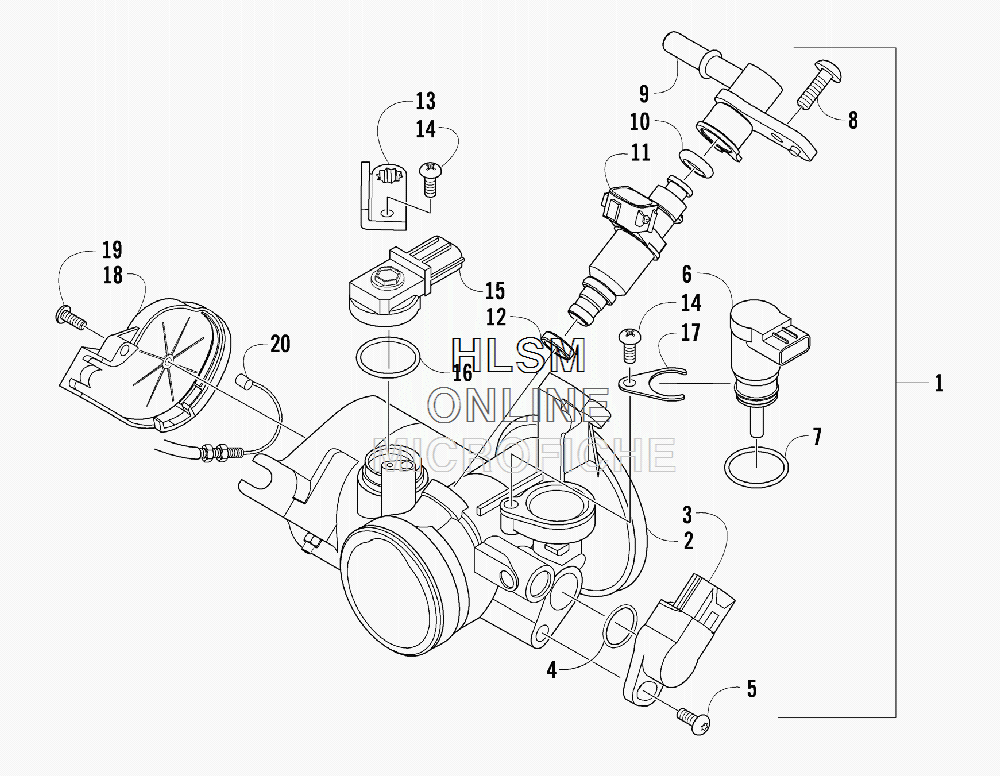

THROTTLE BODY ASSEMBLY для Arctic Cat 550 BLACK [A2012ICO4EUSP] - 2012 года выпуска
-
№АртикулНазвание
-
10470-753 THROTTLE - ASSEMBLY (INC. 2-19)THROTTLE - ASSEMBLY (INC. 2-19)
-
30430-072 ...SENSOR, THROTTLE POSITION...SENSOR, THROTTLE POSITION
-
45507-234 ...O-RING...O-RING
-
55507-231 ...SCREW, MACHINE...SCREW, MACHINE
-
60430-074 ...VALVE, ISC...VALVE, ISC
-
75507-233 ...O-RING...O-RING
-
85507-238 ...SCREW, MACHINE...SCREW, MACHINE
-
90470-687 ...RAIL, FUEL...RAIL, FUEL
-
100470-767 ...O-RING...O-RING
-
110470-762 ...INJECTOR, FUEL...INJECTOR, FUEL
-
120470-768 ...SEAL...SEAL
-
135507-227 ...BRACKET, MAP SENSOR...BRACKET, MAP SENSOR
-
145507-117 ...SCREW, MACHINE...SCREW, MACHINE
-
150430-073 ...SENSOR, MAP...SENSOR, MAP
-
165507-232 ...O-RING...O-RING
-
175507-229 ...PLATE, ISC VALVE...PLATE, ISC VALVE
-
185507-223 ...COVER...COVER
-
195507-037 ...SCREW, MACHINE...SCREW, MACHINE
-
200487-057 CABLE, THROTTLECABLE, THROTTLE
