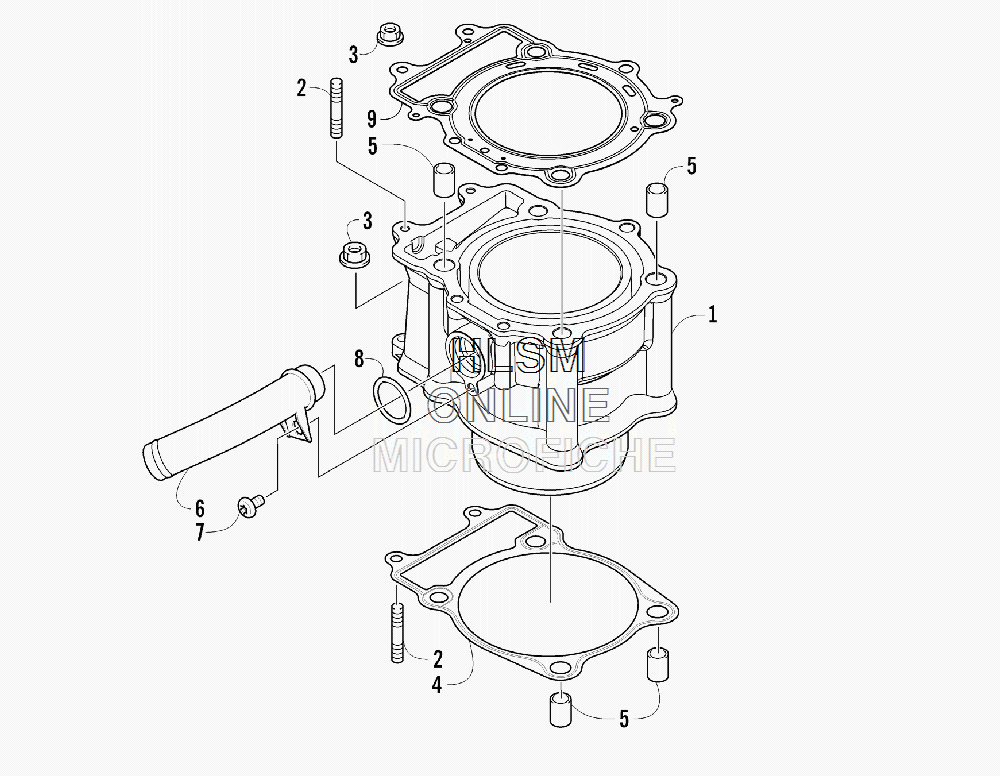

CYLINDER ASSEMBLY для Arctic Cat 550 GT GRAY [A2012BGO1PUSV] - 2012 года выпуска
-
№АртикулНазвание
-
10804-051 CYLINDERCYLINDER
-
20827-002 BOLT, STUDBOLT, STUD
-
38424-604 NUTNUT
-
40830-084 GASKET, BASEGASKET, BASE
-
50829-002 PIN, DOWELPIN, DOWEL
-
60804-047 UNION, COOLANT HOSEUNION, COOLANT HOSE
-
78468-612 SCREW, MACHINESCREW, MACHINE
-
80830-007 O-RINGO-RING
-
90830-097 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
