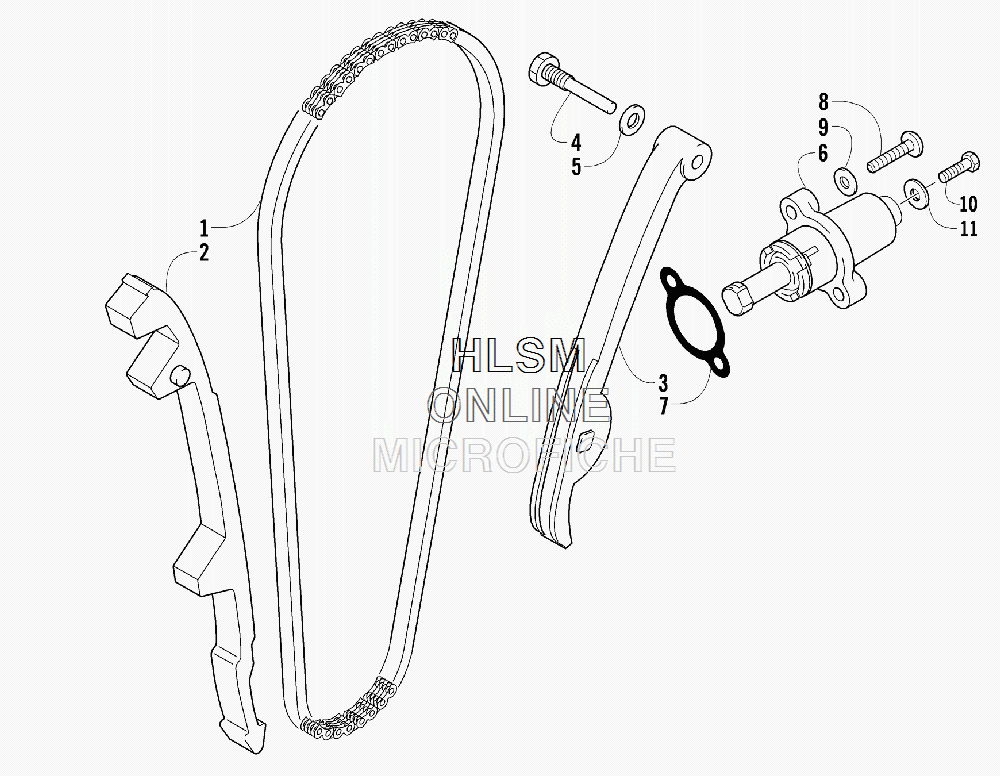

CAM CHAIN ASSEMBLY для Arctic Cat 550 LTD DESERT RED INTERNATIONAL [A2012BLO1POSI] - 2012 года выпуска
-
№АртикулНазвание
-
10810-001 CHAIN, CAMCHAIN, CAM
-
20810-002 GUIDE, CHAINGUIDE, CHAIN
-
30810-003 TENSIONER, CHAINTENSIONER, CHAIN
-
40826-036 SCREW, CAP HH SHOULDER M8 X 1.25 X 40SCREW, CAP HH SHOULDER M8 X 1.25 X 40
-
50830-025 WASHER, CRUSHWASHER, CRUSH
-
60810-004 ADJUSTER, TENSIONER - ASSEMBLYADJUSTER, TENSIONER - ASSEMBLY
-
70830-018 GASKETGASKET
-
88468-625 SCREW, MACH-TSPNH M6X1.0X25 CL8.8 BLKSCREW, MACH-TSPNH M6X1.0X25 CL8.8 BLK
-
90830-107 GASKETGASKET
-
108400-610 SCREW, CAP-HH M6X1X10 8.8 Z & CSCREW, CAP-HH M6X1X10 8.8 Z & C
-
110828-129 WASHERWASHER
