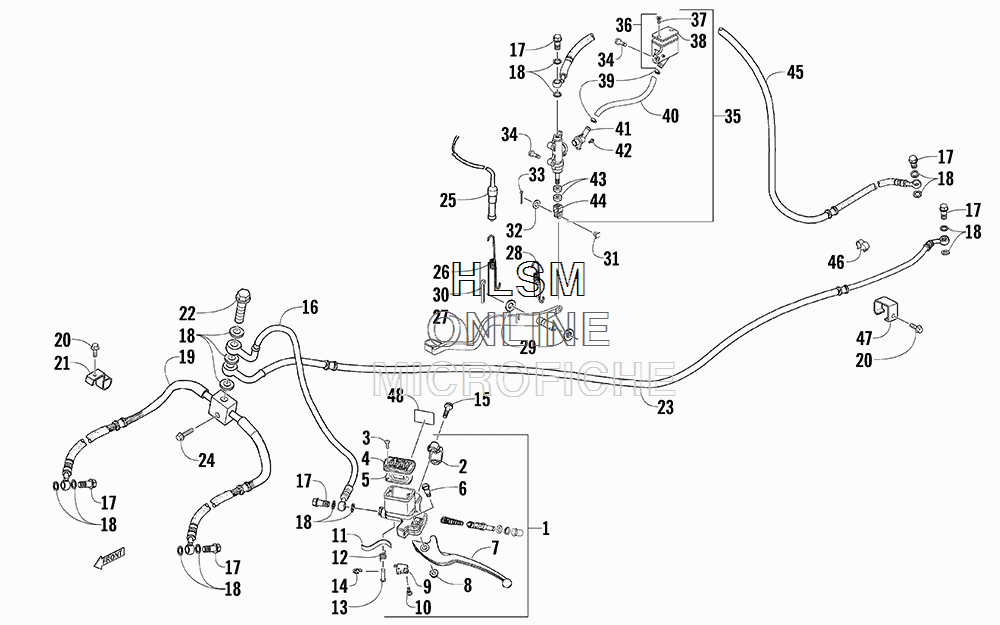

HYDRAULIC BRAKE ASSEMBLY для Arctic Cat ATV 300 [A2012KUF2BUSR] - 2012 года выпуска
-
№АртикулНазвание
-
13304-676 MASTER CYLINDER - ASSEMBLY (INC. 2-5)MASTER CYLINDER - ASSEMBLY (INC. 2-5)
-
23305-983 ...CLAMP, HANDLEBAR...CLAMP, HANDLEBAR
-
33303-318 ...SCREW, MACHINE...SCREW, MACHINE
-
43303-923 ...COVER, MASTER CYLINDER...COVER, MASTER CYLINDER
-
53303-925 ...DIAPHRAGM, MASTER CYLINDER...DIAPHRAGM, MASTER CYLINDER
-
63304-017 SCREW, SHOULDERSCREW, SHOULDER
-
73304-369 LEVER, BRAKELEVER, BRAKE
-
83304-654 NUT, LOCKNUT, LOCK
-
93303-141 SWITCH, BRAKESWITCH, BRAKE
-
103303-321 SCREW, MACHINESCREW, MACHINE
-
113304-442 LOCK, BRAKE LEVERLOCK, BRAKE LEVER
-
123304-678 SPRING, RETURNSPRING, RETURN
-
133304-679 PINPIN
-
143304-680 E-CLIPE-CLIP
-
153304-746 SCREW, CAPSCREW, CAP
-
163304-321 HOSE, BRAKE - JUNCTION BLOCK/MASTER CYLINDERHOSE, BRAKE - JUNCTION BLOCK/MASTER CYLINDER
-
173303-257 BOLT, BANJO-FITTINGBOLT, BANJO-FITTING
-
183303-284 WASHER, CRUSHWASHER, CRUSH
-
193304-320 HOSE, BRAKE W/JUNCTION BLOCKHOSE, BRAKE W/JUNCTION BLOCK
-
203304-553 SCREW, CAPSCREW, CAP
-
213303-919 CLAMP, BRAKE HOSECLAMP, BRAKE HOSE
-
223304-674 BOLT, BANJO-FITTING - DOUBLEBOLT, BANJO-FITTING - DOUBLE
-
233303-914 HOSE, BRAKE - JUNCTION BLOCK/REAR CALIPERHOSE, BRAKE - JUNCTION BLOCK/REAR CALIPER
-
243304-176 SCREW, CAPSCREW, CAP
-
253303-854 SWITCH, BRAKESWITCH, BRAKE
-
263303-855 SPRING, STOPSPRING, STOP
-
273303-926 LEVER, BRAKELEVER, BRAKE
-
283303-929 SPRING, SETSPRING, SET
-
293304-139 WASHERWASHER
-
303304-143 PIN, COTTERPIN, COTTER
-
313303-927 PIN, CLEVISPIN, CLEVIS
-
323304-050 WASHERWASHER
-
333304-141 PIN, COTTERPIN, COTTER
-
343304-551 SCREW, CAPSCREW, CAP
-
353304-306 BRAKE ASSEMBLY - REAR (INC. 36-44)BRAKE ASSEMBLY - REAR (INC. 36-44)
-
363303-896 ...RESERVOIR, BRAKE (INC. 37-38)...RESERVOIR, BRAKE (INC. 37-38)
-
373304-119 ......SCREW, MACHINE......SCREW, MACHINE
-
383304-332 ......COVER, BRAKE RESERVOIR......COVER, BRAKE RESERVOIR
-
393303-895 ...CLAMP, HOSE...CLAMP, HOSE
-
403304-308 ...HOSE, BRAKE...HOSE, BRAKE
-
413304-307 ...CONNECTOR...CONNECTOR
-
423303-321 ...SCREW, MACHINE...SCREW, MACHINE
-
433304-128 ...NUT, JAM...NUT, JAM
-
443303-928 ...ACTUATOR, PUSH ROD...ACTUATOR, PUSH ROD
-
453303-889 HOSE, BRAKE - REAR BRAKE/REAR CALIPERHOSE, BRAKE - REAR BRAKE/REAR CALIPER
-
463304-675 CLIP, RETAININGCLIP, RETAINING
-
473303-891 CLAMP, BRAKE HOSECLAMP, BRAKE HOSE
-
481411-865 DECAL, WARNING - PARKING BRAKEDECAL, WARNING - PARKING BRAKE
