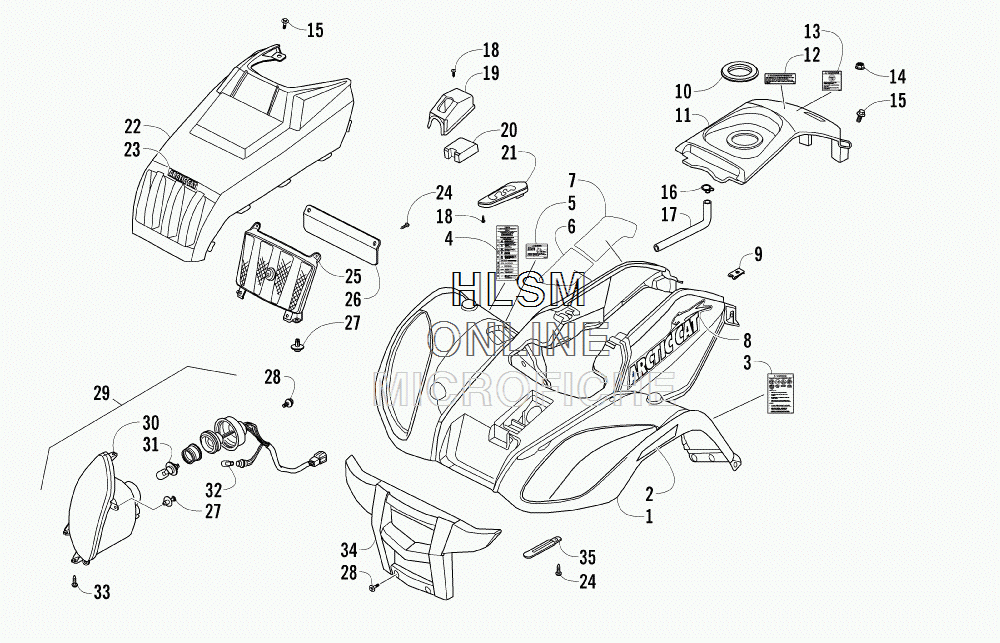

FRONT BODY PANEL AND HEADLIGHT ASSEMBLIES для Arctic Cat 150 2x4 [A2013KYC2BUSG] - 2013 года выпуска
-
№АртикулНазвание
-
13306-769 FENDER, FRONT - GREEN (INC. 2-5)FENDER, FRONT - GREEN (INC. 2-5)
-
21411-180 ...DECAL, REFLECTOR - RIGHT...DECAL, REFLECTOR - RIGHT
-
21411-181 ...DECAL, REFLECTOR - LEFT...DECAL, REFLECTOR - LEFT
-
31411-932 ...DECAL, WARNING - GENERAL...DECAL, WARNING - GENERAL
-
41411-943 ...DECAL, PRE-RIDE INSPECTION...DECAL, PRE-RIDE INSPECTION
-
50411-836 ...DECAL, WARNING - HILL...DECAL, WARNING - HILL
-
63411-060 DECAL, SIDE - FRONT RIGHTDECAL, SIDE - FRONT RIGHT
-
73411-062 DECAL, SIDE - REAR RIGHTDECAL, SIDE - REAR RIGHT
-
83411-009 DECAL, SIDE - LEFTDECAL, SIDE - LEFT
-
93304-061 CLIP, U-NUTCLIP, U-NUT
-
103303-721 GROMMET, COVERGROMMET, COVER
-
113306-771 COVER, GAS TANK - GREEN (INC. 12-13)COVER, GAS TANK - GREEN (INC. 12-13)
-
121411-577 ...DECAL, WARNING - NOT FOR HIGHWAYS...DECAL, WARNING - NOT FOR HIGHWAYS
-
131411-377 ...DECAL, WARNING - AGE...DECAL, WARNING - AGE
-
143304-654 NUT, LOCKNUT, LOCK
-
153304-029 SCREW, MACHINESCREW, MACHINE
-
163303-349 CLAMP, HOSECLAMP, HOSE
-
173305-701 HOSE, FUEL DRAINHOSE, FUEL DRAIN
-
183304-650 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
193305-926 COVER, CVT AIR FILTER ELEMENTCOVER, CVT AIR FILTER ELEMENT
-
203305-096 ELEMENT, CVT AIR FILTERELEMENT, CVT AIR FILTER
-
213305-092 GUIDE, SHIFT HANDLEGUIDE, SHIFT HANDLE
-
223306-765 COVER, FRONT - GREENCOVER, FRONT - GREEN
-
232411-465 DECAL, "ARCTIC CAT"DECAL, "ARCTIC CAT"
-
243304-651 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
253306-682 GRILLE, FRONT - BLACKGRILLE, FRONT - BLACK
-
263305-925 SUPPORT, GRILLESUPPORT, GRILLE
-
273304-057 RIVET, REINSTALLABLERIVET, REINSTALLABLE
-
283304-587 SCREW, MACHINESCREW, MACHINE
-
293303-844 HEADLIGHT - ASSEMBLY - RIGHT (INC. 30-32)HEADLIGHT - ASSEMBLY - RIGHT (INC. 30-32)
-
293303-845 HEADLIGHT - ASSEMBLY - LEFT (INC. 30-32)HEADLIGHT - ASSEMBLY - LEFT (INC. 30-32)
-
303304-643 ...LENS, HEADLIGHT - RIGHT...LENS, HEADLIGHT - RIGHT
-
303304-644 ...LENS, HEADLIGHT - LEFT...LENS, HEADLIGHT - LEFT
-
313303-846 ...BULB, HEADLIGHT...BULB, HEADLIGHT
-
323303-847 ...BULB, RUNNING LIGHT...BULB, RUNNING LIGHT
-
333304-645 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
343306-148 BUMPER, FRONT - BLACKBUMPER, FRONT - BLACK
-
353304-156 CLAMP, ROUTINGCLAMP, ROUTING
