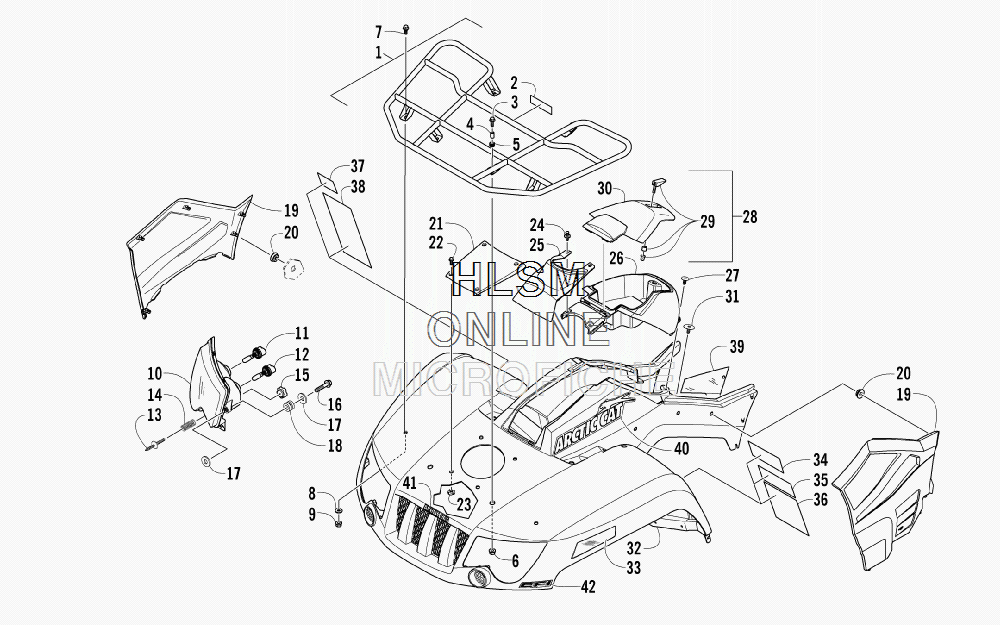

FRONT RACK- BODY PANEL- AND HEADLIGHT ASSEMBLIES для Arctic Cat 500 Core 4x4 - RED [A2013ICK4COSR] (INTERNATIONAL) - 2013 года выпуска
-
№АртикулНазвание
-
15506-056 RACK, FRONT - ASSEMBLY (INC. 2)RACK, FRONT - ASSEMBLY (INC. 2)
-
20411-576 ...DECAL, WARNING - LOAD...DECAL, WARNING - LOAD
-
38410-830 SCREW, CAPSCREW, CAP
-
40423-669 SPACERSPACER
-
50423-465 GROMMETGROMMET
-
68432-802 NUT, LOCKNUT, LOCK
-
70423-654 SCREW, SHOULDERSCREW, SHOULDER
-
88050-222 WASHERWASHER
-
90423-540 NUT, LOCKNUT, LOCK
-
100609-852 HEADLIGHT ASSEMBLY - RIGHT (INC. 11-12)HEADLIGHT ASSEMBLY - RIGHT (INC. 11-12)
-
100609-853 HEADLIGHT ASSEMBLY - LEFT (INC. 11-12)HEADLIGHT ASSEMBLY - LEFT (INC. 11-12)
-
110409-073 ...BULB, HEADLIGHT (899)...BULB, HEADLIGHT (899)
-
120409-045 ...BULB, HEADLIGHT (880)...BULB, HEADLIGHT (880)
-
130423-514 STUD, ADJUSTER - HEADLIGHTSTUD, ADJUSTER - HEADLIGHT
-
140423-522 SPRING, ADJUSTERSPRING, ADJUSTER
-
150423-513 KNOB, ADJUSTERKNOB, ADJUSTER
-
160623-785 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
178050-217 WASHERWASHER
-
180423-447 GROMMETGROMMET
-
192406-302 PANEL, SIDE - LOWER - RIGHTPANEL, SIDE - LOWER - RIGHT
-
192416-133 PANEL, SIDE - LOWER - LEFTPANEL, SIDE - LOWER - LEFT
-
200423-678 GROMMETGROMMET
-
212416-134 COVER, ACCESS - (RED)COVER, ACCESS - (RED)
-
228410-616 SCREW, CAPSCREW, CAP
-
230423-997 T-NUTT-NUT
-
240623-362 RIVET, REINSTALLABLERIVET, REINSTALLABLE
-
251406-972 COVER, STEERING POST - (BLACK)COVER, STEERING POST - (BLACK)
-
262416-240 BOX, STORAGE - (BLACK)BOX, STORAGE - (BLACK)
-
270623-544 CLIP, RETAININGCLIP, RETAINING
-
282506-235 LID, STORAGE BOX W/LATCH (INC. 29-30)LID, STORAGE BOX W/LATCH (INC. 29-30)
-
291406-599 ...LATCH, STORAGE BOX...LATCH, STORAGE BOX
-
301406-862 ...LID, STORAGE BOX...LID, STORAGE BOX
-
310423-101 SCREW, SHOULDERSCREW, SHOULDER
-
324506-392 PANEL, FENDER - ASSEMBLY - (RED) (INC. 33-39)PANEL, FENDER - ASSEMBLY - (RED) (INC. 33-39)
-
331411-078 ...DECAL, REFLECTOR - RIGHT - (AMBER)...DECAL, REFLECTOR - RIGHT - (AMBER)
-
331411-079 ...DECAL, REFLECTOR - LEFT - (AMBER)...DECAL, REFLECTOR - LEFT - (AMBER)
-
341411-574 ...DECAL, WARNING - OFF-ROAD ONLY...DECAL, WARNING - OFF-ROAD ONLY
-
351411-804 ...DECAL, WARNING - AGE...DECAL, WARNING - AGE
-
361411-932 ...DECAL, WARNING - GENERAL...DECAL, WARNING - GENERAL
-
370411-835 ...DECAL, WARNING - TURN/HILL...DECAL, WARNING - TURN/HILL
-
381411-250 ...DECAL, WARNING - REVERSE/PRE-RIDE...DECAL, WARNING - REVERSE/PRE-RIDE
-
390412-394 ...FOIL, PROTECTIVE...FOIL, PROTECTIVE
-
403411-034 DECAL, SIDE - UPPER RIGHTDECAL, SIDE - UPPER RIGHT
-
403411-035 DECAL, SIDE - UPPER LEFTDECAL, SIDE - UPPER LEFT
-
411411-725 DECAL, "ARCTIC CAT" (BLACK OUTLINE)DECAL, "ARCTIC CAT" (BLACK OUTLINE)
-
423411-264 DECAL, "EFI"DECAL, "EFI"
