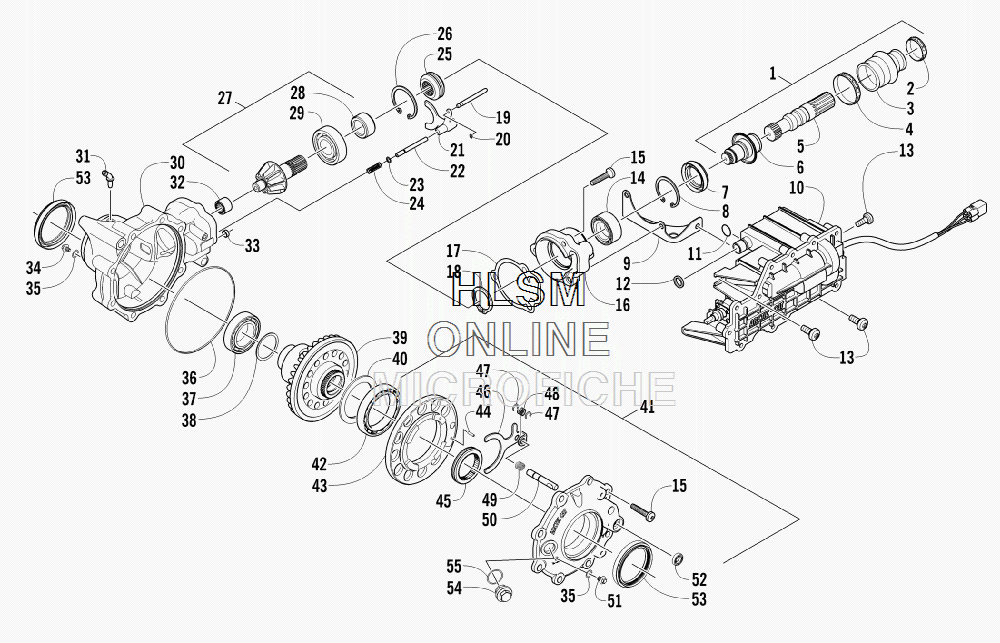

FRONT DRIVE GEARCASE ASSEMBLY для Arctic Cat 550 Core 4x4 - GREEN [A2013ICO4EUSG] - 2013 года выпуска
-
№АртикулНазвание
-
-1502-878 COMPLETE FRONT DRIVE GEARCASE ASSEMBLYCOMPLETE FRONT DRIVE GEARCASE ASSEMBLY
-
11502-083 SHAFT, PROPELLER - ASSEMBLY (INC. 2-6)SHAFT, PROPELLER - ASSEMBLY (INC. 2-6)
-
20423-411 ...CLAMP...CLAMP
-
30402-985 ...BOOT, PROPELLER SHAFT...BOOT, PROPELLER SHAFT
-
40423-393 ...CLAMP...CLAMP
-
51402-045 ...SHAFT, OUTPUT...SHAFT, OUTPUT
-
61502-085 ...SHAFT, INPUT...SHAFT, INPUT
-
71402-011 SEALSEAL
-
80423-423 RING, RETAININGRING, RETAINING
-
91502-237 BRACKET, ACTUATORBRACKET, ACTUATOR
-
101502-909 ACTUATOR (INC. 11)ACTUATOR (INC. 11)
-
111402-981 ...O-RING...O-RING
-
120423-892 O-RINGO-RING
-
130423-396 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
141402-043 BEARINGBEARING
-
150423-118 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
160502-528 HOUSING, PINIONHOUSING, PINION
-
170402-947 GASKET, FLANGEGASKET, FLANGE
-
180423-417 RING, RETAININGRING, RETAINING
-
190402-997 SHAFT, SELECTORSHAFT, SELECTOR
-
200423-402 RING, RETAININGRING, RETAINING
-
210402-998 FORK, SELECTORFORK, SELECTOR
-
220402-417 SHAFT, SHUTTLESHAFT, SHUTTLE
-
230423-147 O-RINGO-RING
-
240402-999 SPRING, RETURNSPRING, RETURN
-
250402-413 COUPLER, DRIVECOUPLER, DRIVE
-
261423-067 RING, RETAININGRING, RETAINING
-
271502-863 GEAR, PINION - ASSEMBLY - 10T (INC. 28-29)GEAR, PINION - ASSEMBLY - 10T (INC. 28-29)
-
281402-977 ...COLLAR, RETAINING...COLLAR, RETAINING
-
290402-327 ...BEARING...BEARING
-
301502-856 HOUSING, GEARCASEHOUSING, GEARCASE
-
311402-980 FITTING, ELBOWFITTING, ELBOW
-
320402-328 BEARINGBEARING
-
330402-411 PIN, DOWELPIN, DOWEL
-
341402-210 PLUG, MAGNETIC (INC. ONE NO. 35)PLUG, MAGNETIC (INC. ONE NO. 35)
-
350423-153 ...O-RING...O-RING
-
360423-149 O-RINGO-RING
-
370402-393 BEARINGBEARING
-
380402-405 SHIM, 41 X 49 X 1.3 MMSHIM, 41 X 49 X 1.3 MM
-
380402-406 SHIM, 41 X 49 X 1.4 MMSHIM, 41 X 49 X 1.4 MM
-
380402-407 SHIM, 41 X 49 X 1.5 MMSHIM, 41 X 49 X 1.5 MM
-
380402-408 SHIM, 41 X 49 X 1.6 MMSHIM, 41 X 49 X 1.6 MM
-
380402-409 SHIM, 41 X 49 X 1.7 MMSHIM, 41 X 49 X 1.7 MM
-
391502-860 GEAR, RING - 36TGEAR, RING - 36T
-
401402-074 SHIM, 61 X 69 X 1.3 MMSHIM, 61 X 69 X 1.3 MM
-
401402-075 SHIM, 61 X 69 X 1.4 MMSHIM, 61 X 69 X 1.4 MM
-
401402-076 SHIM, 61 X 69 X 1.5 MMSHIM, 61 X 69 X 1.5 MM
-
401402-077 SHIM, 61 X 69 X 1.6 MMSHIM, 61 X 69 X 1.6 MM
-
401402-078 SHIM, 61 X 69 X 1.7 MMSHIM, 61 X 69 X 1.7 MM
-
411502-895 COVER, GEARCASE (INC. ONE NO. 35, 42-52, AND ONE NO. 53)COVER, GEARCASE (INC. ONE NO. 35, 42-52, AND ONE NO. 53)
-
421402-053 ...BEARING...BEARING
-
430502-413 ...FLANGE, BEARING...FLANGE, BEARING
-
441402-079 ...PIN, PARALLEL...PIN, PARALLEL
-
451402-042 ...COLLAR, SLIDING...COLLAR, SLIDING
-
461402-054 ...FORK...FORK
-
471402-058 ...RING, RETAINING...RING, RETAINING
-
481402-057 ...SPRING...SPRING
-
491402-063 ...SPRING...SPRING
-
501402-656 ...SHAFT, LOCK...SHAFT, LOCK
-
511402-211 ...PLUG, OIL LEVEL (INC. ONE NO. 35)...PLUG, OIL LEVEL (INC. ONE NO. 35)
-
521402-056 ...SEAL...SEAL
-
531402-950 ...SEAL...SEAL
-
540402-333 PLUG, FILL (INC. 55)PLUG, FILL (INC. 55)
-
550423-154 ...O-RING...O-RING
