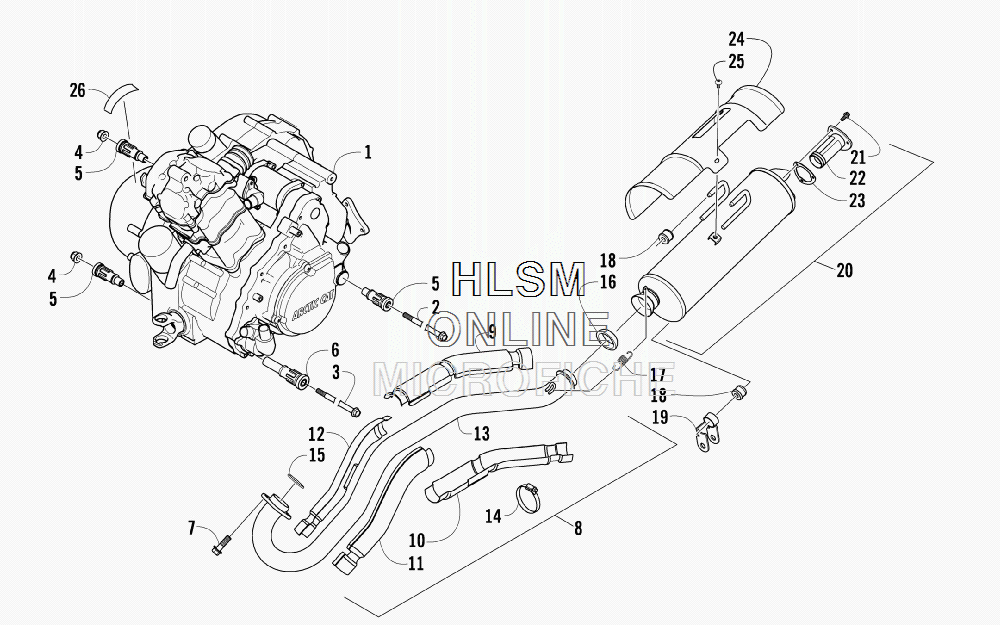

ENGINE AND EXHAUST для Arctic Cat 700 XT 4x4 - STEEL BLUE [A2013AGT1PUSV] - 2013 года выпуска
-
№АртикулНазвание
-
10800-129 ENGINE, A700OENGINE, A700O
-
20423-451 SCREW, CAPSCREW, CAP
-
30423-405 SCREW, CAPSCREW, CAP
-
48428-002 NUT, LOCKNUT, LOCK
-
50801-129 MOUNT, RUBBER - ENGINEMOUNT, RUBBER - ENGINE
-
60801-122 MOUNT, RUBBER - ENGINEMOUNT, RUBBER - ENGINE
-
78408-820 SCREW, CAPSCREW, CAP
-
80512-345 PIPE, EXHAUST - ASSEMBLY (INC. 9-14)PIPE, EXHAUST - ASSEMBLY (INC. 9-14)
-
90412-350 ...SHIELD, EXHAUST PIPE - OUTER - REAR...SHIELD, EXHAUST PIPE - OUTER - REAR
-
100412-339 ...SHIELD, EXHAUST PIPE - INNER - REAR...SHIELD, EXHAUST PIPE - INNER - REAR
-
110412-349 ...SHIELD, EXHAUST PIPE - INNER - FRONT...SHIELD, EXHAUST PIPE - INNER - FRONT
-
120412-348 ...SHIELD, EXHAUST PIPE - OUTER - FRONT...SHIELD, EXHAUST PIPE - OUTER - FRONT
-
130512-344 ...PIPE, EXHAUST...PIPE, EXHAUST
-
140423-317 LCLAMPLCLAMP
-
150412-338 GASKET, EXHAUSTGASKET, EXHAUST
-
160412-375 SEAL, EXHAUSTSEAL, EXHAUST
-
170612-668 SPRING, EXTENSIONSPRING, EXTENSION
-
180412-577 BUSHINGBUSHING
-
191506-732 CHANNEL, MUFFLER SUPPORTCHANNEL, MUFFLER SUPPORT
-
200512-355 MUFFLER - ASSEMBLY (INC. 21-23)MUFFLER - ASSEMBLY (INC. 21-23)
-
218408-616 ...SCREW, CAP...SCREW, CAP
-
220512-219 ...ARRESTER, SPARK - ASSEMBLY...ARRESTER, SPARK - ASSEMBLY
-
230412-313 ...GASKET, SPARK ARRESTER...GASKET, SPARK ARRESTER
-
240412-373 COVER, MUFFLERCOVER, MUFFLER
-
258477-610 SCREW, MACHINESCREW, MACHINE
-
260411-426 DECAL, WARNING - CLUTCH COVERDECAL, WARNING - CLUTCH COVER
