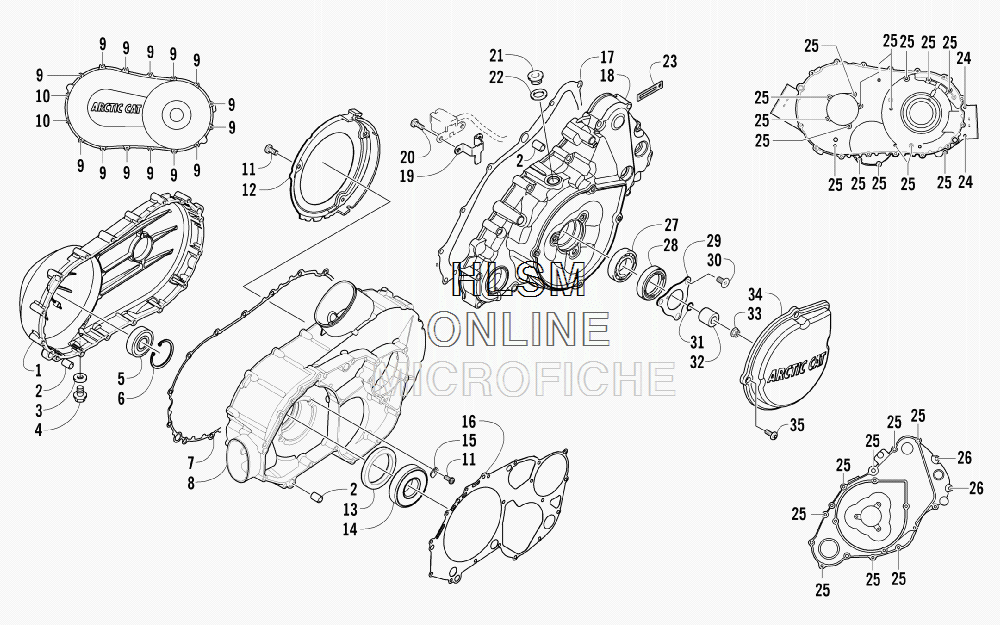

CLUTCH/V-BELT/MAGNETO COVER ASSEMBLY для Arctic Cat Prowler 550 XT 4x4 [U2013P2O4EOSS] (INTERNATIONAL) - 2013 года выпуска
-
№АртикулНазвание
-
10806-088 COVER, V-BELTCOVER, V-BELT
-
20829-002 DOWEL, SPLIT, 13 X 18DOWEL, SPLIT, 13 X 18
-
30830-013 WASHER, CRUSHWASHER, CRUSH
-
48408-812 SCREW, CAPSCREW, CAP
-
50832-060 BEARINGBEARING
-
60831-078 RING, RETAININGRING, RETAINING
-
70830-174 GASKET, V-BELT COVERGASKET, V-BELT COVER
-
80806-091 COVER, CLUTCHCOVER, CLUTCH
-
98468-645 SCREW, MACH-TSPNH M6X1.0X45 CL8.8 BLACKSCREW, MACH-TSPNH M6X1.0X45 CL8.8 BLACK
-
108468-655 SCREW, MACH-TSPNH M6X1.0X55 CL8.8 BLACKSCREW, MACH-TSPNH M6X1.0X55 CL8.8 BLACK
-
110826-029 SCREW, MACH-TSPH M6 X1X12 W/ THREAD LOCKSCREW, MACH-TSPH M6 X1X12 W/ THREAD LOCK
-
120806-048 PLATE, AIR INTAKEPLATE, AIR INTAKE
-
130830-188 SEALSEAL
-
140832-009 BEARINGBEARING
-
150822-010 RETAINER, BEARINGRETAINER, BEARING
-
160830-116 GASKET, CLUTCH COVERGASKET, CLUTCH COVER
-
170830-128 GASKET, MAGNETO COVERGASKET, MAGNETO COVER
-
180806-127 COVER, MAGNETO - ASSEMBLY (INC. 19)COVER, MAGNETO - ASSEMBLY (INC. 19)
-
190802-071 ...CLAMP, ROUTING...CLAMP, ROUTING
-
208470-510 SCREW,MACH-TSPNH M5X1.0X10 CL8.8 Z & YSCREW,MACH-TSPNH M5X1.0X10 CL8.8 Z & Y
-
210826-155 PLUGPLUG
-
220830-015 WASHER, CRUSHWASHER, CRUSH
-
231623-984 CLAMP,WIRE - 76.14MM LG W/6.25 HOLECLAMP,WIRE - 76.14MM LG W/6.25 HOLE
-
248468-675 SCREW,MACH-TSPNH M6X1.0X75 CL8.8 BLACKSCREW,MACH-TSPNH M6X1.0X75 CL8.8 BLACK
-
258468-640 SCREW,MACH-TSPNH M6X1.0X40 CL8.8 BLACKSCREW,MACH-TSPNH M6X1.0X40 CL8.8 BLACK
-
268468-625 SCREW,MACH-TSPNH M6X1.0X25 CL8.8 BLACKSCREW,MACH-TSPNH M6X1.0X25 CL8.8 BLACK
-
271602-981 BEARING,25MMX47MMX8MM-PEERBEARING,25MMX47MMX8MM-PEER
-
280830-158 SEAL,OIL (25X48X7)SEAL,OIL (25X48X7)
-
290805-008 RETAINER, SEALRETAINER, SEAL
-
300826-031 SCREW,MACH-TSFH M6 X1X12 W/ THREAD LOCKSCREW,MACH-TSFH M6 X1X12 W/ THREAD LOCK
-
310830-108 O-RINGO-RING
-
320820-061 BUSHINGBUSHING
-
330827-008 NUTNUT
-
340820-062 COVER, MAGNETOCOVER, MAGNETO
-
358468-616 SCREW,MACH-TSPNH M6X1.0X16 CL8.8 BLACKSCREW,MACH-TSPNH M6X1.0X16 CL8.8 BLACK
