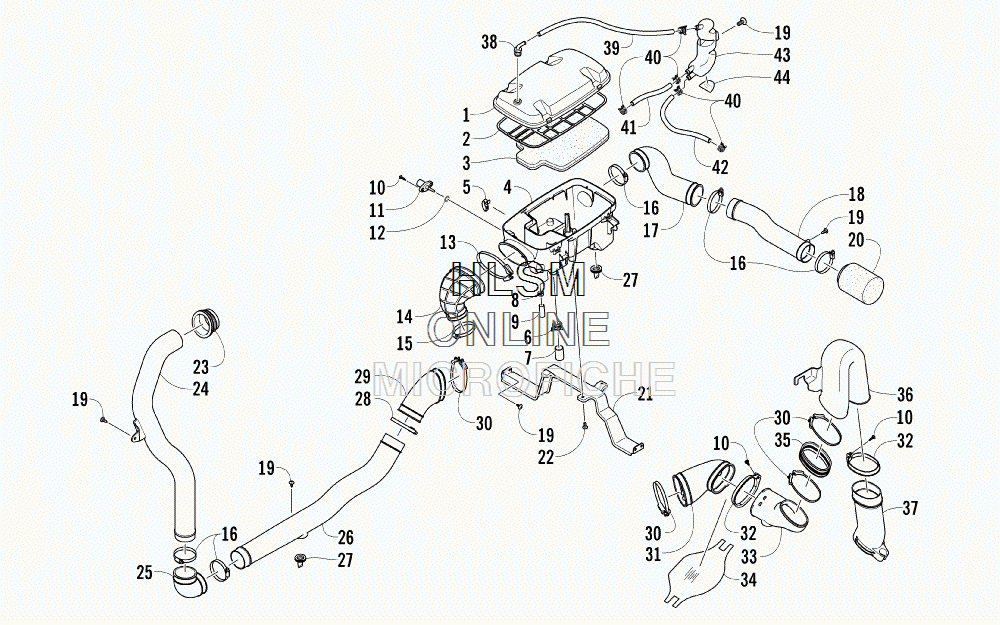

AIR INTAKE ASSEMBLY для Arctic Cat Prowler XTZ [U2013P4W1PUSU] - 2013 года выпуска
-
№АртикулНазвание
-
10470-861 COVER, AIR INTAKECOVER, AIR INTAKE
-
20470-560 SCREEN, AIR FILTERSCREEN, AIR FILTER
-
30470-558 FILTER, AIRFILTER, AIR
-
40470-728 HOUSING, AIR INTAKEHOUSING, AIR INTAKE
-
50423-455 CLIP, SPRINGCLIP, SPRING
-
61623-287 CLAMP, HOSECLAMP, HOSE
-
70423-766 CAP, DRAINCAP, DRAIN
-
80610-563 CLAMP, HOSECLAMP, HOSE
-
90470-863 VALVE, DRAINVALVE, DRAIN
-
100423-342 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
110430-055 SENSOR, AIR TEMPERATURE (INC. 12)SENSOR, AIR TEMPERATURE (INC. 12)
-
125507-224 ...O-RING...O-RING
-
130423-554 CLAMPCLAMP
-
140413-225 BOOT, INTAKEBOOT, INTAKE
-
150423-066 CLAMPCLAMP
-
160423-019 CLAMPCLAMP
-
170413-232 DUCT, INTAKEDUCT, INTAKE
-
180413-219 DUCT, INTAKEDUCT, INTAKE
-
190623-784 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
200470-834 FILTER, INTAKEFILTER, INTAKE
-
212516-166 BRACKET, SUPPORTBRACKET, SUPPORT
-
228476-616 SCREW, MACHINESCREW, MACHINE
-
232416-088 BOOT, AIR-INBOOT, AIR-IN
-
240413-237 DUCT, AIR-INDUCT, AIR-IN
-
250413-098 BOOT, AIR-INBOOT, AIR-IN
-
260413-236 DUCT, AIR-INDUCT, AIR-IN
-
270470-442 VALVE, DRAINVALVE, DRAIN
-
280423-018 CLAMPCLAMP
-
290413-233 BOOT, AIR-INBOOT, AIR-IN
-
300423-730 CLAMPCLAMP
-
310413-234 BOOT, AIR-OUTBOOT, AIR-OUT
-
320423-550 CLAMPCLAMP
-
330413-247 DUCT, AIR-OUTDUCT, AIR-OUT
-
340412-576 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
350413-248 BOOT, AIR-OUTBOOT, AIR-OUT
-
360413-235 DUCT, AIR-OUTDUCT, AIR-OUT
-
370413-226 DUCT, AIR-OUTDUCT, AIR-OUT
-
380470-881 FITTING, ELBOWFITTING, ELBOW
-
390410-187 HOSE, VENTHOSE, VENT
-
401623-281 CLAMP, HOSECLAMP, HOSE
-
410410-221 HOSE, VENTHOSE, VENT
-
420410-220 HOSE, VENTHOSE, VENT
-
430470-857 SEPARATOR, OILSEPARATOR, OIL
-
441441-822 FOIL, PROTECTIVEFOIL, PROTECTIVE
