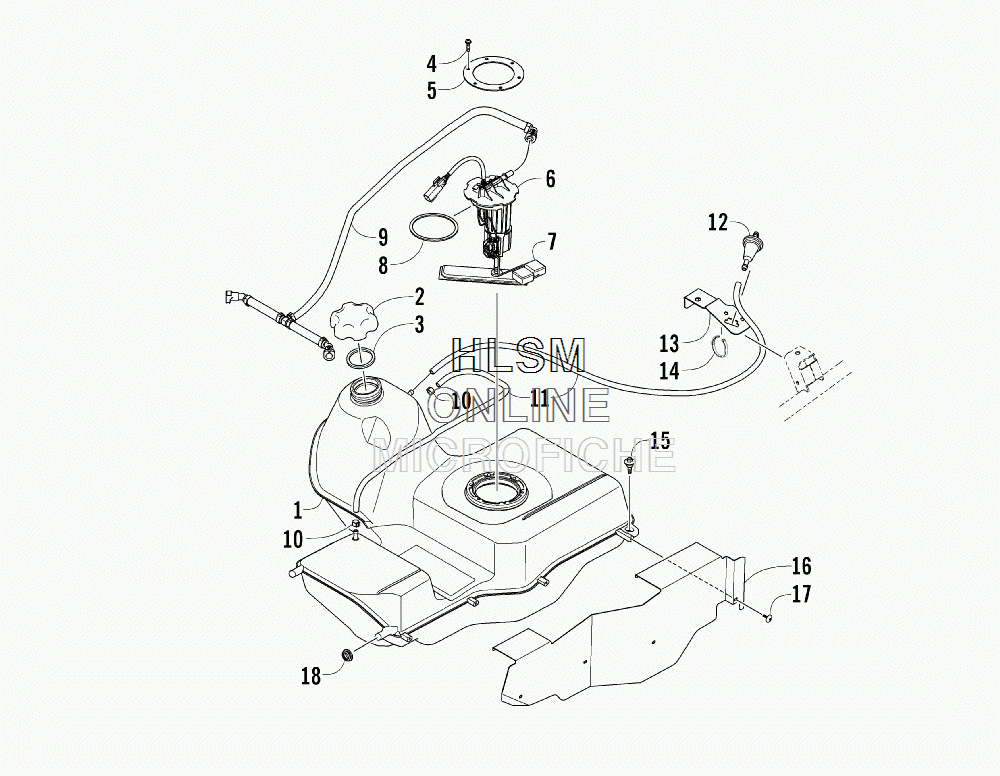

GAS TANK ASSEMBLY для Arctic Cat TRV 1000 Limited 4x4 [A2013TCW1POSS] (INTERATIONAL) - 2013 года выпуска
-
№АртикулНазвание
-
10570-308 TANK, GAS - ASSEMBLY (INC. 2-5)TANK, GAS - ASSEMBLY (INC. 2-5)
-
20470-438 ...CAP, GAS TANK (INC. 3)...CAP, GAS TANK (INC. 3)
-
30109-733 ......GASKET, GAS TANK CAP......GASKET, GAS TANK CAP
-
40423-898 ...SCREW, SELF-TAPPING...SCREW, SELF-TAPPING
-
52670-042 ...PLATE, RETAINING...PLATE, RETAINING
-
60570-323 PUMP, FUEL - ASSEMBLY (INC. 7-8)PUMP, FUEL - ASSEMBLY (INC. 7-8)
-
72670-235 ...FLOAT...FLOAT
-
80470-838 ...SEAL...SEAL
-
90570-282 HOSE, FUEL - ASSEMBLYHOSE, FUEL - ASSEMBLY
-
100423-688 CLAMP, HOSECLAMP, HOSE
-
110410-070 HOSE, GASLINE - 25 FTHOSE, GASLINE - 25 FT
-
120470-988 FILTER, IN-LINEFILTER, IN-LINE
-
130470-979 BRACKET, MOUNTING - FILTERBRACKET, MOUNTING - FILTER
-
140123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
-
150423-732 SCREW, SHOULDERSCREW, SHOULDER
-
160470-822 SHIELD, HEATSHIELD, HEAT
-
170623-797 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
180423-460 GROMMETGROMMET
