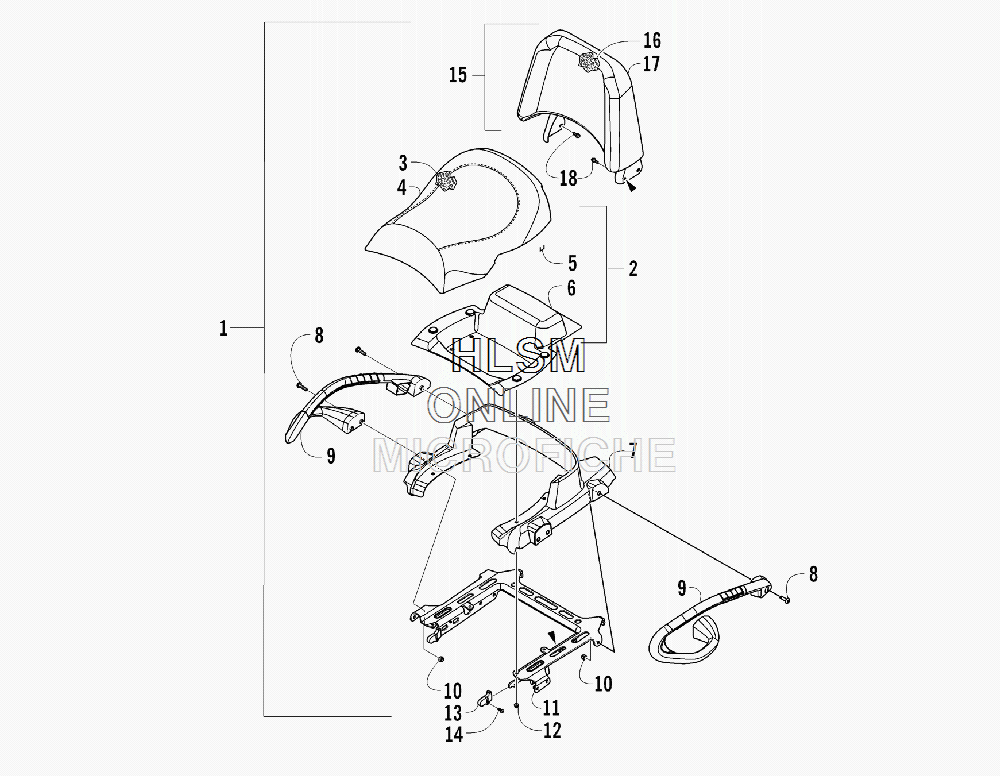

PASSENGER SEAT AND BACKREST ASSEMBLY для Arctic Cat TRV 400 Core 4x4 [A2013TBG4BOSP] (INTERNATIONAL) - 2013 года выпуска
-
№АртикулНазвание
-
12516-896 SEAT, PASSENGER - ASSEMBLY (INC. 2-14)SEAT, PASSENGER - ASSEMBLY (INC. 2-14)
-
22506-064 ...SEAT, PASSENGER - SUB-ASSEMBLY (INC. 3-6)...SEAT, PASSENGER - SUB-ASSEMBLY (INC. 3-6)
-
31506-816 ......FOAM, SEAT - PASSENGER......FOAM, SEAT - PASSENGER
-
41506-815 ......COVER, SEAT - PASSENGER......COVER, SEAT - PASSENGER
-
50624-263 ......STAPLE......STAPLE
-
62406-110 ......BASE, SEAT - INNER......BASE, SEAT - INNER
-
72406-044 ...BASE, SEAT - PASSENGER...BASE, SEAT - PASSENGER
-
88468-830 ...SCREW, MACHINE...SCREW, MACHINE
-
92406-834 ...HANDHOLD, PASSENGER - RIGHT...HANDHOLD, PASSENGER - RIGHT
-
92406-835 ...HANDHOLD, PASSENGER - LEFT...HANDHOLD, PASSENGER - LEFT
-
108432-802 ...NUT, LOCK...NUT, LOCK
-
112516-040 ...BRACKET, SEAT SUPPORT - ASSEMBLY...BRACKET, SEAT SUPPORT - ASSEMBLY
-
128427-602 ...NUT, LOCK...NUT, LOCK
-
132406-895 ...END CAP, SEAT SUPPORT...END CAP, SEAT SUPPORT
-
140423-538 ...SCREW, SELF-TAPPING...SCREW, SELF-TAPPING
-
152516-020 BACKREST ASSEMBLY (INC. 16-17)BACKREST ASSEMBLY (INC. 16-17)
-
162516-018 ...FOAM, BACKREST...FOAM, BACKREST
-
172516-141 ...COVER, BACKREST...COVER, BACKREST
-
188408-816 SCREW, CAPSCREW, CAP
