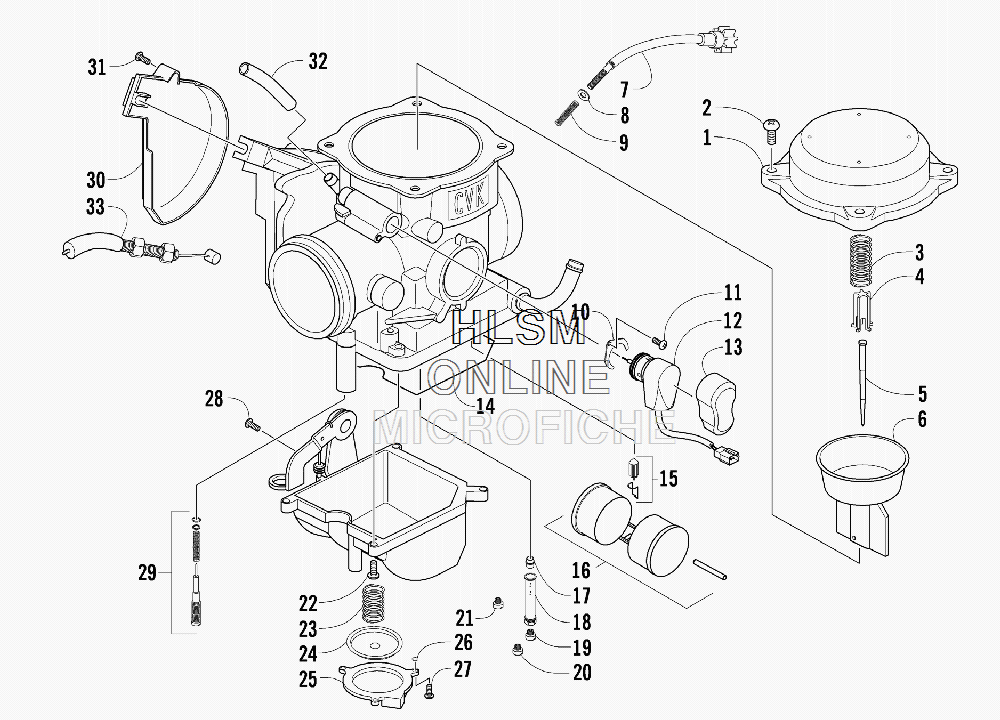

CARBURETOR для Arctic Cat TRV 400 Core 4x4 [A2013TBG4BUSP] - 2013 года выпуска
-
№АртикулНазвание
-
-0470-859 COMPLETE CARBURETOR ASSEMBLYCOMPLETE CARBURETOR ASSEMBLY
-
15507-001 COVER, TOPCOVER, TOP
-
25507-002 SCREW, MACHINESCREW, MACHINE
-
35507-066 SPRINGSPRING
-
45507-005 SEAT, SPRINGSEAT, SPRING
-
55507-201 JET NEEDLEJET NEEDLE
-
65507-099 PISTON, VACUUMPISTON, VACUUM
-
75507-027 SCREW, IDLE ADJUSTSCREW, IDLE ADJUST
-
85507-028 WASHERWASHER
-
95507-029 SPRINGSPRING
-
105507-115 PLATEPLATE
-
115507-117 SCREW, MACHINESCREW, MACHINE
-
125507-204 CHOKE, ELECTRICCHOKE, ELECTRIC
-
135507-114 COVER, ELECTRIC CHOKECOVER, ELECTRIC CHOKE
-
145507-067 O-RING, FLOAT CHAMBERO-RING, FLOAT CHAMBER
-
155507-183 VALVE, FLOAT - SETVALVE, FLOAT - SET
-
165507-039 FLOAT SETFLOAT SET
-
175507-007 NEEDLE JETNEEDLE JET
-
185507-047 HOLDER, NEEDLE JETHOLDER, NEEDLE JET
-
195507-075 MAIN JET - 132 (STD)MAIN JET - 132 (STD)
-
195507-072 MAIN JET - 125 (OPT)MAIN JET - 125 (OPT)
-
195507-073 MAIN JET - 128 (OPT)MAIN JET - 128 (OPT)
-
195507-074 MAIN JET - 130 (OPT)MAIN JET - 130 (OPT)
-
195507-057 MAIN JET - 135 (OPT)MAIN JET - 135 (OPT)
-
195507-076 MAIN JET - 138 (OPT)MAIN JET - 138 (OPT)
-
195507-043 MAIN JET - 142 (OPT)MAIN JET - 142 (OPT)
-
195507-042 MAIN JET - 145 (OPT)MAIN JET - 145 (OPT)
-
195507-041 MAIN JET - 148 (OPT)MAIN JET - 148 (OPT)
-
195507-009 MAIN JET - 150 (OPT)MAIN JET - 150 (OPT)
-
195507-077 MAIN JET - 152 (OPT)MAIN JET - 152 (OPT)
-
195507-078 MAIN JET - 155 (OPT)MAIN JET - 155 (OPT)
-
205507-247 STARTER JET - 80STARTER JET - 80
-
215507-070 SLOW JET - 40SLOW JET - 40
-
225507-017 SCREW, MACHINESCREW, MACHINE
-
235507-211 SPRINGSPRING
-
245507-197 DIAPHRAGM ASSEMBLYDIAPHRAGM ASSEMBLY
-
255507-198 HOUSING, PUMPHOUSING, PUMP
-
265507-034 U-RINGU-RING
-
275507-035 SCREW, MACHINESCREW, MACHINE
-
285507-050 SCREW, DRAINSCREW, DRAIN
-
295507-213 SCREW, PILOT - SETSCREW, PILOT - SET
-
305507-036 COVERCOVER
-
315507-037 SCREW, MACHINESCREW, MACHINE
-
320410-070 HOSE, VENT - 25 FTHOSE, VENT - 25 FT
-
330487-049 CABLE, THROTTLECABLE, THROTTLE
