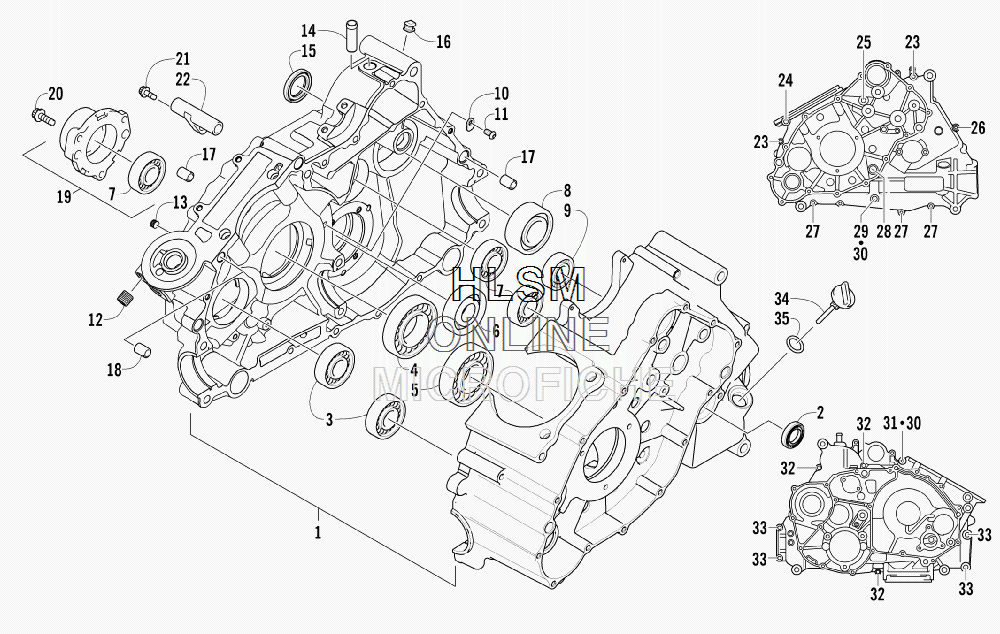

CRANKCASE ASSEMBLY для Arctic Cat TRV 700 Limited 4x4 [A2013TCT1PUSQ] - 2013 года выпуска
-
№АртикулНазвание
-
10801-151 CRANKCASE ASSEMBLY (INC. 2-15)CRANKCASE ASSEMBLY (INC. 2-15)
-
20822-052 ...SEAL, COUNTERSHAFT...SEAL, COUNTERSHAFT
-
30832-044 ...BEARING...BEARING
-
40832-042 ...BEARING, BALL-S/R 40X80X18...BEARING, BALL-S/R 40X80X18
-
50832-043 ...BEARING, BALL-S/R 35X80X21...BEARING, BALL-S/R 35X80X21
-
60832-077 ...BEARING, 6305-RADIAL (INA)...BEARING, 6305-RADIAL (INA)
-
70832-050 ...BEARING, CONRAD-6304...BEARING, CONRAD-6304
-
80832-048 ...BEARING, DRIVESHAFT...BEARING, DRIVESHAFT
-
90832-049 ...BEARING, CONRAD-6204...BEARING, CONRAD-6204
-
100822-010 ...RETAINER, BEARING...RETAINER, BEARING
-
110826-100 ...SCREW, CAP-HSBH M6_1X12 W/ THREAD LOCK...SCREW, CAP-HSBH M6_1X12 W/ THREAD LOCK
-
120812-064 ...PLUG, 1/4 NPT...PLUG, 1/4 NPT
-
130801-002 ...PLUG...PLUG
-
140801-028 ...PIPE, BREATHER...PIPE, BREATHER
-
150830-035 ...SEAL, DRIVESHAFT...SEAL, DRIVESHAFT
-
160830-217 GROMMETGROMMET
-
170829-002 DOWEL, SPLIT, 13 X 18DOWEL, SPLIT, 13 X 18
-
180829-003 DOWEL, SPLIT, 11 X 16DOWEL, SPLIT, 11 X 16
-
190801-029 HOUSING, SECONDARY SHAFT(INC. ONE NO. 7)HOUSING, SECONDARY SHAFT(INC. ONE NO. 7)
-
200826-105 SCREW,CAP-HFH M8 X1.25X35 W/THD LOCSCREW,CAP-HFH M8 X1.25X35 W/THD LOC
-
210826-038 SCREW,MACH-TSPH M6 X1X12 W/ THD LOCKSCREW,MACH-TSPH M6 X1X12 W/ THD LOCK
-
220801-069 PIPE, BREATHERPIPE, BREATHER
-
238468-675 SCREW,MACH-TSPNH M6X1.0X75 CL8.8 BLACKSCREW,MACH-TSPNH M6X1.0X75 CL8.8 BLACK
-
240826-019 SCREW,CAP HFH M8 X 1.25 X 140SCREW,CAP HFH M8 X 1.25 X 140
-
258468-680 SCREW,MACH-TSPNH M6X1.0X80 CL8.8 BLACKSCREW,MACH-TSPNH M6X1.0X80 CL8.8 BLACK
-
268468-695 SCREW,MACH-TSPNH M6X1.0X95 CL8.8 BLACKSCREW,MACH-TSPNH M6X1.0X95 CL8.8 BLACK
-
278468-645 SCREW,MACH-TSPNH M6X1.0X45 CL8.8 BLACKSCREW,MACH-TSPNH M6X1.0X45 CL8.8 BLACK
-
280826-017 SCREW,CAP HFH M8 X 1.25 X 105SCREW,CAP HFH M8 X 1.25 X 105
-
298412-860 SCREW,CAP-HFH M8X1.25X60 CL8.8 RIE SILSCREW,CAP-HFH M8X1.25X60 CL8.8 RIE SIL
-
300830-008 GASKET, COPPER 8X14X1GASKET, COPPER 8X14X1
-
310826-018 SCREW,CAP HFH M8 X 1.25 X 125SCREW,CAP HFH M8 X 1.25 X 125
-
328468-655 SCREW,MACH-TSPNH M6X1.0X55 CL8.8 BLACKSCREW,MACH-TSPNH M6X1.0X55 CL8.8 BLACK
-
338412-850 SCREW,CAP-HFH M8X1.25X50 CL8.8 RIE SILSCREW,CAP-HFH M8X1.25X50 CL8.8 RIE SIL
-
340801-179 STICK, OIL LEVELSTICK, OIL LEVEL
-
350830-010 O-RINGO-RING
