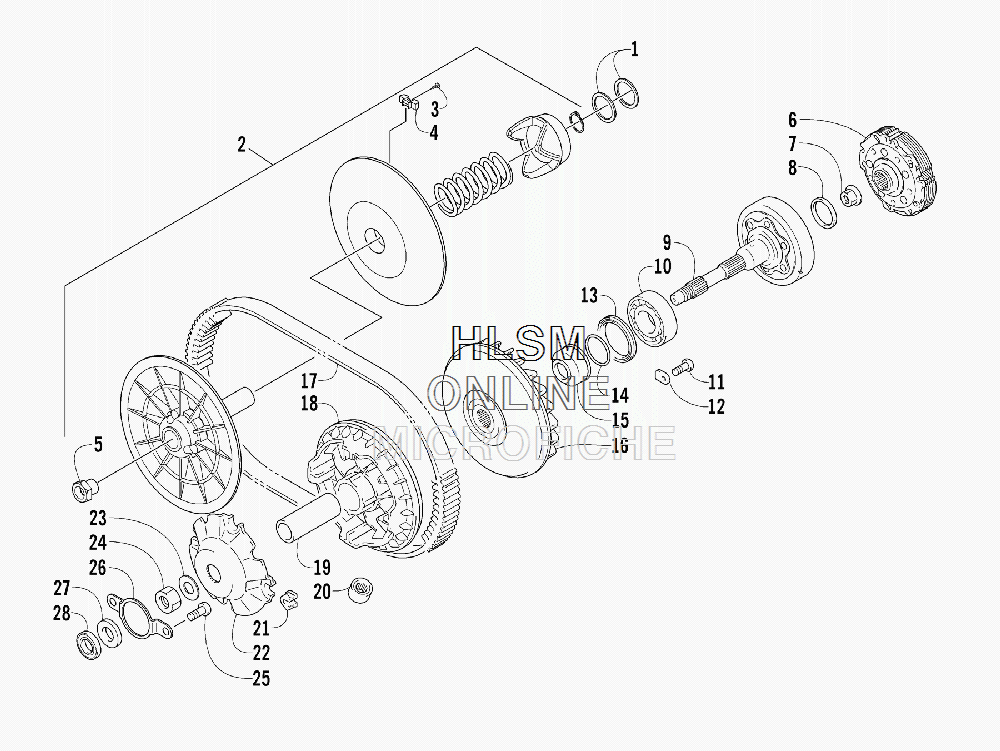

TRANSMISSION ASSEMBLY для Arctic Cat Wildcat 1000 - BLACK [U2013W2W1PUSQ] - 2013 года выпуска
-
№АртикулНазвание
-
10828-076 SHIM, 25 X 30 X 0.90 MMSHIM, 25 X 30 X 0.90 MM
-
20823-355 PULLEY, DRIVEN - ASSEMBLY (INC. 3-5)PULLEY, DRIVEN - ASSEMBLY (INC. 3-5)
-
30823-177 ...SCREW, MACHINE...SCREW, MACHINE
-
40823-176 ...SHOE, CAM...SHOE, CAM
-
50823-178 ...NUT, DRIVEN PULLEY...NUT, DRIVEN PULLEY
-
60823-310 CLUTCH, CENTRIFUGAL - 6 PLATECLUTCH, CENTRIFUGAL - 6 PLATE
-
70827-011 NUTNUT
-
80830-189 SEAL, CLUTCH HOUSING - LEFTSEAL, CLUTCH HOUSING - LEFT
-
90821-002 HOUSING, CLUTCHHOUSING, CLUTCH
-
100832-009 BEARINGBEARING
-
110826-029 SCREW, MACH-TSPH M6 X1X12 W/ THD LOCKSCREW, MACH-TSPH M6 X1X12 W/ THD LOCK
-
120822-010 RETAINER, BEARINGRETAINER, BEARING
-
130830-188 SEAL, CLUTCH HOUSING - RIGHTSEAL, CLUTCH HOUSING - RIGHT
-
140470-531 O-RINGO-RING
-
150823-015 SPACER, FIXED DRIVE FACESPACER, FIXED DRIVE FACE
-
160823-272 FACE, FIXED DRIVEFACE, FIXED DRIVE
-
170823-231 BELT, DRIVEBELT, DRIVE
-
180823-273 FACE, MOVABLE DRIVEFACE, MOVABLE DRIVE
-
190823-271 SPACER, MOVABLE DRIVE FACESPACER, MOVABLE DRIVE FACE
-
200823-295 ROLLER, MOVABLE DRIVE FACEROLLER, MOVABLE DRIVE FACE
-
210823-277 DAMPER, MOVABLE DRIVE FACEDAMPER, MOVABLE DRIVE FACE
-
220823-276 PLATE, MOVABLE DRIVE FACEPLATE, MOVABLE DRIVE FACE
-
230828-106 WASHERWASHER
-
240827-010 NUTNUT
-
250826-031 SCREW, MACH-TSFH M6 X1X12 W/ THD LOCKSCREW, MACH-TSFH M6 X1X12 W/ THD LOCK
-
260823-020 RETAINER, BEARINGRETAINER, BEARING
-
270806-128 SPACERSPACER
-
280832-060 BEARING, BALL-S/R 17X47X14BEARING, BALL-S/R 17X47X14
