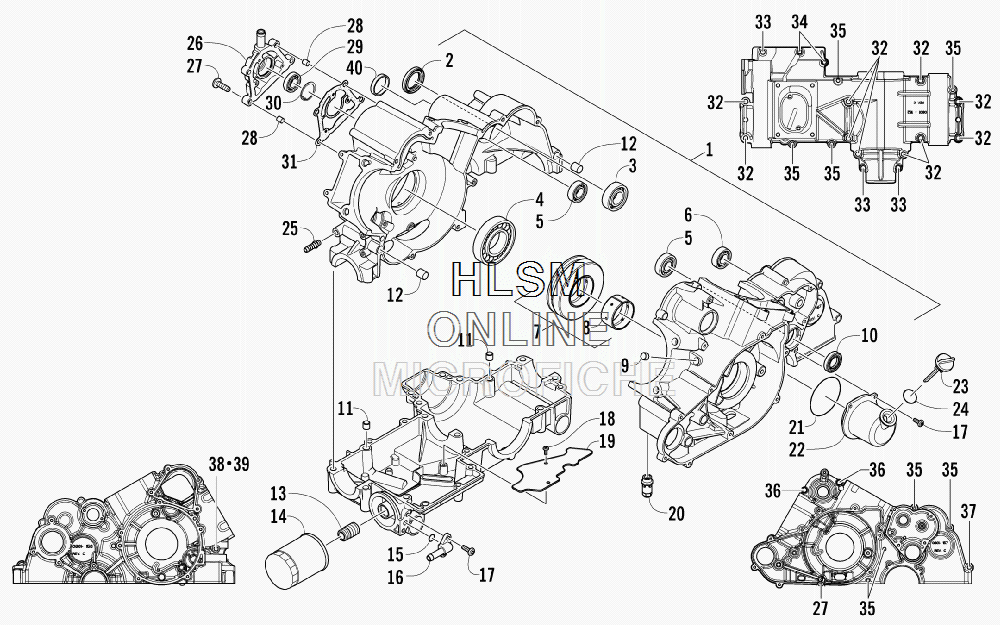

CRANKCASE ASSEMBLY для Arctic Cat Wildcat 1000 - ORANGE [U2013W3W1POSY] (INTERNATIONAL) (LATE MODEL) - 2013 года выпуска
-
№АртикулНазвание
-
10801-211 CRANKCASE - ASSEMBLY (INC. 2-13)CRANKCASE - ASSEMBLY (INC. 2-13)
-
20830-035 ...SEAL, DRIVESHAFT...SEAL, DRIVESHAFT
-
30832-048 ...BEARING, DRIVESHAFT...BEARING, DRIVESHAFT
-
40832-042 ...BEARING, BALL-S/R 40X80X18...BEARING, BALL-S/R 40X80X18
-
50832-050 ...BEARING, CONRAD-6304...BEARING, CONRAD-6304
-
60832-049 ...BEARING, CONRAD-6204...BEARING, CONRAD-6204
-
70832-055 ...BEARING - ASSEMBLY (INC. 8)...BEARING - ASSEMBLY (INC. 8)
-
80832-057 ......BEARING......BEARING
-
90801-002 ...PLUG, ENGINE CASE...PLUG, ENGINE CASE
-
100822-052 ...SEAL, COUNTERSHAFT - RIGHT...SEAL, COUNTERSHAFT - RIGHT
-
110829-003 ...DOWEL, SPLIT, 11 X 16...DOWEL, SPLIT, 11 X 16
-
120829-002 ...DOWEL, SPLIT, 13 X 18...DOWEL, SPLIT, 13 X 18
-
130812-008 ...UNION, OIL FILTER...UNION, OIL FILTER
-
140812-034 FILTER, OILFILTER, OIL
-
150830-172 O-RINGO-RING
-
160812-060 FITTING, OILFITTING, OIL
-
178468-616 SCREW, MACHINESCREW, MACHINE
-
180623-914 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
190812-079 PLATE, OIL SUMPPLATE, OIL SUMP
-
200812-052 VALVE, OIL-RELIEF - ASSEMBLYVALVE, OIL-RELIEF - ASSEMBLY
-
210830-162 O-RING, OIL FILLER COVERO-RING, OIL FILLER COVER
-
220812-081 COVER, OIL FILLERCOVER, OIL FILLER
-
230801-073 STICK, OIL LEVELSTICK, OIL LEVEL
-
240830-010 O-RINGO-RING
-
250812-078 FITTING, OIL - THREADEDFITTING, OIL - THREADED
-
260801-193 COVER, BREATHERCOVER, BREATHER
-
278468-625 SCREW, MACHINESCREW, MACHINE
-
280829-048 PIN, DOWELPIN, DOWEL
-
290832-084 BEARINGBEARING
-
300831-086 CIRCLIPCIRCLIP
-
310830-191 GASKET, BREATHERGASKET, BREATHER
-
328412-860 SCREW,CAP-HFH M8X1.25X60 CL8.8 RIE SILVERSCREW,CAP-HFH M8X1.25X60 CL8.8 RIE SILVER
-
338412-830 SCREW,CAP-HFH M8X1.25X30 CL8.8 RIE SILVERSCREW,CAP-HFH M8X1.25X30 CL8.8 RIE SILVER
-
348468-640 SCREW,MACH-TSPNH M6X1.0X40 CL8.8 BLACKSCREW,MACH-TSPNH M6X1.0X40 CL8.8 BLACK
-
358468-660 SCREW,MACH-TSPNH M6X1.0X60 CL8.8 BLACKSCREW,MACH-TSPNH M6X1.0X60 CL8.8 BLACK
-
368468-630 SCREW,MACH-TSPNH M6X1.0X30 CL8.8 BLACKSCREW,MACH-TSPNH M6X1.0X30 CL8.8 BLACK
-
378412-875 SCREW,CAP-HFH M8X1.25X75 CL8.8 RIE SILVERSCREW,CAP-HFH M8X1.25X75 CL8.8 RIE SILVER
-
388412-850 SCREW,CAP-HFH M8X1.25X50 CL8.8 RIE SILVERSCREW,CAP-HFH M8X1.25X50 CL8.8 RIE SILVER
-
390830-008 GASKET, COPPER 8X14X1GASKET, COPPER 8X14X1
-
400818-103 PLUGPLUG
