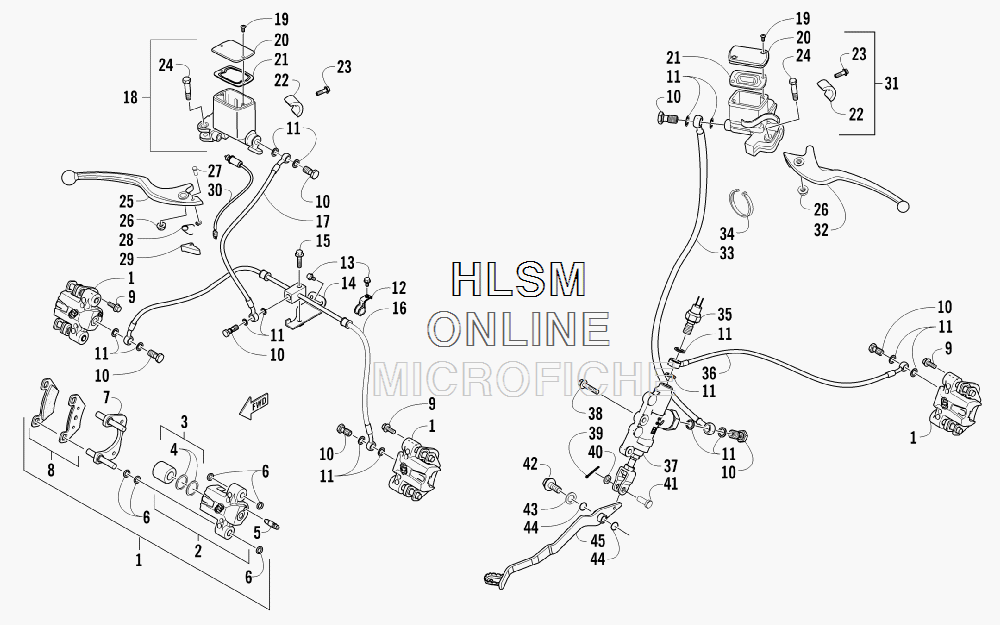

HYDRAULIC BRAKE ASSEMBLY для Arctic Cat XC 450 4x4 [A2013KCK4CUST] - 2013 года выпуска
-
№АртикулНазвание
-
13323-230 CALIPER, BRAKE - RIGHT FRONT (INC. 2-8)CALIPER, BRAKE - RIGHT FRONT (INC. 2-8)
-
13323-231 CALIPER, BRAKE - LEFT FRONT (INC. 2-8)CALIPER, BRAKE - LEFT FRONT (INC. 2-8)
-
13323-231 CALIPER, BRAKE - REAR (INC. 2-8)CALIPER, BRAKE - REAR (INC. 2-8)
-
21436-160 ...HOUSING, CALIPER - ASSEMBLY - RIGHT FRONT (INC. 3-5)...HOUSING, CALIPER - ASSEMBLY - RIGHT FRONT (INC. 3-5)
-
21436-161 ...HOUSING, CALIPER - ASSEMBLY - LEFT FRONT (INC. 3-5)...HOUSING, CALIPER - ASSEMBLY - LEFT FRONT (INC. 3-5)
-
21436-161 ...HOUSING, CALIPER - ASSEMBLY - REAR (INC. 3-5)...HOUSING, CALIPER - ASSEMBLY - REAR (INC. 3-5)
-
30502-606 ......PISTON/SEAL SET (INC. 4)......PISTON/SEAL SET (INC. 4)
-
40502-607 .........SEAL SET.........SEAL SET
-
50502-609 ......VALVE, BLEED......VALVE, BLEED
-
60502-608 ...O-RING, GUIDE - SET...O-RING, GUIDE - SET
-
70502-605 ...BRACKET ASSEMBLY...BRACKET ASSEMBLY
-
81502-694 ...PAD, BRAKE - SET...PAD, BRAKE - SET
-
93305-785 SCREW, CAPSCREW, CAP
-
103303-257 BOLT, BANJO-FITTINGBOLT, BANJO-FITTING
-
113303-284 WASHER, CRUSHWASHER, CRUSH
-
123303-919 CLAMP, BRAKE HOSECLAMP, BRAKE HOSE
-
133304-553 SCREW, CAPSCREW, CAP
-
143313-523 BRACKET, MOUNTING - BRAKE HOSE ASSEMBLYBRACKET, MOUNTING - BRAKE HOSE ASSEMBLY
-
153305-789 SCREW, CAPSCREW, CAP
-
163313-750 HOSE, BRAKE - ASSEMBLYHOSE, BRAKE - ASSEMBLY
-
173313-422 HOSE, BRAKEHOSE, BRAKE
-
183306-452 BRAKE, FRONT - ASSEMBLY (INC. 19-22)BRAKE, FRONT - ASSEMBLY (INC. 19-22)
-
193303-318 ...SCREW, MACHINE...SCREW, MACHINE
-
203305-381 ...COVER, RESERVOIR...COVER, RESERVOIR
-
213305-407 ...DIAPHRAGM...DIAPHRAGM
-
223305-983 ...CLAMP, HANDLEBAR...CLAMP, HANDLEBAR
-
233304-746 SCREW, CAPSCREW, CAP
-
243303-254 SCREW, SHOULDERSCREW, SHOULDER
-
253306-540 LEVER, BRAKE - RIGHTLEVER, BRAKE - RIGHT
-
263304-654 NUT, LOCKNUT, LOCK
-
273305-384 PIN, BRAKE LEVERPIN, BRAKE LEVER
-
283305-383 SPRINGSPRING
-
293305-382 LOCK, BRAKE LEVERLOCK, BRAKE LEVER
-
303306-449 SWITCH, BRAKESWITCH, BRAKE
-
313306-450 BRAKE, REAR - ASSEMBLY (INC. 19-22)BRAKE, REAR - ASSEMBLY (INC. 19-22)
-
323305-389 LEVER, BRAKE - LEFTLEVER, BRAKE - LEFT
-
333306-451 HOSE, BRAKEHOSE, BRAKE
-
340123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
-
353313-820 SWITCH, BRAKESWITCH, BRAKE
-
363313-681 HOSE, BRAKEHOSE, BRAKE
-
373306-370 BRAKE ASSEMBLYBRAKE ASSEMBLY
-
383303-383 SCREW, CAPSCREW, CAP
-
393304-141 PIN, COTTERPIN, COTTER
-
403304-050 WASHERWASHER
-
413306-152 PIN, CLEVISPIN, CLEVIS
-
423304-543 SCREW, CAPSCREW, CAP
-
433304-138 WASHERWASHER
-
441602-213 O-RINGO-RING
-
453306-499 LEVER, BRAKELEVER, BRAKE
