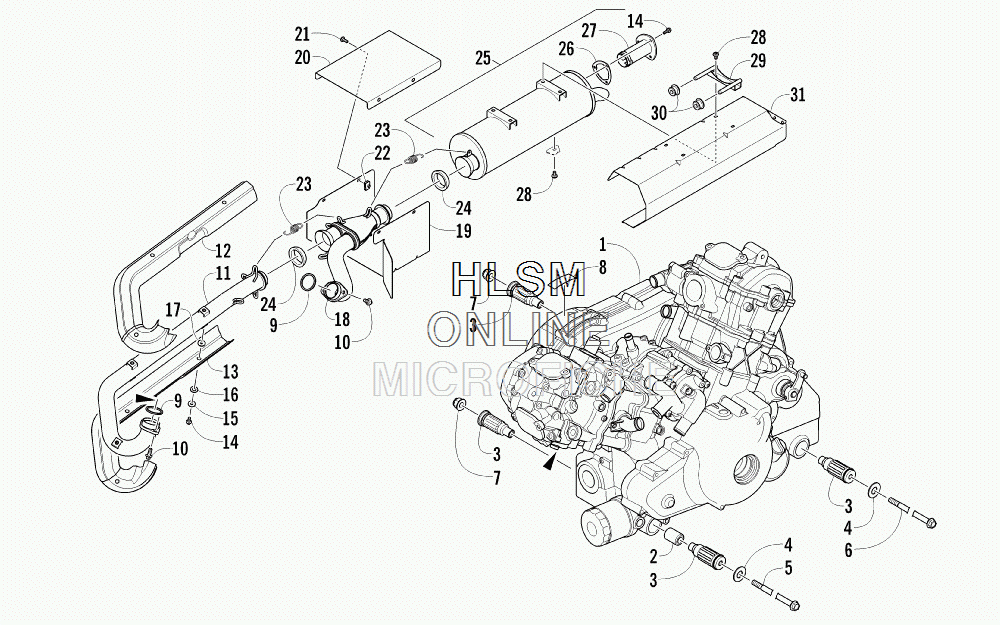

ENGINE AND EXHAUST для Arctic Cat PROWLER 1000 XTZ 4X4 [U2014P4W1PUSE] - 2014 года выпуска
-
№АртикулНазвание
-
10800-095 ENGINE, A950GH2 (INC. 2-3)ENGINE, A950GH2 (INC. 2-3)
-
20801-128 ...SPACER, ENGINE MOUNT...SPACER, ENGINE MOUNT
-
30801-091 ...MOUNT, ENGINE...MOUNT, ENGINE
-
40423-426 WASHERWASHER
-
50423-734 SCREW, CAPSCREW, CAP
-
60423-451 SCREW, CAPSCREW, CAP
-
78428-002 NUT, LOCKNUT, LOCK
-
80411-426 DECAL, WARNING - CLUTCH COVERDECAL, WARNING - CLUTCH COVER
-
90412-338 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
108408-820 SCREW, CAPSCREW, CAP
-
110512-517 PIPE, EXHAUST - FRONTPIPE, EXHAUST - FRONT
-
120512-528 SHIELD, EXHAUST PIPE - UPPERSHIELD, EXHAUST PIPE - UPPER
-
130512-529 SHIELD, EXHAUST PIPE - LOWERSHIELD, EXHAUST PIPE - LOWER
-
148408-616 SCREW, CAPSCREW, CAP
-
158050-222 WASHERWASHER
-
160423-909 ISOLATOR, TOPISOLATOR, TOP
-
170423-908 ISOLATOR, BOTTOMISOLATOR, BOTTOM
-
180512-519 PIPE, EXHAUST - REARPIPE, EXHAUST - REAR
-
190412-543 SHIELD, EXHAUST PIPE - REARSHIELD, EXHAUST PIPE - REAR
-
200412-561 SHIELD, HEATSHIELD, HEAT
-
218476-616 SCREW, MACHINESCREW, MACHINE
-
220423-577 CLIP, U-NUTCLIP, U-NUT
-
230612-668 SPRING, EXTENSIONSPRING, EXTENSION
-
240412-375 SEAL, EXHAUST PIPESEAL, EXHAUST PIPE
-
250512-500 MUFFLER - ASSEMBLY (INC. 26-27 AND THREE NO. 14)MUFFLER - ASSEMBLY (INC. 26-27 AND THREE NO. 14)
-
260412-313 ...GASKET, SPARK ARRESTER...GASKET, SPARK ARRESTER
-
270512-219 ...ARRESTER, SPARK - ASSEMBLY...ARRESTER, SPARK - ASSEMBLY
-
288476-612 SCREW, MACHINESCREW, MACHINE
-
290412-553 BRACKET, MUFFLER SUPPORTBRACKET, MUFFLER SUPPORT
-
300412-544 BUSHINGBUSHING
-
310412-551 COVER, MUFFLERCOVER, MUFFLER
