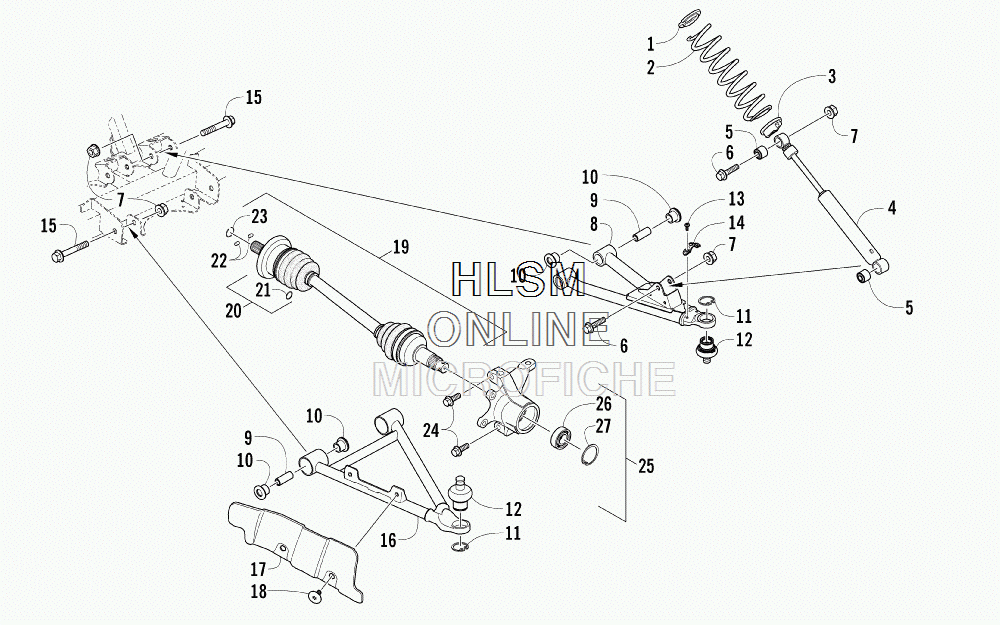

FRONT SUSPENSION ASSEMBLY для Arctic Cat Prowler 500 HDX LTD 4X4 GREEN [U2014P7K4COSN] (INTERNATIONAL) - 2014 года выпуска
-
№АртикулНазвание
-
11603-889 RETAINER, SPRINGRETAINER, SPRING
-
20403-211 SPRING, SUSPENSION - BLACKSPRING, SUSPENSION - BLACK
-
30404-057 CAM, SPRING ADJUSTERCAM, SPRING ADJUSTER
-
40403-256 SHOCK ABSORBER (INC. 5)SHOCK ABSORBER (INC. 5)
-
50403-463 ...BUSHING...BUSHING
-
68409-055 SCREW, CAPSCREW, CAP
-
78428-002 NUT, LOCKNUT, LOCK
-
80503-432 A-ARM, UPPER RIGHT - BLACK (INC. 9-12)A-ARM, UPPER RIGHT - BLACK (INC. 9-12)
-
80503-433 A-ARM, UPPER LEFT - BLACK (INC. 9-12)A-ARM, UPPER LEFT - BLACK (INC. 9-12)
-
90403-214 ...AXLE...AXLE
-
100403-208 ...BUSHING...BUSHING
-
110423-009 ...RING, RETAINING...RING, RETAINING
-
120405-483 ...BALL JOINT...BALL JOINT
-
130423-946 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
141502-594 CLAMP, ROUTINGCLAMP, ROUTING
-
158409-075 SCREW, CAPSCREW, CAP
-
160503-376 A-ARM, LOWER RIGHT - BLACK (INC. 9-12)A-ARM, LOWER RIGHT - BLACK (INC. 9-12)
-
160503-377 A-ARM, LOWER LEFT - BLACK (INC. 9-12)A-ARM, LOWER LEFT - BLACK (INC. 9-12)
-
171406-034 GUARD, BOOT - RIGHT - BLACKGUARD, BOOT - RIGHT - BLACK
-
171406-035 GUARD, BOOT - LEFT - BLACKGUARD, BOOT - LEFT - BLACK
-
180423-545 SCREW, SHOULDERSCREW, SHOULDER
-
191502-940 AXLE, DRIVE - RIGHT (INC. 20-23)AXLE, DRIVE - RIGHT (INC. 20-23)
-
201436-419 ...REPAIR KIT, BOOT (INC. 21)...REPAIR KIT, BOOT (INC. 21)
-
211441-988 ......CLIP, RETAINING......CLIP, RETAINING
-
221402-885 ...PIN, DETENT...PIN, DETENT
-
231402-889 ...CLIP, RETAINING...CLIP, RETAINING
-
240423-998 SCREW, SHOULDERSCREW, SHOULDER
-
250505-580 KNUCKLE - ASSEMBLY - RIGHT (INC. 26-27)KNUCKLE - ASSEMBLY - RIGHT (INC. 26-27)
-
250505-581 KNUCKLE - ASSEMBLY - LEFT (INC. 26-27)KNUCKLE - ASSEMBLY - LEFT (INC. 26-27)
-
261402-809 ...BEARING...BEARING
-
270423-423 ...RING, RETAINING...RING, RETAINING
