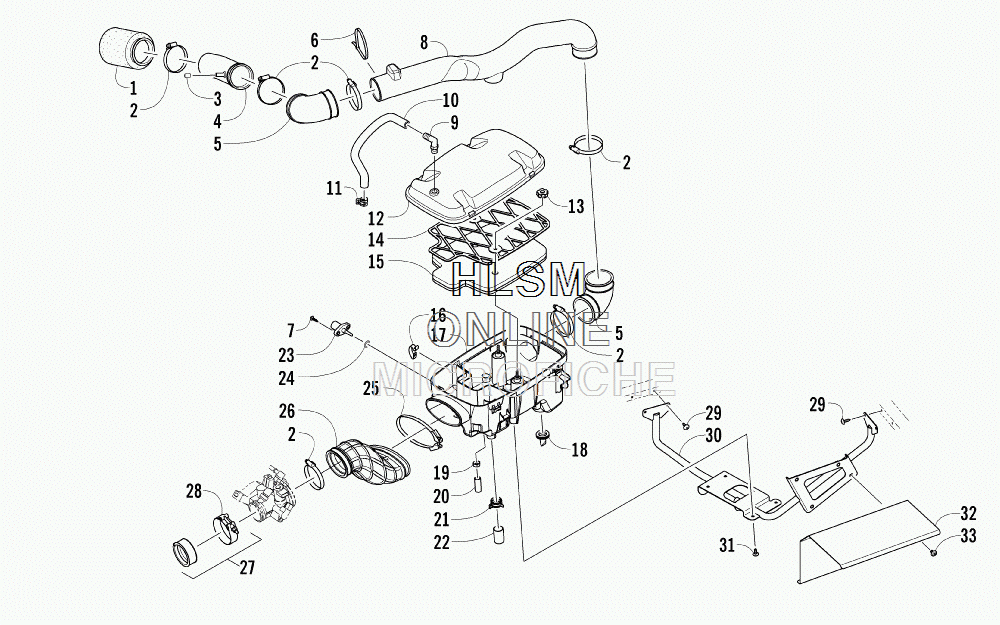

AIR INTAKE ASSEMBLY для Arctic Cat PROWLER 700 HDX 4X4 GREEN [U2014P5T1PUSN] - 2014 года выпуска
-
№АртикулНазвание
-
10470-834 FILTER, INTAKEFILTER, INTAKE
-
20423-019 CLAMPCLAMP
-
31423-050 CAPCAP
-
40513-043 DUCT, INTAKEDUCT, INTAKE
-
50413-098 BOOT, AIR-INBOOT, AIR-IN
-
60123-903 TIE, CABLE - 11.5 IN.TIE, CABLE - 11.5 IN.
-
70423-342 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
80470-900 DUCT, INTAKEDUCT, INTAKE
-
90470-881 FITTING, ELBOWFITTING, ELBOW
-
100410-226 HOSE, VENTHOSE, VENT
-
111623-281 CLAMP, HOSECLAMP, HOSE
-
120470-861 COVER, AIR INTAKECOVER, AIR INTAKE
-
130423-513 ADJUSTMENT, KNOBADJUSTMENT, KNOB
-
141470-030 SCREEN, AIR FILTERSCREEN, AIR FILTER
-
151470-029 FILTER, AIRFILTER, AIR
-
160423-455 CLIP, SPRINGCLIP, SPRING
-
170570-395 HOUSING, AIR INTAKEHOUSING, AIR INTAKE
-
180470-442 VALVE, DRAINVALVE, DRAIN
-
190610-563 CLAMP, HOSECLAMP, HOSE
-
200470-863 CAP, DRAINCAP, DRAIN
-
211623-287 CLAMP, HOSECLAMP, HOSE
-
220423-766 CAP, DRAINCAP, DRAIN
-
230430-055 SENSOR, AIR TEMPERATURE (INC. 24)SENSOR, AIR TEMPERATURE (INC. 24)
-
245507-224 ...O-RING...O-RING
-
251423-074 CLAMPCLAMP
-
261470-036 BOOT, INTAKEBOOT, INTAKE
-
270437-069 BOOT (INC. 28)BOOT (INC. 28)
-
281423-041 CLAMP, MANIFOLDCLAMP, MANIFOLD
-
290623-784 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
302516-706 MOUNT, AIRBOXMOUNT, AIRBOX
-
318468-612 SCREW, MACHINESCREW, MACHINE
-
320470-908 SHIELD, HEATSHIELD, HEAT
-
338477-610 SCREW, MACHINESCREW, MACHINE
