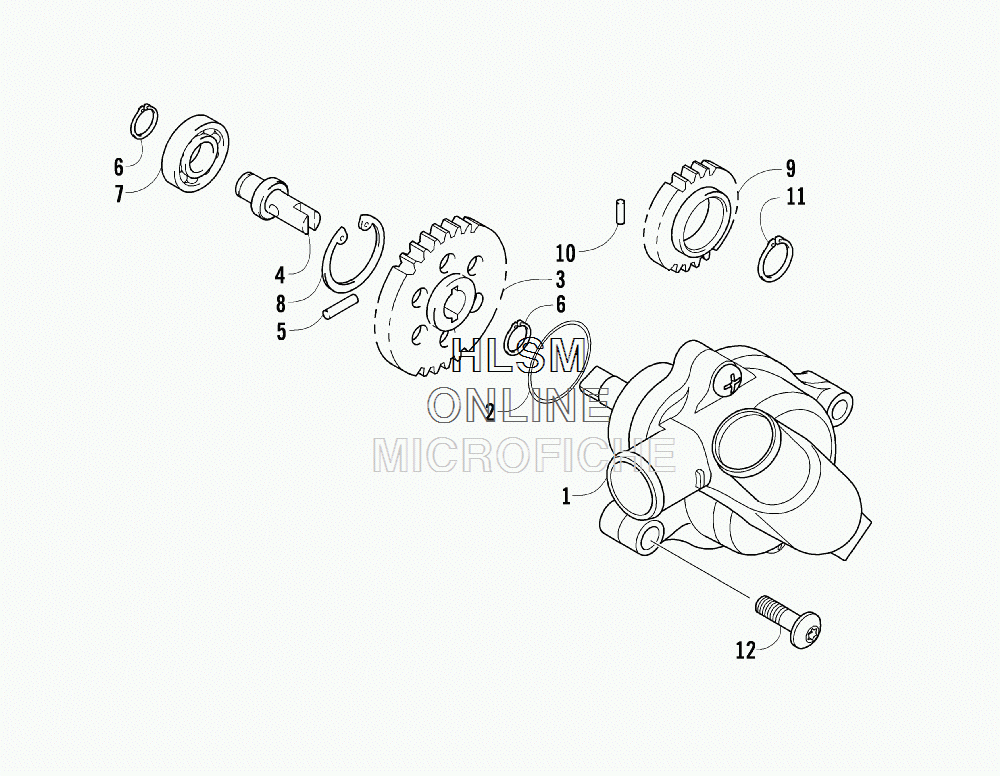

WATER PUMP ASSEMBLY для Arctic Cat TBX 700 XT RED 4X4 [A2014BBT4EUSR] - 2014 года выпуска
-
№АртикулНазвание
-
10813-001 PUMP, WATER - ASSEMBLY (INC. 2)PUMP, WATER - ASSEMBLY (INC. 2)
-
20830-029 ...O-RING...O-RING
-
30813-004 GEAR, DRIVENGEAR, DRIVEN
-
40813-005 SHAFT, DRIVEN GEARSHAFT, DRIVEN GEAR
-
50829-009 PIN, DRIVEN GEARPIN, DRIVEN GEAR
-
60831-002 RING, RETAININGRING, RETAINING
-
70832-046 BEARING, SHAFTBEARING, SHAFT
-
80831-004 RING, RETAININGRING, RETAINING
-
90811-003 GEAR, WATER PUMP DRIVEGEAR, WATER PUMP DRIVE
-
100829-007 PIN, ALIGNMENTPIN, ALIGNMENT
-
110831-005 RING, RETAININGRING, RETAINING
-
128468-665 SCREW, MACHINESCREW, MACHINE
