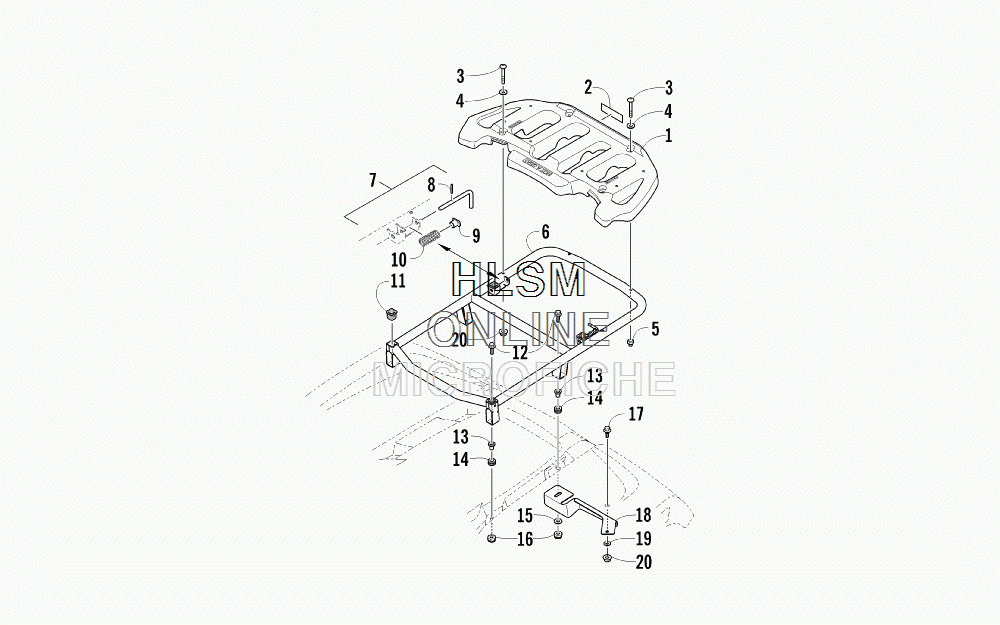

REAR RACK ASSEMBLY для Arctic Cat TRV 1000 LIMITED 4X4 [A2014TCW1POSL] (INTERNATIONAL) - 2014 года выпуска
-
№АртикулНазвание
-
12516-339 RACK, REAR (INC. 2)RACK, REAR (INC. 2)
-
21411-201 ...DECAL, WARNING - LOAD...DECAL, WARNING - LOAD
-
38410-640 SCREW, CAPSCREW, CAP
-
48050-223 WASHERWASHER
-
50423-891 NUT, CAPNUT, CAP
-
62516-169 BASE, MRP - ASSEMBLY (INC. 7-11)BASE, MRP - ASSEMBLY (INC. 7-11)
-
70541-504 ...PIN - ASSEMBLY (INC. 8-10)...PIN - ASSEMBLY (INC. 8-10)
-
80423-635 ......PIN, ROLL......PIN, ROLL
-
90423-677 ......BUSHING, FLANGED......BUSHING, FLANGED
-
100423-636 ......SPRING......SPRING
-
110441-592 ...BUSHING...BUSHING
-
128410-835 SCREW, CAPSCREW, CAP
-
130423-669 SPACERSPACER
-
140423-465 GROMMETGROMMET
-
150423-087 WASHERWASHER
-
168432-802 NUT, LOCKNUT, LOCK
-
170423-654 SCREW, SHOULDERSCREW, SHOULDER
-
182506-092 BRACKET, REAR FENDER - RIGHTBRACKET, REAR FENDER - RIGHT
-
182506-093 BRACKET, REAR FENDER - LEFTBRACKET, REAR FENDER - LEFT
-
198050-222 WASHERWASHER
-
208427-602 NUT, LOCKNUT, LOCK
