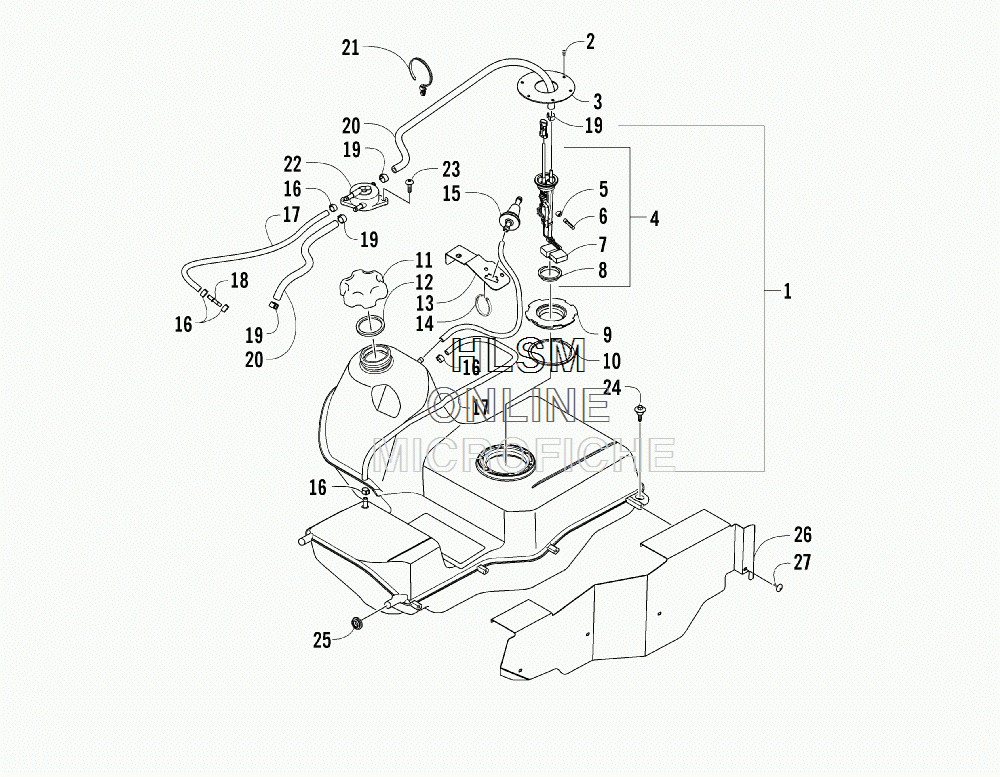

GAS TANK ASSEMBLY для Arctic Cat TRV 400 Core 4x4 [A2014TBG4BUSR] - 2014 года выпуска
-
№АртикулНазвание
-
10570-287 TANK, GAS - ASSEMBLY W/STRAPS (INC. 2-12)TANK, GAS - ASSEMBLY W/STRAPS (INC. 2-12)
-
20423-898 ...SCREW, SELF-TAPPING...SCREW, SELF-TAPPING
-
30470-848 ...PLATE, RETAINING...PLATE, RETAINING
-
40570-253 ...SENSOR, FUEL LEVEL (INC. 5-8)...SENSOR, FUEL LEVEL (INC. 5-8)
-
50423-603 ......CLAMP, HOSE......CLAMP, HOSE
-
60470-475 ......FILTER, FUEL......FILTER, FUEL
-
72670-235 ......FLOAT......FLOAT
-
80470-521 ......SEAL, FUEL LEVEL SENSOR......SEAL, FUEL LEVEL SENSOR
-
90470-847 ...ADAPTER, FUEL SENSOR...ADAPTER, FUEL SENSOR
-
100470-838 ...SEAL...SEAL
-
110470-438 ...CAP, GAS TANK (INC. 12)...CAP, GAS TANK (INC. 12)
-
120109-733 ......GASKET, GAS TANK CAP......GASKET, GAS TANK CAP
-
131470-015 BRACKET, MOUNTING - FILTERBRACKET, MOUNTING - FILTER
-
140123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
-
150470-988 FILTER, FUELFILTER, FUEL
-
160423-688 CLAMP, HOSECLAMP, HOSE
-
170410-070 HOSE, GASLINE - 25 FTHOSE, GASLINE - 25 FT
-
180470-702 FITTING, STRAIGHTFITTING, STRAIGHT
-
190423-689 CLAMP, HOSECLAMP, HOSE
-
200410-143 HOSE, GASLINE - 25 FTHOSE, GASLINE - 25 FT
-
210423-075 TIE, CABLE - PUSH-MOUNTTIE, CABLE - PUSH-MOUNT
-
220470-758 PUMP, FUELPUMP, FUEL
-
238476-620 SCREW, MACHINESCREW, MACHINE
-
240423-732 SCREW, SHOULDERSCREW, SHOULDER
-
250423-460 GROMMET, GAS TANKGROMMET, GAS TANK
-
260470-822 SHIELD, GAS TANKSHIELD, GAS TANK
-
270623-797 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
