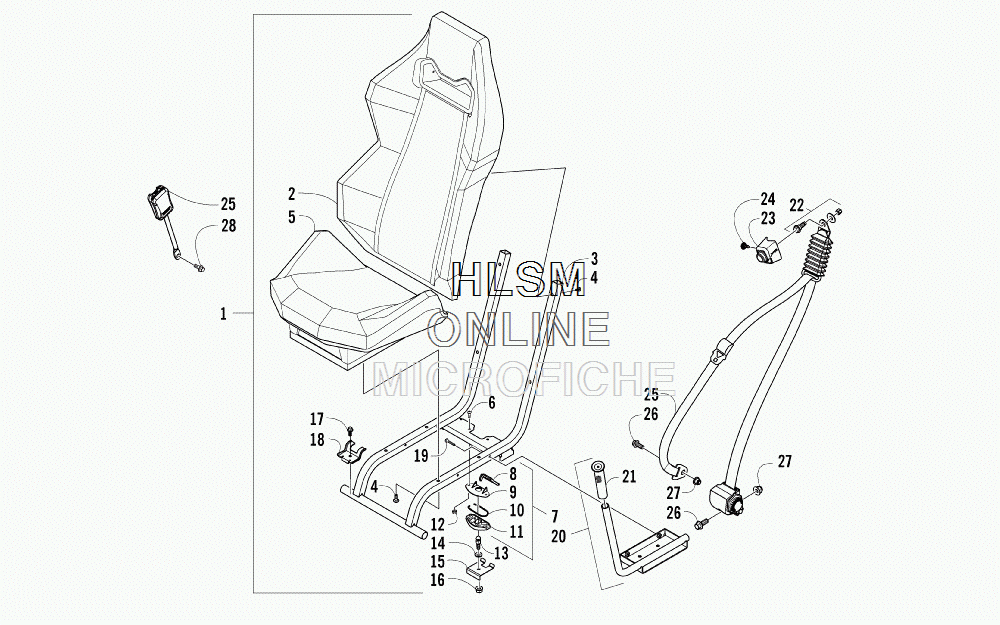

FRONT SEAT ASSEMBLY для Arctic Cat WILDCAT 4 1000 ORANGE [U2014W4W1PUSY] - 2014 года выпуска
-
№АртикулНазвание
-
15506-070 SEAT - ASSEMBLY (INC. 2-12)SEAT - ASSEMBLY (INC. 2-12)
-
25506-075 ...BACK, SEAT...BACK, SEAT
-
35506-069 ...FRAME, SEAT - BLACK...FRAME, SEAT - BLACK
-
48468-617 ...SCREW, MACHINE...SCREW, MACHINE
-
55506-074 ...BASE, SEAT...BASE, SEAT
-
68468-620 ...SCREW, MACHINE...SCREW, MACHINE
-
72706-164 ...LATCH, SEAT - ASSEMBLY (INC. 8-11)...LATCH, SEAT - ASSEMBLY (INC. 8-11)
-
82606-854 ......LEVER, SEAT LATCH......LEVER, SEAT LATCH
-
91673-635 ......COVER, SEAT LATCH......COVER, SEAT LATCH
-
100673-023 ......CLIP, SPRING......CLIP, SPRING
-
111673-634 ......BACK, SEAT LATCH......BACK, SEAT LATCH
-
120623-038 ...NUT W/WASHER...NUT W/WASHER
-
130423-559 STUD, LATCH - SEATSTUD, LATCH - SEAT
-
148050-282 WASHERWASHER
-
155506-253 GUARD, SEAT LATCHGUARD, SEAT LATCH
-
168424-002 NUTNUT
-
178408-821 SCREW, CAPSCREW, CAP
-
185506-078 BRACKET, HOLD-DOWNBRACKET, HOLD-DOWN
-
198477-635 SCREW, MACHINESCREW, MACHINE
-
205506-173 HANDLE - ASSEMBLY (INC. 21)HANDLE - ASSEMBLY (INC. 21)
-
214606-945 ...GRIP, HANDLEBAR...GRIP, HANDLEBAR
-
220423-915 SCREW, SHOULDER - ASSEMBLYSCREW, SHOULDER - ASSEMBLY
-
232416-936 COVER, SEAT BELT - RIGHTCOVER, SEAT BELT - RIGHT
-
232416-937 COVER, SEAT BELT - LEFTCOVER, SEAT BELT - LEFT
-
240623-784 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
255506-160 BELT, SEAT - ASSEMBLYBELT, SEAT - ASSEMBLY
-
261423-182 SCREW, CAPSCREW, CAP
-
271423-184 NUT, LOCKNUT, LOCK
-
281423-183 SCREW, CAPSCREW, CAP
