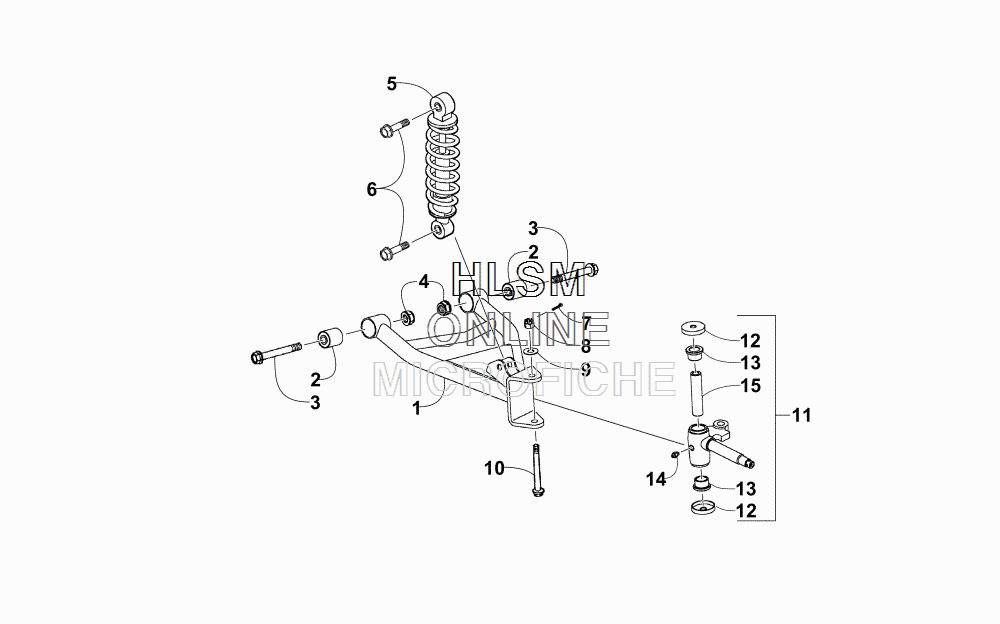

FRONT SUSPENSION ASSEMBLY для Arctic Cat 150 UTILITY RED [A2015KYC2BOSR] (INTERNATIONAL) - 2015 года выпуска
-
№АртикулНазвание
-
13305-208 A-ARM ASSEMBLY - RIGHT (INC. 2)A-ARM ASSEMBLY - RIGHT (INC. 2)
-
13305-209 A-ARM ASSEMBLY - LEFT (INC. 2)A-ARM ASSEMBLY - LEFT (INC. 2)
-
23303-965 ...BUSHING...BUSHING
-
33304-182 BOLT, FLANGEBOLT, FLANGE
-
43304-031 U-NUTU-NUT
-
53305-937 SHOCK/SPRING ASSEMBLY - BLACKSHOCK/SPRING ASSEMBLY - BLACK
-
63303-376 SCREW, CAP - HFH M10 X 1.25 X 40SCREW, CAP - HFH M10 X 1.25 X 40
-
73305-724 PIN, COTTERPIN, COTTER
-
83305-211 NUT, LOCKNUT, LOCK
-
93305-107 WASHERWASHER
-
103305-202 SCREW, CAPSCREW, CAP
-
113305-198 KNUCKLE - ASSEMBLY - RIGHT (INC. 12-15)KNUCKLE - ASSEMBLY - RIGHT (INC. 12-15)
-
113305-203 KNUCKLE - ASSEMBLY - LEFT (INC. 12-15)KNUCKLE - ASSEMBLY - LEFT (INC. 12-15)
-
123305-201 ...CAP...CAP
-
133305-199 ...BUSHING...BUSHING
-
143303-393 ...FITTING, GREASE...FITTING, GREASE
-
153305-200 ...AXLE...AXLE
