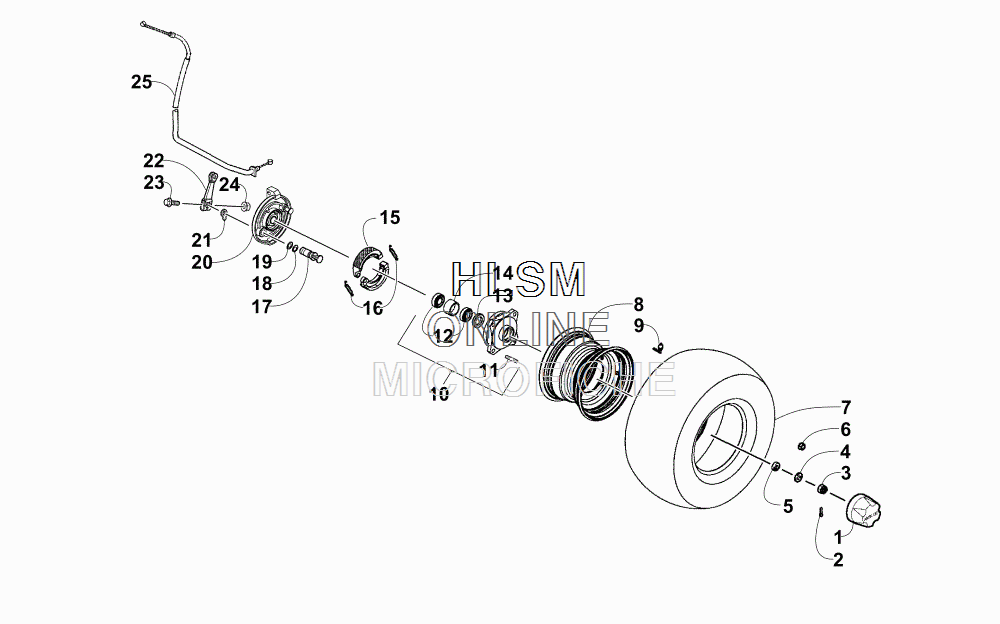

FRONT WHEEL AND BRAKE ASSEMBLIES для Arctic Cat 150 UTILITY RED [A2015KYC2BUSR] - 2015 года выпуска
-
№АртикулНазвание
-
13303-931 CAP, WHEELCAP, WHEEL
-
23303-340 PIN, COTTERPIN, COTTER
-
33303-330 NUT, LOCKNUT, LOCK
-
43305-124 WASHERWASHER
-
53305-108 SPACERSPACER
-
63304-028 NUT, LUGNUT, LUG
-
73306-762 TIRE, FRONT - ASSEMBLYTIRE, FRONT - ASSEMBLY
-
83303-902 RIM, FRONT WHEEL (DARK GRAY)RIM, FRONT WHEEL (DARK GRAY)
-
93304-562 STEM, VALVESTEM, VALVE
-
103305-109 HUB, FRONT - ASSEMBLY (INC. 11-14)HUB, FRONT - ASSEMBLY (INC. 11-14)
-
113305-126 ...BOLT, STUD...BOLT, STUD
-
123303-468 ...BEARING...BEARING
-
133303-456 ...SEAL...SEAL
-
143305-110 ...SPACER...SPACER
-
153305-720 SHOE, FRONT - ASSEMBLYSHOE, FRONT - ASSEMBLY
-
163305-116 SPRINGSPRING
-
173305-119 CAM, BRAKECAM, BRAKE
-
183305-117 SEALSEAL
-
193305-125 SEALSEAL
-
203305-114 PANEL - FRONT - RIGHTPANEL - FRONT - RIGHT
-
203305-121 PANEL - FRONT - LEFTPANEL - FRONT - LEFT
-
213305-118 INDICATOR, WEARINDICATOR, WEAR
-
223305-120 ARM, BRAKE - RIGHTARM, BRAKE - RIGHT
-
223305-122 ARM, BRAKE - LEFTARM, BRAKE - LEFT
-
233303-611 SCREW, CAPSCREW, CAP
-
243304-654 NUT, FLANGE - 6 MMNUT, FLANGE - 6 MM
-
253305-077 CABLE, BRAKE - RIGHTCABLE, BRAKE - RIGHT
-
253305-079 CABLE, BRAKE - LEFTCABLE, BRAKE - LEFT
