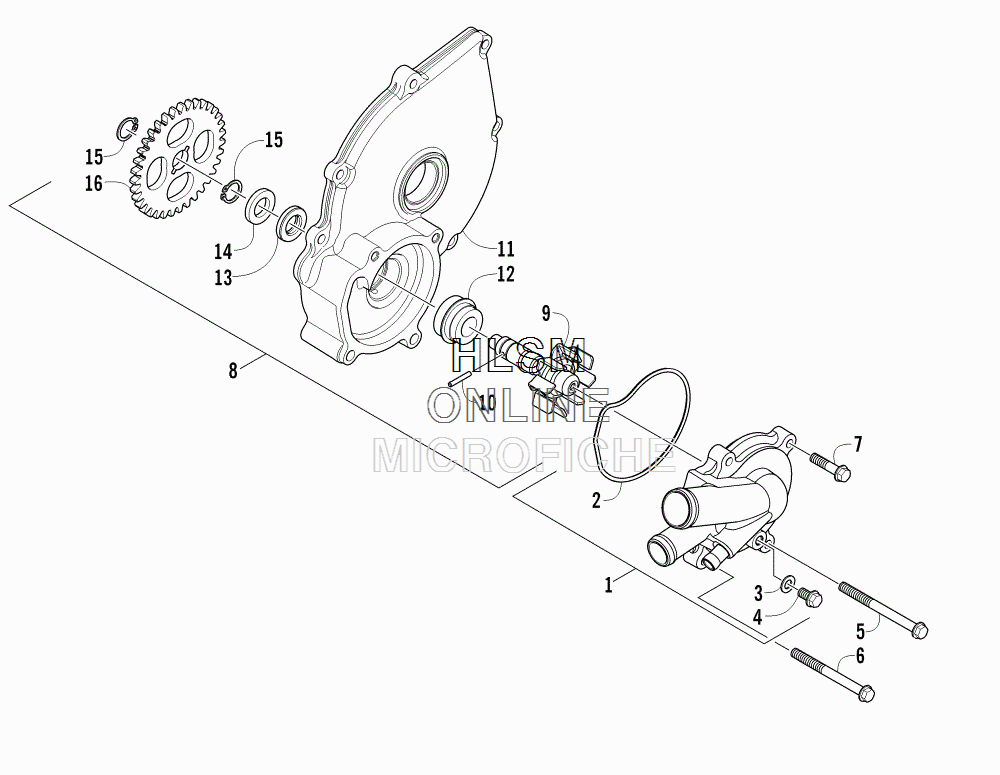

WATER PUMP ASSEMBLY для Arctic Cat 450 EFT GREEN [A2015IRK4CETG] - 2015 года выпуска
-
№АртикулНазвание
-
10813-054 COVER, WATER PUMP - ASSEMBLY (INC. 2-4)COVER, WATER PUMP - ASSEMBLY (INC. 2-4)
-
20830-208 ...O-RING...O-RING
-
33304-049 ...WASHER...WASHER
-
43304-186 ...SCREW, CAP...SCREW, CAP
-
50826-065 SCREW, CAPSCREW, CAP
-
60826-151 SCREW, CAPSCREW, CAP
-
73303-384 SCREW, CAPSCREW, CAP
-
80813-051 HOUSING, WATER PUMP - ASSEMBLY (INC. 9-16)HOUSING, WATER PUMP - ASSEMBLY (INC. 9-16)
-
90813-057 ...SHAFT, IMPELLER - ASSEMBLY...SHAFT, IMPELLER - ASSEMBLY
-
100829-057 ...PIN, ALIGNMENT...PIN, ALIGNMENT
-
110806-123 ...HOUSING, WATER PUMP...HOUSING, WATER PUMP
-
123305-940 ...SEAL, MECHANICAL...SEAL, MECHANICAL
-
130830-207 ...SEAL, OIL...SEAL, OIL
-
140828-130 ...WASHER, THRUST...WASHER, THRUST
-
150831-089 ...CIRCLIP...CIRCLIP
-
160811-037 ...GEAR, DRIVEN...GEAR, DRIVEN
