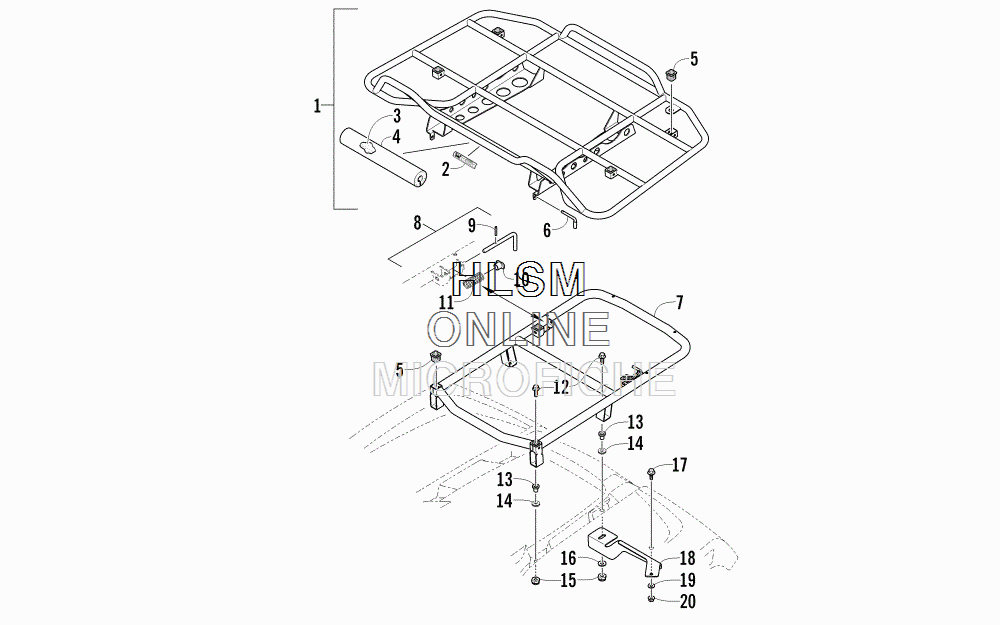

REAR RACK ASSEMBLY для Arctic Cat 700 DIESEL GREEN [A2015TBT4DOSG] (INTERNATIONAL) - 2015 года выпуска
-
№АртикулНазвание
-
12516-483 RACK, REAR - ASSEMBLY (INC. 2-4 AND FOUR NO. 5)RACK, REAR - ASSEMBLY (INC. 2-4 AND FOUR NO. 5)
-
20411-648 ...DECAL, WARNING - LOAD...DECAL, WARNING - LOAD
-
32416-244 ...PAD, FOAM...PAD, FOAM
-
42416-245 ...COVER...COVER
-
50441-592 ...BUSHING...BUSHING
-
60541-447 PINS, SPEEDRACK - SS - ASSEMBLYPINS, SPEEDRACK - SS - ASSEMBLY
-
72506-221 RACK, REAR FRAME - ASSEMBLY (INC. 8-11 AND FOUR NO. 5)RACK, REAR FRAME - ASSEMBLY (INC. 8-11 AND FOUR NO. 5)
-
80541-504 PIN - ASSEMBLY (INC. 9-11)PIN - ASSEMBLY (INC. 9-11)
-
90423-635 ...PIN, ROLL...PIN, ROLL
-
100423-677 ...BUSHING, FLANGED...BUSHING, FLANGED
-
110423-636 ...SPRING...SPRING
-
128410-835 SCREW, CAPSCREW, CAP
-
130423-669 SPACERSPACER
-
140423-465 GROMMETGROMMET
-
158432-802 NUT, LOCKNUT, LOCK
-
160423-087 WASHERWASHER
-
170423-654 SCREW, SHOULDERSCREW, SHOULDER
-
182506-092 BRACKET, REAR FENDER - RIGHTBRACKET, REAR FENDER - RIGHT
-
182506-093 BRACKET, REAR FENDER - LEFTBRACKET, REAR FENDER - LEFT
-
198050-222 WASHERWASHER
-
208427-602 NUT, LOCKNUT, LOCK
