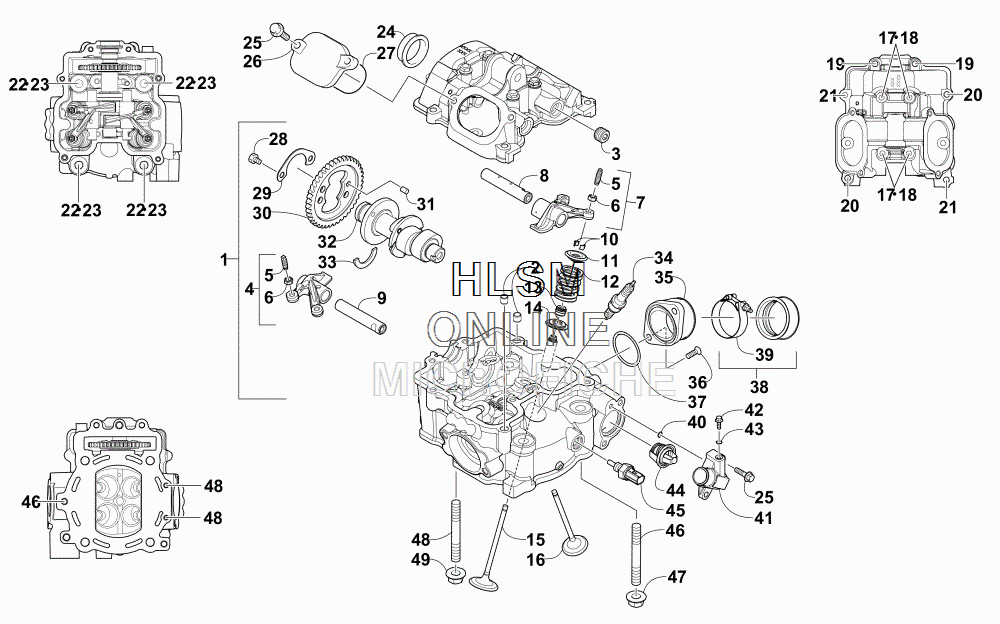

CYLINDER HEAD AND CAMSHAFT/VALVE ASSEMBLY для Arctic Cat 700 TBX RED [A2015BBT1PUSR] - 2015 года выпуска
-
№АртикулНазвание
-
10808-226 HEAD, CYLINDER - ASSEMBLY (INC. 2-17)HEAD, CYLINDER - ASSEMBLY (INC. 2-17)
-
20829-062 ...PIN, DOWEL...PIN, DOWEL
-
30831-092 ...PLUG, SHAFT...PLUG, SHAFT
-
40809-319 ARM, VALVE ROCKER - EXHAUST (INC. TWO NO. 5-6)ARM, VALVE ROCKER - EXHAUST (INC. TWO NO. 5-6)
-
50809-240 ...SCREW, ADJUSTER...SCREW, ADJUSTER
-
60827-059 ...NUT...NUT
-
70809-318 ARM, VALVE ROCKER - INTAKE (INC. TWO NO. 5-6)ARM, VALVE ROCKER - INTAKE (INC. TWO NO. 5-6)
-
80809-241 SHAFT, ROCKER ARM - INTAKESHAFT, ROCKER ARM - INTAKE
-
90809-242 SHAFT, ROCKER ARM - EXHAUSTSHAFT, ROCKER ARM - EXHAUST
-
100809-233 COTTER, VALVECOTTER, VALVE
-
110809-232 RETAINER, SPRINGRETAINER, SPRING
-
120809-231 SPRING, VALVESPRING, VALVE
-
130830-186 SEAL, OILSEAL, OIL
-
140809-230 SEAT, SPRING - VALVESEAT, SPRING - VALVE
-
150809-228 VALVE, INTAKEVALVE, INTAKE
-
160809-229 VALVE, EXHAUSTVALVE, EXHAUST
-
170826-149 SCREW, CAPSCREW, CAP
-
180830-155 GASKETGASKET
-
190826-002 SCREW, CAPSCREW, CAP
-
200826-005 SCREW, CAPSCREW, CAP
-
210826-006 SCREW, CAPSCREW, CAP
-
220808-037 SCREW, CAPSCREW, CAP
-
230830-147 WASHERWASHER
-
240808-077 PLUG, CYLINDER HEADPLUG, CYLINDER HEAD
-
250826-007 SCREW, CAPSCREW, CAP
-
260808-003 CAP, INSPECTION (INC. 27)CAP, INSPECTION (INC. 27)
-
270830-004 ...O-RING...O-RING
-
280826-034 SCREW, CAPSCREW, CAP
-
290828-004 PLATE, RETAINERPLATE, RETAINER
-
300809-212 SPROCKETSPROCKET
-
310829-049 PIN, DOWELPIN, DOWEL
-
320809-245 CAMSHAFTCAMSHAFT
-
330809-003 C-RINGC-RING
-
340217-799 SPARK PLUG - CPR8ESPARK PLUG - CPR8E
-
350470-668 FLANGE, INTAKE MANIFOLDFLANGE, INTAKE MANIFOLD
-
360826-008 SCREW, MACHINESCREW, MACHINE
-
370830-090 O-RINGO-RING
-
380437-069 BOOT (INC. 39)BOOT (INC. 39)
-
391423-041 ...CLAMP...CLAMP
-
400830-168 O-RINGO-RING
-
410808-208 COVER, THERMOSTAT (INC. 42-43)COVER, THERMOSTAT (INC. 42-43)
-
428408-512 ...SCREW, CAP...SCREW, CAP
-
430423-182 ...O-RING...O-RING
-
440808-078 THERMOSTATTHERMOSTAT
-
450808-124 SENSOR, ENGINE COOLANT TEMPERATURESENSOR, ENGINE COOLANT TEMPERATURE
-
460827-031 BOLT, STUDBOLT, STUD
-
478424-804 NUTNUT
-
480827-054 BOLT, STUDBOLT, STUD
-
498424-604 NUTNUT
