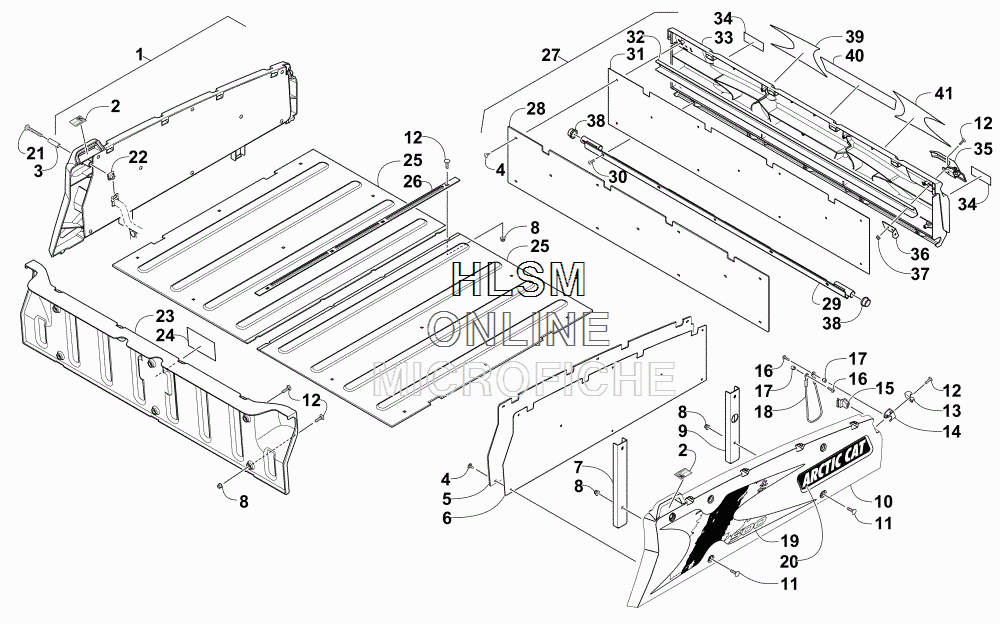

CARGO BOX AND TAILGATE ASSEMBLY для Arctic Cat PROWLER 500 HDX GREEN [U2015P5K4CUSG] - 2015 года выпуска
-
№АртикулНазвание
-
14506-522 SIDE, CARGO BOX - ASSEMBLY - RIGHT (INC. 2-15)SIDE, CARGO BOX - ASSEMBLY - RIGHT (INC. 2-15)
-
14506-523 SIDE, CARGO BOX - ASSEMBLY - LEFT (INC. 2-15)SIDE, CARGO BOX - ASSEMBLY - LEFT (INC. 2-15)
-
24411-882 ...DECAL, WARNING - PINCH POINT...DECAL, WARNING - PINCH POINT
-
32416-368 ...SPACER...SPACER
-
41423-011 ...SCREW, SELF-TAPPING...SCREW, SELF-TAPPING
-
54506-524 ...PANEL, SIDE - INNER...PANEL, SIDE - INNER
-
62416-647 ...PAD, FOAM...PAD, FOAM
-
74506-154 ...BRACE, SUPPORT - FRONT...BRACE, SUPPORT - FRONT
-
88427-802 ...NUT, LOCK...NUT, LOCK
-
94506-153 ...BRACE, SUPPORT - REAR...BRACE, SUPPORT - REAR
-
102416-392 ...SIDE, CARGO BOX - RIGHT...SIDE, CARGO BOX - RIGHT
-
102416-393 ...SIDE, CARGO BOX - LEFT...SIDE, CARGO BOX - LEFT
-
110423-623 ...BOLT, CARRIAGE...BOLT, CARRIAGE
-
121423-038 ...SCREW, MACHINE...SCREW, MACHINE
-
132516-710 ...BRACKET, RETAINING - LATCH...BRACKET, RETAINING - LATCH
-
142416-379 ...BRACKET, RETAINING - CABLE...BRACKET, RETAINING - CABLE
-
152416-390 ...INSERT, PANEL - RIGHT...INSERT, PANEL - RIGHT
-
152416-391 ...INSERT, PANEL - LEFT...INSERT, PANEL - LEFT
-
168470-520 SCREW, MACHINESCREW, MACHINE
-
171423-009 SPACERSPACER
-
180487-080 CABLE, TAILGATECABLE, TAILGATE
-
194411-728 DECAL, SIDE PANEL - RIGHTDECAL, SIDE PANEL - RIGHT
-
194411-729 DECAL, SIDE PANEL - LEFTDECAL, SIDE PANEL - LEFT
-
202411-208 DECAL, "ARCTIC CAT" - RIGHTDECAL, "ARCTIC CAT" - RIGHT
-
202411-209 DECAL, "ARCTIC CAT" - LEFTDECAL, "ARCTIC CAT" - LEFT
-
211423-010 SCREW, MACHINESCREW, MACHINE
-
222416-378 CLIP, U-NUTCLIP, U-NUT
-
234406-588 PANEL, FRONTPANEL, FRONT
-
241411-119 DECAL, WARNING - CARGO BOXDECAL, WARNING - CARGO BOX
-
252416-396 PANEL, LOWERPANEL, LOWER
-
262516-871 BRACKET, RETAINING - LOWER PANELBRACKET, RETAINING - LOWER PANEL
-
274506-589 TAILGATE ASSEMBLY (INC. 28-37)TAILGATE ASSEMBLY (INC. 28-37)
-
284506-526 ...PANEL, TAILGATE - INNER...PANEL, TAILGATE - INNER
-
294506-626 ...SHAFT, PIVOT - TAILGATE...SHAFT, PIVOT - TAILGATE
-
301423-083 ...SCREW, SELF-TAPPING...SCREW, SELF-TAPPING
-
312416-648 ...PAD, FOAM...PAD, FOAM
-
322416-652 ...BRACE, SUPPORT...BRACE, SUPPORT
-
332416-395 ...PANEL, TAILGATE - OUTER...PANEL, TAILGATE - OUTER
-
342411-182 ...DECAL, REFLECTOR - RED...DECAL, REFLECTOR - RED
-
352516-729 ...LATCH, TAILGATE - ASSEMBLY...LATCH, TAILGATE - ASSEMBLY
-
362416-370 ...BRACKET, SUPPORT - LATCH...BRACKET, SUPPORT - LATCH
-
378424-602 ...NUT, LOCK...NUT, LOCK
-
382416-363 BUSHINGBUSHING
-
394411-730 DECAL, TAILGATE - RIGHT - GREENDECAL, TAILGATE - RIGHT - GREEN
-
402411-212 DECAL, TAILGATE - CENTERDECAL, TAILGATE - CENTER
-
414411-731 DECAL, TAILGATE - LEFT - GREENDECAL, TAILGATE - LEFT - GREEN
