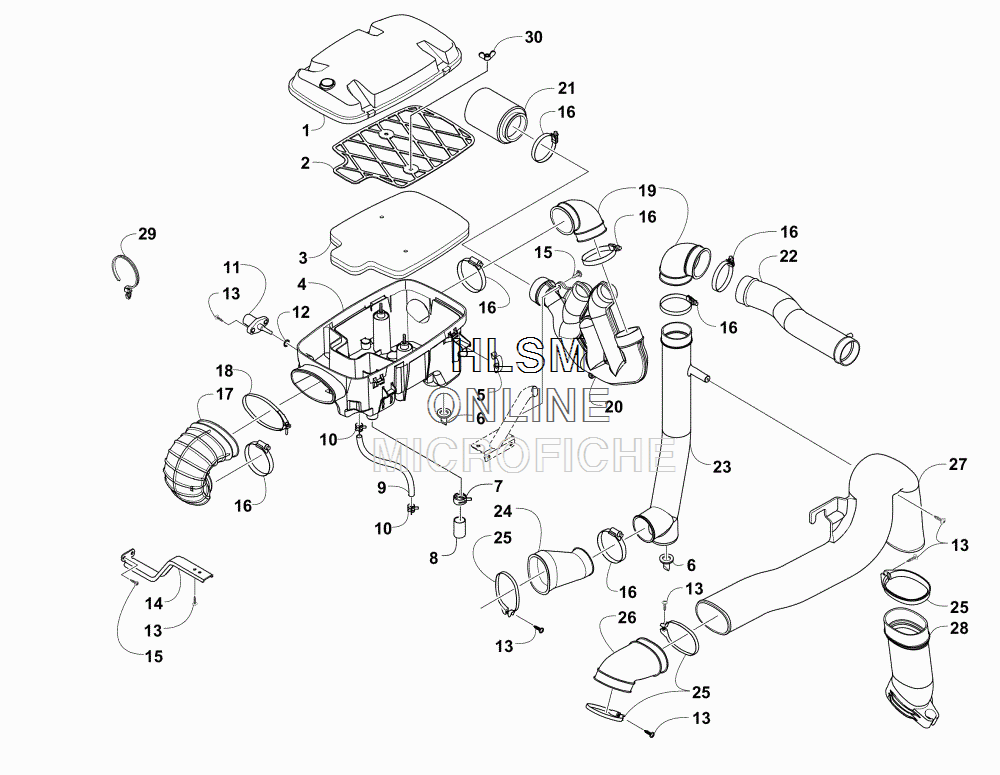

AIR INTAKE ASSEMBLY для Arctic Cat PROWLER 550 XT BLACK [U2015R2O4EUSP] - 2015 года выпуска
-
№АртикулНазвание
-
10470-877 AIR BOX, TOPAIR BOX, TOP
-
21470-030 SCREEN, AIR FILTERSCREEN, AIR FILTER
-
31470-029 FILTER, AIRFILTER, AIR
-
40570-395 HOUSING, AIR INTAKEHOUSING, AIR INTAKE
-
50423-455 CLIP, SPRINGCLIP, SPRING
-
60470-442 VALVE, AIR CLEANERVALVE, AIR CLEANER
-
71623-287 CLAMP, HOSECLAMP, HOSE
-
80423-766 CAP, DRAINCAP, DRAIN
-
90410-172 HOSE, VENT - CRANKCASEHOSE, VENT - CRANKCASE
-
100423-045 CLAMP, HOSECLAMP, HOSE
-
110430-055 SENSOR, AIR TEMPERATURE (INC. 12)SENSOR, AIR TEMPERATURE (INC. 12)
-
125507-224 ...O-RING...O-RING
-
130423-342 SCREW, SELF-TAPPING - .1875 X .75SCREW, SELF-TAPPING - .1875 X .75
-
142506-651 BRACKET, SUPPORTBRACKET, SUPPORT
-
150623-784 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
160423-019 CLAMPCLAMP
-
170470-511 BOOT, INTAKEBOOT, INTAKE
-
180423-554 CLAMPCLAMP
-
190413-098 BOOT, AIR-INBOOT, AIR-IN
-
200513-028 DUCT, AIR-INDUCT, AIR-IN
-
210470-834 FILTER, INTAKEFILTER, INTAKE
-
220413-219 DUCT, INTAKEDUCT, INTAKE
-
230413-218 DUCTDUCT
-
240413-049 BOOT, COOLING - BELTBOOT, COOLING - BELT
-
250423-550 CLAMPCLAMP
-
260413-109 DUCT, AIR-OUTDUCT, AIR-OUT
-
270413-220 DUCT, AIR-OUT - CLUTCHDUCT, AIR-OUT - CLUTCH
-
280413-226 DUCT, AIR-OUTDUCT, AIR-OUT
-
290423-075 TIE, CABLE - PUSH-MOUNTTIE, CABLE - PUSH-MOUNT
-
302623-153 NUT, WINGNUT, WING
