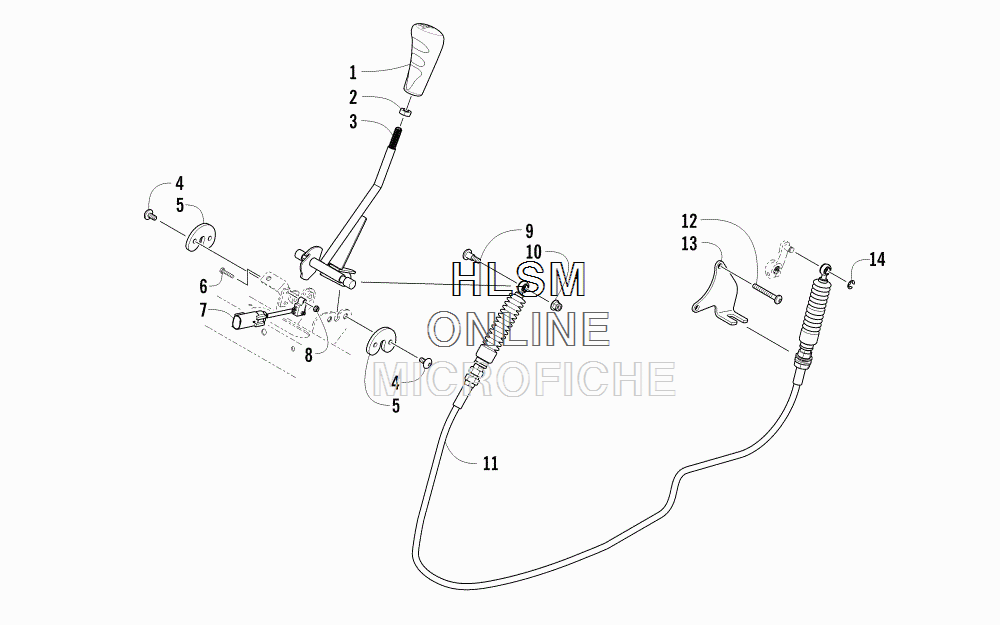

SHIFTER ASSEMBLY для Arctic Cat PROWLER 700 HDX KE CAMO [U2015P5T1PKEH] - 2015 года выпуска
-
№АртикулНазвание
-
12402-004 KNOB, SHIFTKNOB, SHIFT
-
20423-885 NUTNUT
-
31502-916 AXLE, SHIFTAXLE, SHIFT
-
40826-029 SCREW, MACHINESCREW, MACHINE
-
51402-275 RETAINER, SHIFT LINKAGERETAINER, SHIFT LINKAGE
-
61423-056 SCREW, MACHINESCREW, MACHINE
-
70409-131 SWITCH, PARKING BRAKESWITCH, PARKING BRAKE
-
81441-328 NUT, LOCKNUT, LOCK
-
90423-356 SCREW, SHOULDERSCREW, SHOULDER
-
108427-602 NUT, LOCKNUT, LOCK
-
110487-094 CABLE, SHIFT - HEAVY DUTYCABLE, SHIFT - HEAVY DUTY
-
128468-645 SCREW, MACHINESCREW, MACHINE
-
132406-894 BRACKET, SHIFT CABLE ENGINE MOUNTBRACKET, SHIFT CABLE ENGINE MOUNT
-
140124-057 E-RINGE-RING
