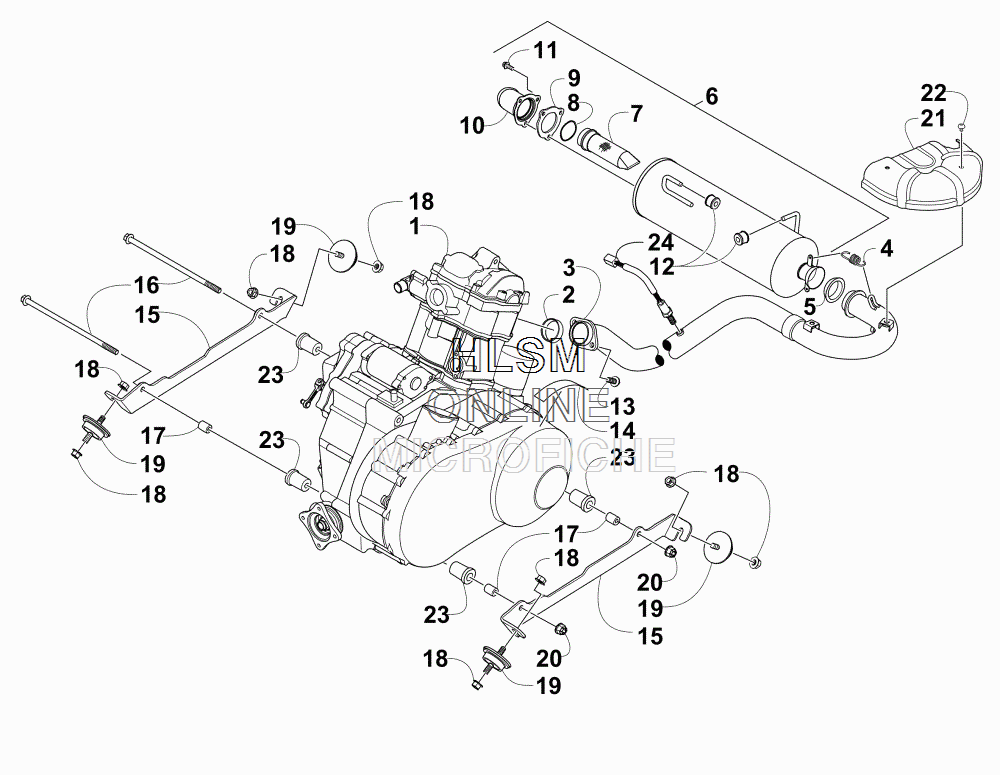

ENGINE AND EXHAUST для Arctic Cat PROWLER 700 XT BLACK [U2015R3T1PUSP] - 2015 года выпуска
-
№АртикулНазвание
-
10800-173 ENGINE, A700JENGINE, A700J
-
20412-338 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
30512-639 PIPE, EXHAUSTPIPE, EXHAUST
-
40612-668 SPRING, EXTENSIONSPRING, EXTENSION
-
50412-375 SEAL, EXHAUST PIPESEAL, EXHAUST PIPE
-
60512-675 MUFFLER - ASSEMBLY (INC. 7-11)MUFFLER - ASSEMBLY (INC. 7-11)
-
70512-647 ...SPARK ARRESTER ASSEMBLY...SPARK ARRESTER ASSEMBLY
-
81423-246 ...WASHER, WAVE...WASHER, WAVE
-
90412-675 ...GASKET, SPARK ARRESTER...GASKET, SPARK ARRESTER
-
100512-734 ...TAIL, PIPE - ASSEMBLY...TAIL, PIPE - ASSEMBLY
-
118408-616 ...SCREW, CAP...SCREW, CAP
-
120412-577 BUSHINGBUSHING
-
138408-820 SCREW, CAPSCREW, CAP
-
140411-426 DECAL, WARNING - CLUTCHDECAL, WARNING - CLUTCH
-
151506-998 BRACKET, ENGINE - RIGHTBRACKET, ENGINE - RIGHT
-
151506-999 BRACKET, ENGINE - LEFTBRACKET, ENGINE - LEFT
-
161423-064 SCREW, CAPSCREW, CAP
-
171423-025 SPACERSPACER
-
188424-002 NUTNUT
-
190408-014 MOUNT, ENGINEMOUNT, ENGINE
-
208428-002 NUT, LOCKNUT, LOCK
-
210412-462 SHIELD, HEATSHIELD, HEAT
-
228477-610 SCREW, MACHINESCREW, MACHINE
-
230801-258 BUSHING, ENGINE MOUNTBUSHING, ENGINE MOUNT
-
240630-302 SENSOR, OXYGENSENSOR, OXYGEN
