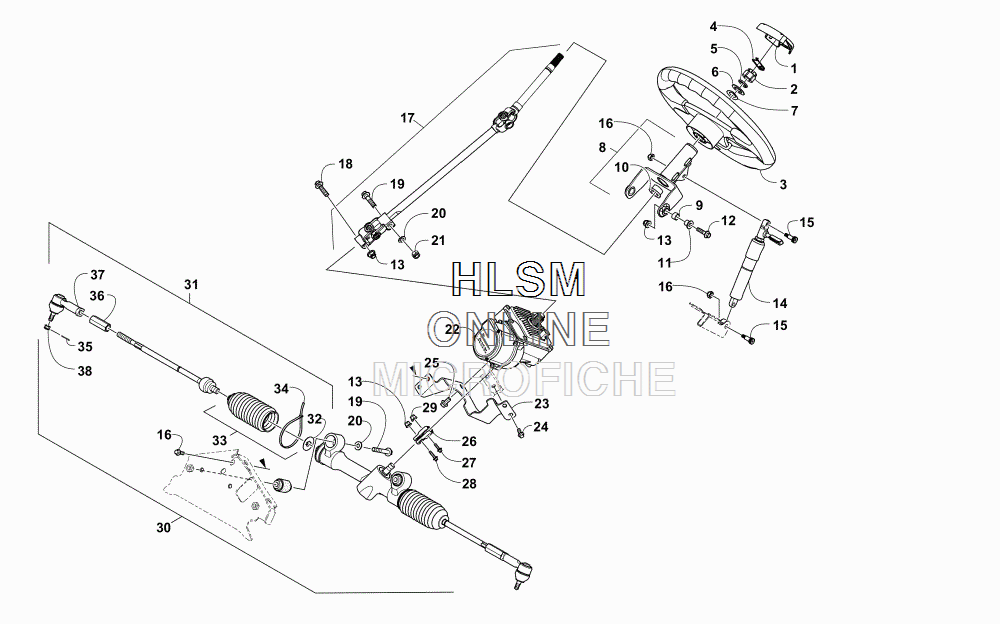

STEERING ASSEMBLY для Arctic Cat PROWLER 700 XT CAMO [U2015R3T1PUSH] - 2015 года выпуска
-
№АртикулНазвание
-
14406-739 CAP, STEERING WHEELCAP, STEERING WHEEL
-
20423-884 NUTNUT
-
30405-398 WHEEL, STEERINGWHEEL, STEERING
-
41423-045 CLIP, RETAININGCLIP, RETAINING
-
51423-110 RING, RETAININGRING, RETAINING
-
60828-071 WASHERWASHER
-
70423-558 WASHERWASHER
-
80505-891 TILT STEERING - SUB ASSEMBLY (INC. 9-10)TILT STEERING - SUB ASSEMBLY (INC. 9-10)
-
90405-405 ...BUSHING...BUSHING
-
100405-473 ...BUSHING...BUSHING
-
110423-669 SPACERSPACER
-
128408-831 SCREW, CAPSCREW, CAP
-
138427-802 NUT, LOCKNUT, LOCK
-
140405-468 LIFT, SUPPORTLIFT, SUPPORT
-
151423-250 SCREW, SHOULDERSCREW, SHOULDER
-
160623-056 NUT, LOCKNUT, LOCK
-
170405-534 SHAFT, STEERINGSHAFT, STEERING
-
188408-840 SCREW, CAPSCREW, CAP
-
198408-070 SCREW, CAPSCREW, CAP
-
200623-728 WASHERWASHER
-
218422-002 NUT, LOCKNUT, LOCK
-
220505-930 EPS ASSEMBLYEPS ASSEMBLY
-
237506-120 BRACKETBRACKET
-
248409-020 SCREW, CAPSCREW, CAP
-
258408-816 SCREW, CAPSCREW, CAP
-
260405-440 COUPLER, STEERINGCOUPLER, STEERING
-
271423-076 SCREW, CAPSCREW, CAP
-
281423-053 SCREW, CAPSCREW, CAP
-
298427-602 NUT, LOCKNUT, LOCK
-
300505-689 HOUSING, RACK AND PINION (INC. 31-37)HOUSING, RACK AND PINION (INC. 31-37)
-
310505-772 ...TIE ROD - ASSEMBLY (INC. 32-37)...TIE ROD - ASSEMBLY (INC. 32-37)
-
320405-428 ......PLATE, RETAINING......PLATE, RETAINING
-
330505-745 ...KIT, TIE ROD BOOT (INC. 34-35)...KIT, TIE ROD BOOT (INC. 34-35)
-
340123-903 ......TIE, CABLE - 11.5 IN.......TIE, CABLE - 11.5 IN.
-
350623-175 ......PIN, COTTER......PIN, COTTER
-
360505-640 ...KIT, NUT...KIT, NUT
-
370505-743 ...KIT, TIE ROD END...KIT, TIE ROD END
-
380423-072 NUTNUT
