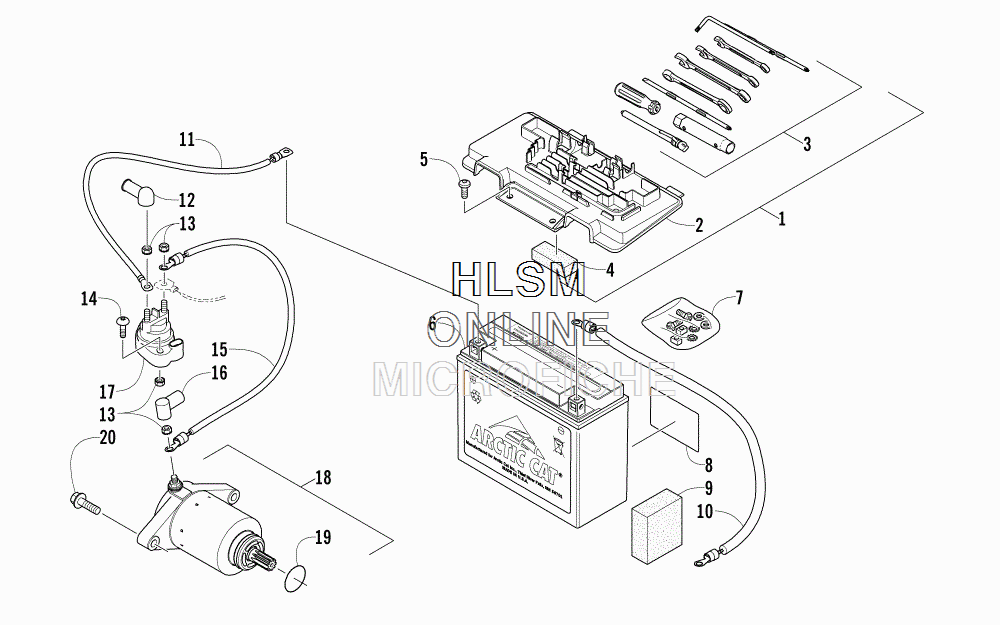

BATTERY AND STARTER ASSEMBLY для Arctic Cat TRV 500 LIME [A2015TBK4CUSZ] - 2015 года выпуска
-
№АртикулНазвание
-
15993-040 TRAY, TOOL - ASSEMBLY (INC. 2-4)TRAY, TOOL - ASSEMBLY (INC. 2-4)
-
24406-136 ...COVER, BATTERY/TOOL TRAY...COVER, BATTERY/TOOL TRAY
-
30444-122 ...KIT, TOOL...KIT, TOOL
-
40417-016 ...PAD, BATTERY...PAD, BATTERY
-
58476-620 SCREW, MACHINESCREW, MACHINE
-
60745-406 BATTERYBATTERY
-
70445-082 KIT, HARDWAREKIT, HARDWARE
-
80645-430 DECAL, WARNINGDECAL, WARNING
-
90417-017 FOAM, BATTERYFOAM, BATTERY
-
100445-079 CABLE, BATTERY/GROUNDCABLE, BATTERY/GROUND
-
110445-062 CABLE, BATTERY/SOLENOIDCABLE, BATTERY/SOLENOID
-
120645-327 BOOT, TERMINAL - SOLENOIDBOOT, TERMINAL - SOLENOID
-
130623-038 NUT W/WASHERNUT W/WASHER
-
148476-625 SCREW, MACHINESCREW, MACHINE
-
150445-064 CABLE, SOLENOID/STARTER (INC. 16)CABLE, SOLENOID/STARTER (INC. 16)
-
160645-019 ...BOOT, TERMINAL...BOOT, TERMINAL
-
170445-058 SOLENOID,STARTER RELAYSOLENOID,STARTER RELAY
-
183305-954 MOTOR, STARTER - ASSEMBLY (INC. 19)MOTOR, STARTER - ASSEMBLY (INC. 19)
-
193304-104 ...O-RING...O-RING
-
203305-946 SCREW, CAPSCREW, CAP
