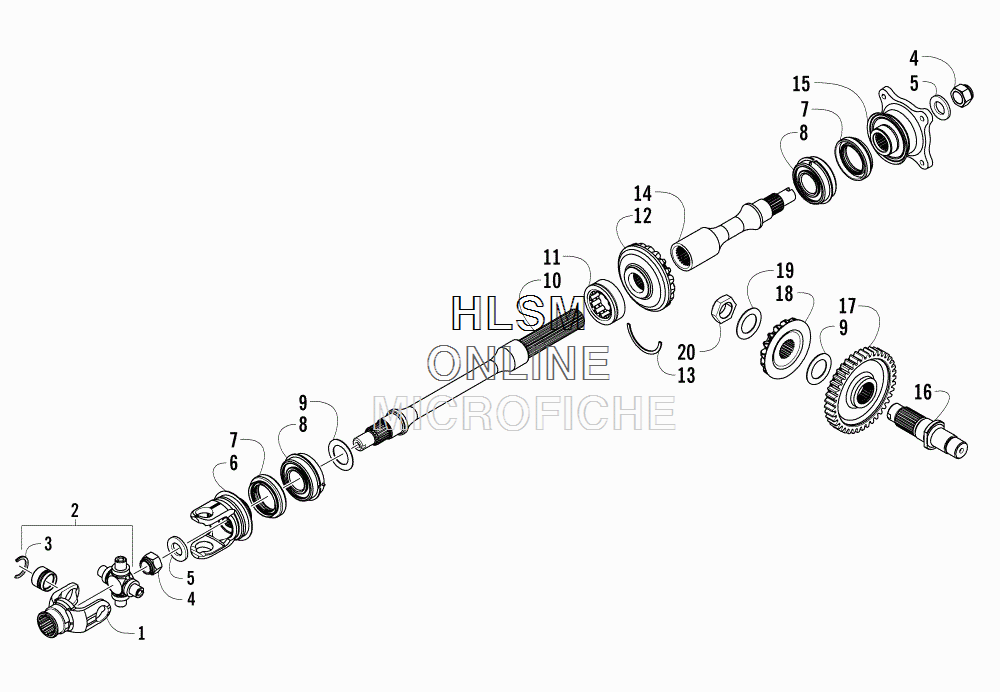

SECONDARY DRIVE ASSEMBLY для Arctic Cat TRV 550 XT ORANGE [A2015TGO1PUSU] - 2015 года выпуска
-
№АртикулНазвание
-
10819-063 YOKE, PROPELLER SHAFT JOINTYOKE, PROPELLER SHAFT JOINT
-
21402-164 JOINT, UNIVERSAL - SET (INC. 3)JOINT, UNIVERSAL - SET (INC. 3)
-
30423-450 ...RING, RETAINING...RING, RETAINING
-
40827-013 NUTNUT
-
50828-020 WASHERWASHER
-
60819-061 YOKE, DRIVE OUTPUTYOKE, DRIVE OUTPUT
-
70830-043 SEAL, OILSEAL, OIL
-
80832-017 BEARINGBEARING
-
90828-021 SHIM, 25 X 34 X 0.25 MMSHIM, 25 X 34 X 0.25 MM
-
90828-022 SHIM, 25 X 34 X 0.30 MMSHIM, 25 X 34 X 0.30 MM
-
90828-023 SHIM, 25 X 34 X 0.70 MMSHIM, 25 X 34 X 0.70 MM
-
90828-024 SHIM, 25 X 34 X 0.90 MMSHIM, 25 X 34 X 0.90 MM
-
90828-025 SHIM, 25 X 34 X 0.95 MMSHIM, 25 X 34 X 0.95 MM
-
90828-026 SHIM, 25 X 34 X 1.00 MMSHIM, 25 X 34 X 1.00 MM
-
90828-027 SHIM, 25 X 34 X 1.05 MMSHIM, 25 X 34 X 1.05 MM
-
90828-028 SHIM, 25 X 34 X 1.10 MMSHIM, 25 X 34 X 1.10 MM
-
90828-029 SHIM, 25 X 34 X 1.15 MMSHIM, 25 X 34 X 1.15 MM
-
100819-115 SHAFT, SECONDARY DRIVEN - FRONTSHAFT, SECONDARY DRIVEN - FRONT
-
110832-016 BEARING, DRIVEN GEARBEARING, DRIVEN GEAR
-
120822-106 GEAR, SECONDARY DRIVENGEAR, SECONDARY DRIVEN
-
130819-011 RING, DRIVEN BEARINGRING, DRIVEN BEARING
-
140819-053 SHAFT, SECONDARY DRIVEN - REARSHAFT, SECONDARY DRIVEN - REAR
-
150819-005 FLANGE, OUTPUT JOINT - REARFLANGE, OUTPUT JOINT - REAR
-
160822-067 SHAFT, OUTPUTSHAFT, OUTPUT
-
170822-009 GEAR, DRIVENGEAR, DRIVEN
-
180822-127 GEAR, SECONDARY DRIVEGEAR, SECONDARY DRIVE
-
190828-019 WASHER, THRUSTWASHER, THRUST
-
200827-070 NUTNUT
