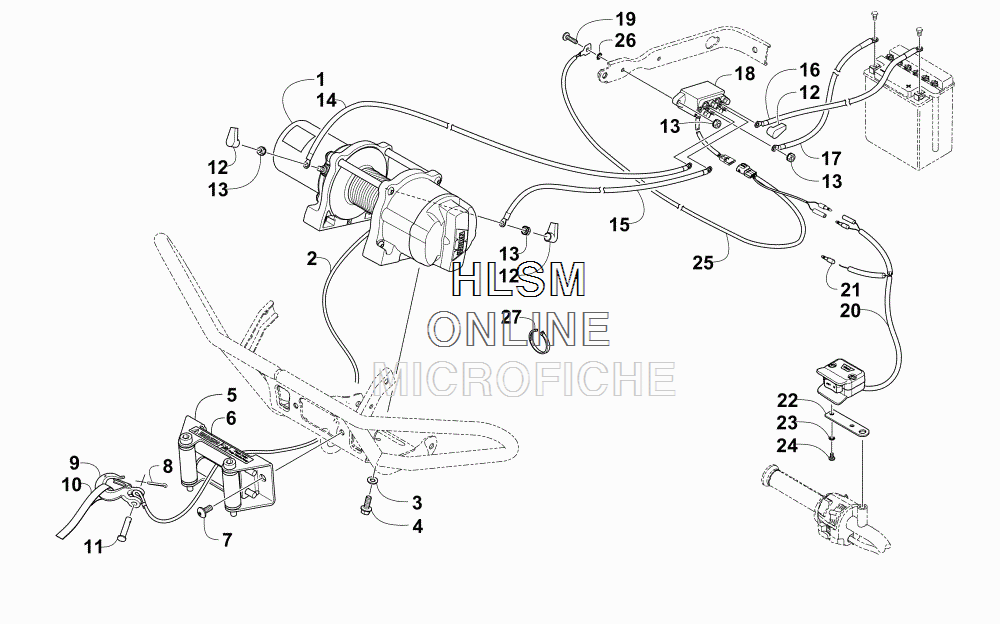

WINCH ASSEMBLY для Arctic Cat TRV 700 XT EFT RED [A2015TGT1PETE] - 2015 года выпуска
-
№АртикулНазвание
-
10409-166 WINCH (INC. 2)WINCH (INC. 2)
-
20441-061 ...CABLE, WINCH...CABLE, WINCH
-
38051-246 WASHER, LOCKWASHER, LOCK
-
48408-820 SCREW, CAPSCREW, CAP
-
50441-403 ROLLER, WINCH (INC. 6)ROLLER, WINCH (INC. 6)
-
60411-474 ...DECAL, WARNING - PINCH POINT...DECAL, WARNING - PINCH POINT
-
78468-820 SCREW, MACHINESCREW, MACHINE
-
80623-175 PIN, COTTERPIN, COTTER
-
91441-833 HOOK, WINCHHOOK, WINCH
-
101441-781 STRAPSTRAP
-
111441-834 PINPIN
-
120645-019 BOOT, TERMINALBOOT, TERMINAL
-
130623-038 NUT W/WASHERNUT W/WASHER
-
140445-068 CABLE, WINCH/SOLENOID - YELLOWCABLE, WINCH/SOLENOID - YELLOW
-
150445-069 CABLE, WINCH/SOLENOID - BLUECABLE, WINCH/SOLENOID - BLUE
-
160445-087 CABLE, SOLENOID/BATTERY - REDCABLE, SOLENOID/BATTERY - RED
-
171441-112 CABLE, SOLENOID/BATTERY - BLACKCABLE, SOLENOID/BATTERY - BLACK
-
180409-066 SOLENOIDSOLENOID
-
198476-625 SCREW, MACHINESCREW, MACHINE
-
200505-552 SWITCH, WINCH - ASSEMBLY (INC. 21-26)SWITCH, WINCH - ASSEMBLY (INC. 21-26)
-
211441-428 ...CONNECTOR, HARNESS...CONNECTOR, HARNESS
-
220505-551 ...BRACKET, WINCH SWITCH...BRACKET, WINCH SWITCH
-
238052-093 ...WASHER, INTERNAL TOOTH LOCK...WASHER, INTERNAL TOOTH LOCK
-
248009-243 ...SCREW, MACHINE...SCREW, MACHINE
-
250486-276 ...HARNESS, ADAPTER - SOLENOID...HARNESS, ADAPTER - SOLENOID
-
268053-212 ...WASHER, EXTERNAL TOOTH LOCK...WASHER, EXTERNAL TOOTH LOCK
-
270123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
-
270123-903 TIE, CABLE - 11.5 IN.TIE, CABLE - 11.5 IN.
