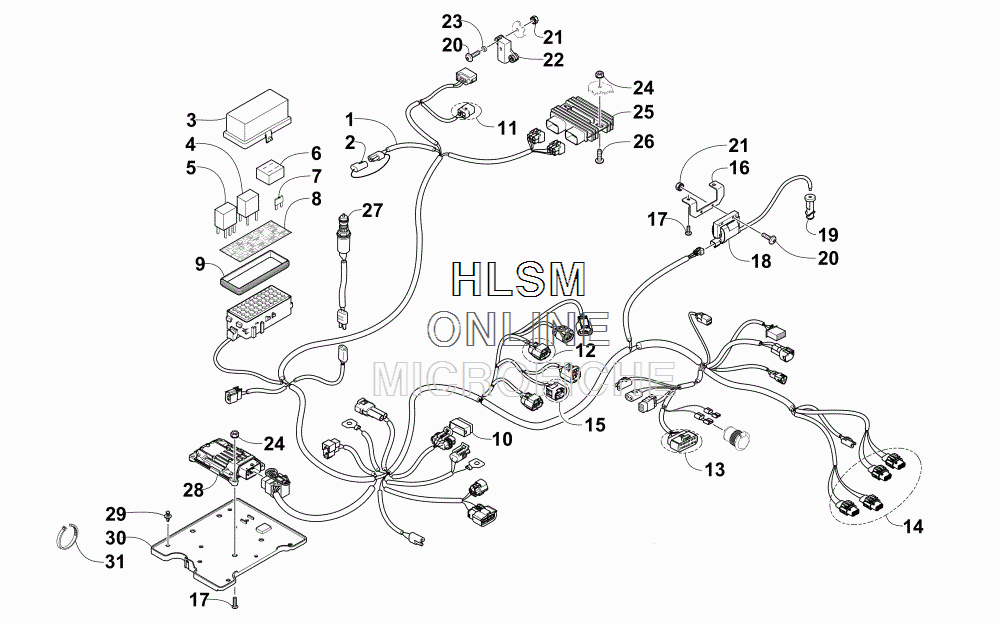

WIRING HARNESS ASSEMBLY для Arctic Cat TRV 700 XT ORANGE [A2015TGT1POSU] (INTERNATIONAL) - 2015 года выпуска
-
№АртикулНазвание
-
10486-481 HARNESS, MAIN (INC. 2-10)HARNESS, MAIN (INC. 2-10)
-
20486-164 ...TETHER, ACCESSORY CONNECTOR...TETHER, ACCESSORY CONNECTOR
-
30430-085 ...COVER, FUSE BLOCK...COVER, FUSE BLOCK
-
40430-045 ...RELAY (4-PIN) - 20 AMP...RELAY (4-PIN) - 20 AMP
-
50430-033 ...RELAY (5-PIN) - 30 AMP...RELAY (5-PIN) - 30 AMP
-
60430-037 ...HOLDER, FUSE...HOLDER, FUSE
-
70430-032 ...FUSE - 10 AMP...FUSE - 10 AMP
-
70430-031 ...FUSE - 15 AMP...FUSE - 15 AMP
-
70430-030 ...FUSE - 30 AMP...FUSE - 30 AMP
-
83411-968 ...DECAL, FUSE BLOCK...DECAL, FUSE BLOCK
-
90430-086 ...SEAL...SEAL
-
100430-103 ...COVER, DIAGNOSTICS CONNECTOR...COVER, DIAGNOSTICS CONNECTOR
-
111436-416 REPAIR KIT, CONNECTOR - TILT SENSORREPAIR KIT, CONNECTOR - TILT SENSOR
-
120437-071 REPAIR KIT, CONNECTOR - IDLE SPEED CONTROLREPAIR KIT, CONNECTOR - IDLE SPEED CONTROL
-
131436-818 REPAIR KIT, CONNECTOR - CAN GAUGEREPAIR KIT, CONNECTOR - CAN GAUGE
-
141436-289 REPAIR KIT, CONNECTOR - HEADLIGHTREPAIR KIT, CONNECTOR - HEADLIGHT
-
151436-483 REPAIR KIT, 3P MAP CONNECTORREPAIR KIT, 3P MAP CONNECTOR
-
164406-029 BRACKET, MOUNTING - COILBRACKET, MOUNTING - COIL
-
178476-620 SCREW, MACHINESCREW, MACHINE
-
180824-071 COIL, IGNITION - ASSEMBLY (INC. 19)COIL, IGNITION - ASSEMBLY (INC. 19)
-
190824-049 ...CAP, SPARK PLUG...CAP, SPARK PLUG
-
208468-425 SCREW, MACHINESCREW, MACHINE
-
210423-493 NUT W/WASHERNUT W/WASHER
-
220409-064 SENSOR, TILTSENSOR, TILT
-
230123-802 WASHERWASHER
-
240623-038 NUT W/WASHERNUT W/WASHER
-
250824-078 REGULATOR, VOLTAGEREGULATOR, VOLTAGE
-
268476-625 SCREW, MACHINESCREW, MACHINE
-
270409-089 SWITCH, BRAKE - ASSEMBLYSWITCH, BRAKE - ASSEMBLY
-
280530-121 ECMECM
-
290623-362 CLIP, RETAININGCLIP, RETAINING
-
302416-181 TRAY, ELECTRICALTRAY, ELECTRICAL
-
310123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
-
310123-903 TIE, CABLE - 11.5 IN.TIE, CABLE - 11.5 IN.
