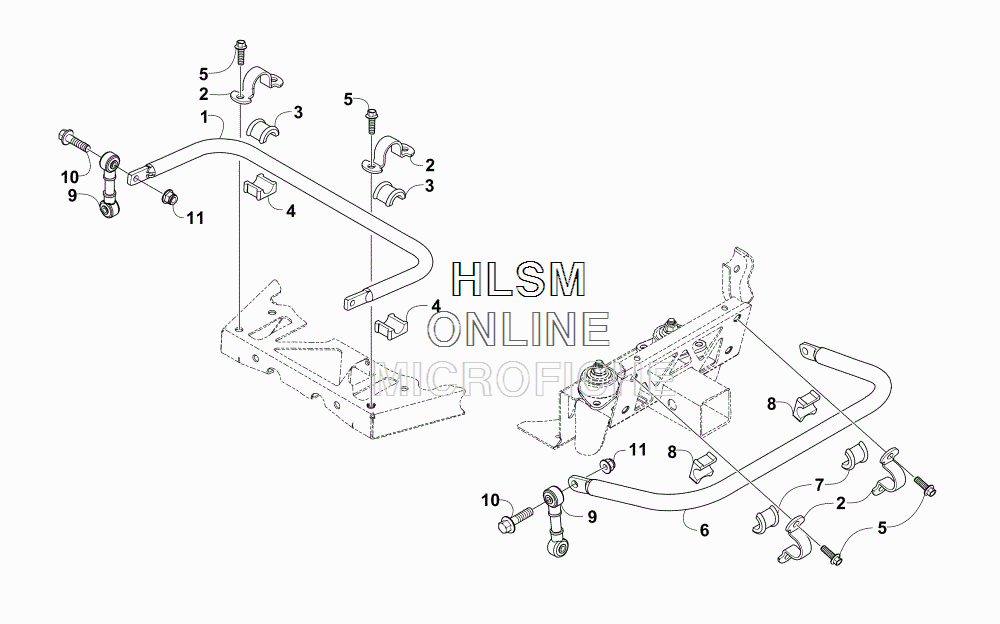

SWAY BAR ASSEMBLIES для Arctic Cat WILDCAT TRAIL RED [U2015W5T4COSR] (INTERNATIONAL) - 2015 года выпуска
-
№АртикулНазвание
-
10503-728 BAR, SWAY - FRONTBAR, SWAY - FRONT
-
20404-135 CLAMP, SWAY BAR BUSHINGCLAMP, SWAY BAR BUSHING
-
30404-094 BUSHING, SWAY BARBUSHING, SWAY BAR
-
40404-095 BUSHING, SWAY BARBUSHING, SWAY BAR
-
58409-016 SCREW, CAPSCREW, CAP
-
60504-835 BAR, SWAY - BLACKBAR, SWAY - BLACK
-
70404-282 BUSHING, SWAY BARBUSHING, SWAY BAR
-
80404-283 BUSHING, SWAY BARBUSHING, SWAY BAR
-
93603-295 LINK, SWAY BARLINK, SWAY BAR
-
108413-842 SCREW, CAPSCREW, CAP
-
118427-802 NUT, LOCKNUT, LOCK
