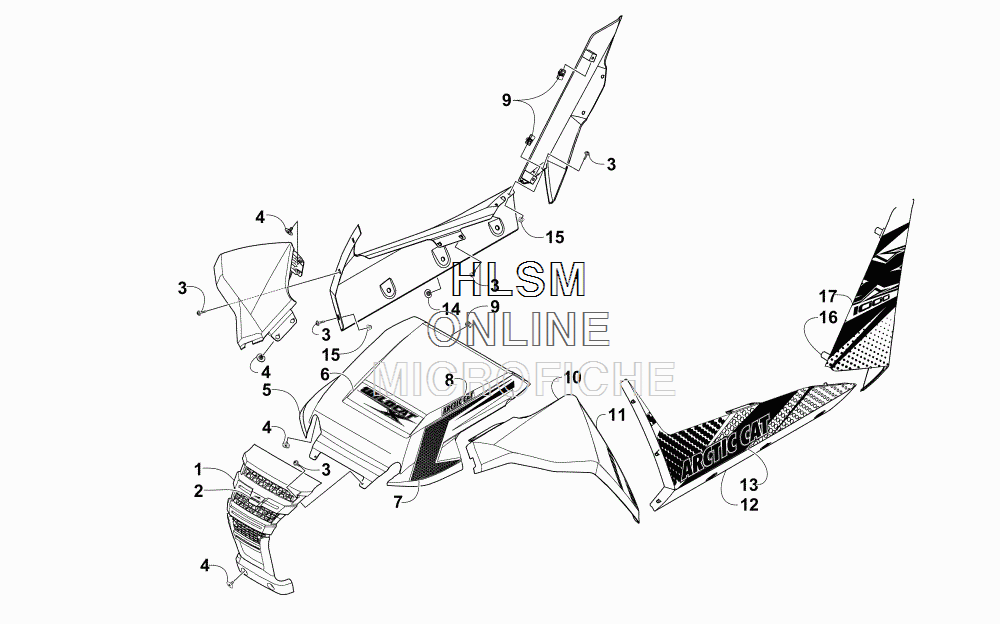

FRONT AND SIDE PANEL ASSEMBLIES для Arctic Cat WILDCAT X GREEN [U2015WSW1PUSX] - 2015 года выпуска
-
№АртикулНазвание
-
12416-685 FASCIA, FRONT - BLACKFASCIA, FRONT - BLACK
-
22411-943 DECAL, ARCTIC CATDECAL, ARCTIC CAT
-
30423-609 SCREW, MACHINESCREW, MACHINE
-
40423-101 SCREW, SHOULDERSCREW, SHOULDER
-
55506-285 HOOD - GREENHOOD - GREEN
-
64411-502 DECAL, "WILDCAT X" - GREENDECAL, "WILDCAT X" - GREEN
-
74411-500 DECAL, HOOD - FORWARD - RIGHT - GREENDECAL, HOOD - FORWARD - RIGHT - GREEN
-
74411-501 DECAL, HOOD - FORWARD - LEFT - GREENDECAL, HOOD - FORWARD - LEFT - GREEN
-
84411-276 DECAL, HOOD - SIDE - GREENDECAL, HOOD - SIDE - GREEN
-
90423-577 CLIP, U-NUTCLIP, U-NUT
-
105506-278 FENDER, FRONT - RIGHT - GREENFENDER, FRONT - RIGHT - GREEN
-
105506-279 FENDER, FRONT - LEFT - GREENFENDER, FRONT - LEFT - GREEN
-
114411-270 DECAL, FENDER - FRONT - RIGHT - GREENDECAL, FENDER - FRONT - RIGHT - GREEN
-
114411-271 DECAL, FENDER - FRONT - LEFT - GREENDECAL, FENDER - FRONT - LEFT - GREEN
-
122416-988 PANEL, SIDE - LOWER FRONT - RIGHT - BLACKPANEL, SIDE - LOWER FRONT - RIGHT - BLACK
-
122416-989 PANEL, SIDE - LOWER FRONT - LEFT - BLACKPANEL, SIDE - LOWER FRONT - LEFT - BLACK
-
134411-498 DECAL, LOWER SIDE PANEL - RIGHT - GREENDECAL, LOWER SIDE PANEL - RIGHT - GREEN
-
134411-499 DECAL, LOWER SIDE PANEL - LEFT - GREENDECAL, LOWER SIDE PANEL - LEFT - GREEN
-
141423-133 SCREW, SHOULDERSCREW, SHOULDER
-
158427-602 NUT, LOCKNUT, LOCK
-
162416-990 PANEL, SIDE - UPPER REAR - RIGHT - BLACKPANEL, SIDE - UPPER REAR - RIGHT - BLACK
-
162416-991 PANEL, SIDE - UPPER REAR - LEFT - BLACKPANEL, SIDE - UPPER REAR - LEFT - BLACK
-
174411-272 DECAL, UPPER SIDE PANEL - RIGHT - GREENDECAL, UPPER SIDE PANEL - RIGHT - GREEN
-
174411-273 DECAL, UPPER SIDE PANEL - LEFT - GREENDECAL, UPPER SIDE PANEL - LEFT - GREEN
