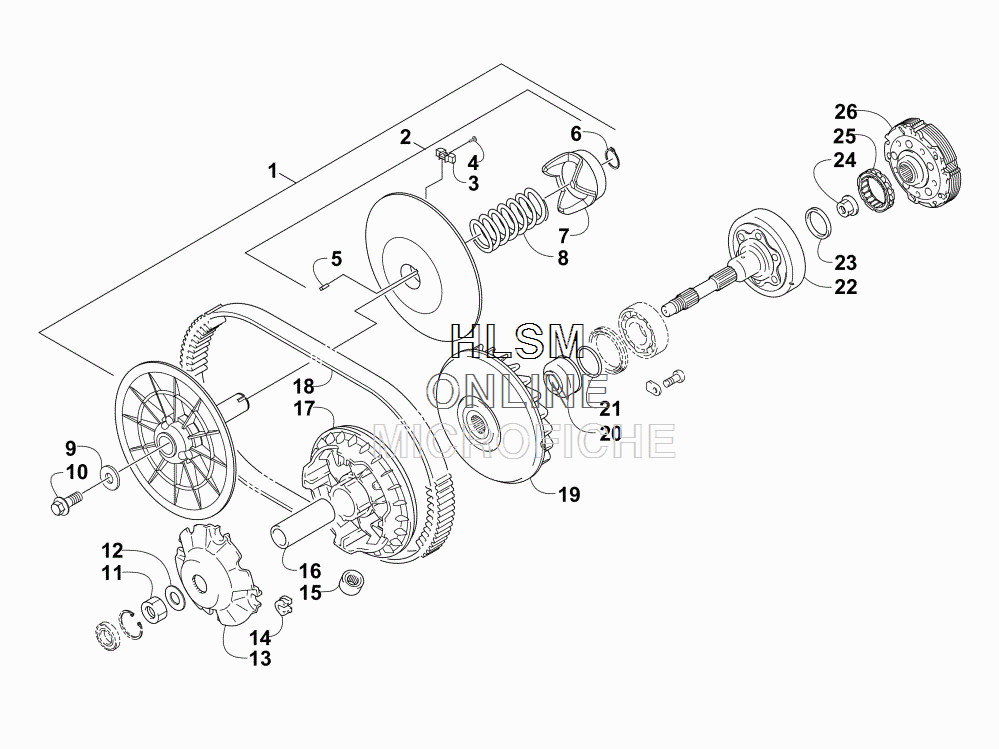

TRANSMISSION ASSEMBLY для Arctic Cat XR 550 LTD BLACK [A2015XDO1POSO] (INTERNATIONAL) - 2015 года выпуска
-
№АртикулНазвание
-
10823-535 PULLEY, DRIVEN - ASSEMBLY (INC. 2-8)PULLEY, DRIVEN - ASSEMBLY (INC. 2-8)
-
20823-554 ...PULLEY, DRIVEN - UNCALIBRATED (INC. 3-6)...PULLEY, DRIVEN - UNCALIBRATED (INC. 3-6)
-
30823-454 ......SHOE, CAM......SHOE, CAM
-
40823-177 ......SCREW, MACHINE......SCREW, MACHINE
-
50823-383 ......KEY......KEY
-
60823-455 ......RING, SNAP - EXTERNAL......RING, SNAP - EXTERNAL
-
70823-453 ...CAM...CAM
-
80823-377 ...SPRING - BLACK...SPRING - BLACK
-
90623-929 WASHERWASHER
-
108413-241 SCREW, CAPSCREW, CAP
-
110827-010 NUTNUT
-
120828-106 WASHERWASHER
-
130823-276 PLATE, MOVABLE DRIVE FACEPLATE, MOVABLE DRIVE FACE
-
140823-277 DAMPER, MOVABLE DRIVE FACEDAMPER, MOVABLE DRIVE FACE
-
150823-167 ROLLER, MOVABLE DRIVE (BLUE)ROLLER, MOVABLE DRIVE (BLUE)
-
160823-360 SPACERSPACER
-
170823-273 FACE, MOVABLE DRIVEFACE, MOVABLE DRIVE
-
180823-013 BELT, DRIVEBELT, DRIVE
-
190823-272 FACE, FIXED DRIVEFACE, FIXED DRIVE
-
200823-015 SPACER, FIXED DRIVE FACESPACER, FIXED DRIVE FACE
-
210470-531 O-RINGO-RING
-
220823-556 HOUSING, CLUTCH - ASSEMBLYHOUSING, CLUTCH - ASSEMBLY
-
230830-189 SEALSEAL
-
240827-011 NUTNUT
-
250823-018 CLUTCH, ONE-WAYCLUTCH, ONE-WAY
-
260823-484 CLUTCH, CENTRIFUGAL - 6 PLATECLUTCH, CENTRIFUGAL - 6 PLATE
