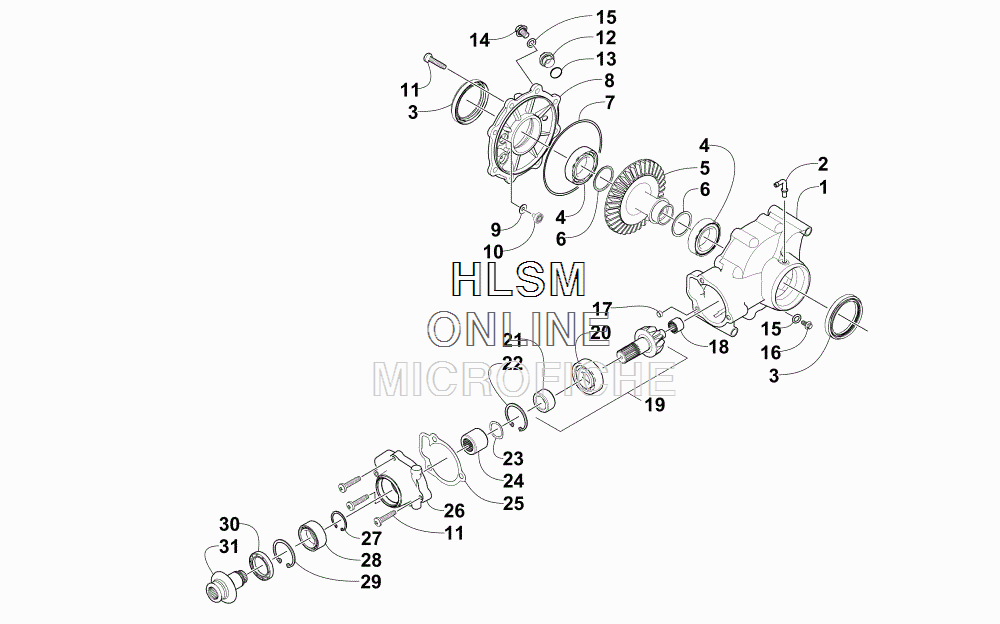

REAR DRIVE GEARCASE ASSEMBLY для Arctic Cat XR 550 LTD BLACK [A2015XDO1PUSO] - 2015 года выпуска
-
№АртикулНазвание
-
-2502-153 GEARCASE, REARGEARCASE, REAR
-
11502-896 HOUSING, GEARCASEHOUSING, GEARCASE
-
22402-162 FITTING, ELBOWFITTING, ELBOW
-
32402-240 SEALSEAL
-
40402-393 BEARINGBEARING
-
51402-033 GEAR, RING - 34TGEAR, RING - 34T
-
60402-405 SHIM, 41 X 49 X 1.3 MMSHIM, 41 X 49 X 1.3 MM
-
60402-406 SHIM, 41 X 49 X 1.4 MMSHIM, 41 X 49 X 1.4 MM
-
60402-407 SHIM, 41 X 49 X 1.5 MMSHIM, 41 X 49 X 1.5 MM
-
60402-408 SHIM, 41 X 49 X 1.6 MMSHIM, 41 X 49 X 1.6 MM
-
60402-409 SHIM, 41 X 49 X 1.7 MMSHIM, 41 X 49 X 1.7 MM
-
70423-149 O-RINGO-RING
-
81502-897 COVER, GEARCASECOVER, GEARCASE
-
90402-429 SHIM, 6.3 X 18 X 1.3 MMSHIM, 6.3 X 18 X 1.3 MM
-
90402-430 SHIM, 6.3 X 18 X 1.4 MMSHIM, 6.3 X 18 X 1.4 MM
-
90402-431 SHIM, 6.3 X 18 X 1.5 MMSHIM, 6.3 X 18 X 1.5 MM
-
90402-432 SHIM, 6.3 X 18 X 1.6 MMSHIM, 6.3 X 18 X 1.6 MM
-
90402-433 SHIM, 6.3 X 18 X 1.7 MMSHIM, 6.3 X 18 X 1.7 MM
-
100402-326 BUTTON, THRUSTBUTTON, THRUST
-
110423-118 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
120402-333 PLUG, FILL (INC. 13)PLUG, FILL (INC. 13)
-
130423-154 ...O-RING...O-RING
-
141402-211 PLUG, OIL LEVEL (INC. ONE NO. 15)PLUG, OIL LEVEL (INC. ONE NO. 15)
-
150423-153 ...O-RING...O-RING
-
161402-210 PLUG, MAGNETIC (INC. ONE NO. 15)PLUG, MAGNETIC (INC. ONE NO. 15)
-
170402-411 PIN, DOWELPIN, DOWEL
-
180402-328 BEARINGBEARING
-
191502-851 GEAR, PINION - ASSEMBLY - 11T (INC. 20-21)GEAR, PINION - ASSEMBLY - 11T (INC. 20-21)
-
200402-327 ...BEARING...BEARING
-
211402-977 ...COLLAR, RETAINING...COLLAR, RETAINING
-
221423-067 RING, RETAININGRING, RETAINING
-
230402-982 WASHER, WAVEWASHER, WAVE
-
240402-981 COLLAR, SHAFTCOLLAR, SHAFT
-
250402-947 GASKET, FLANGEGASKET, FLANGE
-
260502-529 HOUSING, PINIONHOUSING, PINION
-
270423-417 RING, RETAININGRING, RETAINING
-
281402-043 BEARINGBEARING
-
290423-423 RING, RETAININGRING, RETAINING
-
301402-011 SEALSEAL
-
312502-156 SHAFT, INPUTSHAFT, INPUT
