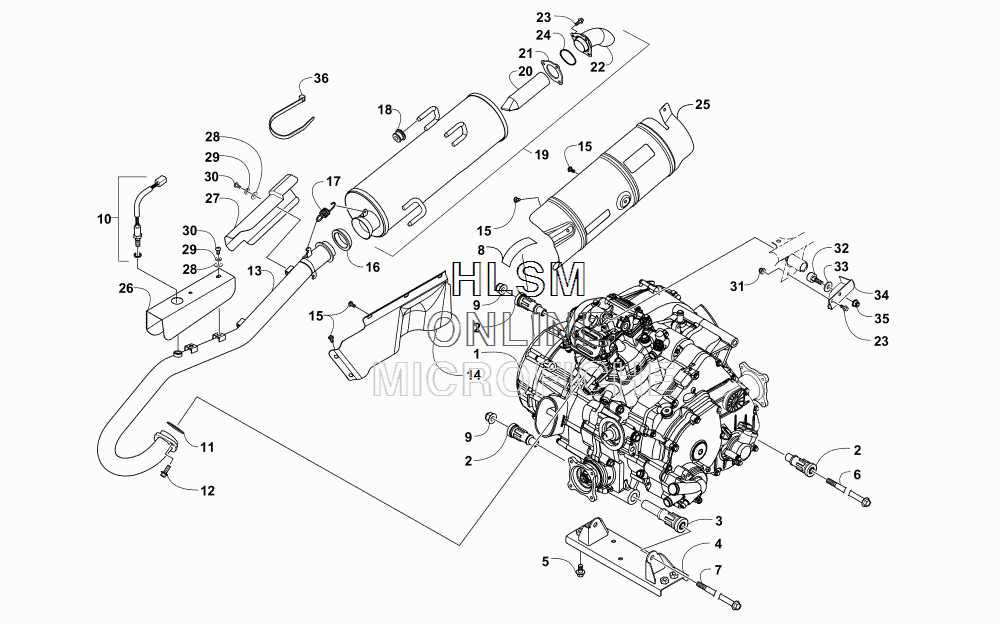

ENGINE AND EXHAUST для Arctic Cat XR 550 XT ORANGE [A2015XCO1PUSU] - 2015 года выпуска
-
№АртикулНазвание
-
10800-169 ENGINE (INC. 2-3)ENGINE (INC. 2-3)
-
20801-129 ...MOUNT, RUBBER - ENGINE...MOUNT, RUBBER - ENGINE
-
30801-122 ...MOUNT, RUBBER - ENGINE...MOUNT, RUBBER - ENGINE
-
40508-032 BRACKET, ENGINE - FRONTBRACKET, ENGINE - FRONT
-
58408-816 SCREW, CAPSCREW, CAP
-
60423-451 SCREW, CAPSCREW, CAP
-
70423-405 SCREW, CAPSCREW, CAP
-
80411-426 DECAL, WARNING - CLUTCHDECAL, WARNING - CLUTCH
-
98428-002 NUT, LOCKNUT, LOCK
-
100630-302 SENSOR, OXYGENSENSOR, OXYGEN
-
110412-338 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
128408-820 SCREW, CAPSCREW, CAP
-
130512-748 PIPE, EXHAUST - PAINTED BLACKPIPE, EXHAUST - PAINTED BLACK
-
140412-785 SHIELD, EXHAUST PIPESHIELD, EXHAUST PIPE
-
151623-490 SCREW, CAPSCREW, CAP
-
160412-375 SEAL, EXHAUST PIPESEAL, EXHAUST PIPE
-
170612-668 SPRING, EXTENSIONSPRING, EXTENSION
-
180412-544 BUSHINGBUSHING
-
190512-735 MUFFLER - ASSEMBLY (INC. 20-23)MUFFLER - ASSEMBLY (INC. 20-23)
-
200512-647 ...SPARK ARRESTER ASSEMBLY...SPARK ARRESTER ASSEMBLY
-
210412-675 ...GASKET, SPARK ARRESTER...GASKET, SPARK ARRESTER
-
220512-739 ...PIPE, TAIL - BLACK...PIPE, TAIL - BLACK
-
238408-616 ...SCREW, CAP...SCREW, CAP
-
241423-246 WASHER, WAVEWASHER, WAVE
-
250412-788 SHIELD, PIPE - MUFFLERSHIELD, PIPE - MUFFLER
-
260412-854 SHIELD, EXHAUSTSHIELD, EXHAUST
-
270412-853 SHIELD, EXHAUSTSHIELD, EXHAUST
-
288050-223 WASHER, FLATWASHER, FLAT
-
298053-212 WASHER, LOCKWASHER, LOCK
-
300423-361 SCREW, MACHINESCREW, MACHINE
-
318427-602 NUT, LOCKNUT, LOCK
-
321423-299 BUMPERBUMPER
-
338450-127 WASHERWASHER
-
340408-062 BRACKET, HEAD MOUNTBRACKET, HEAD MOUNT
-
358427-802 NUT, LOCKNUT, LOCK
-
360123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
