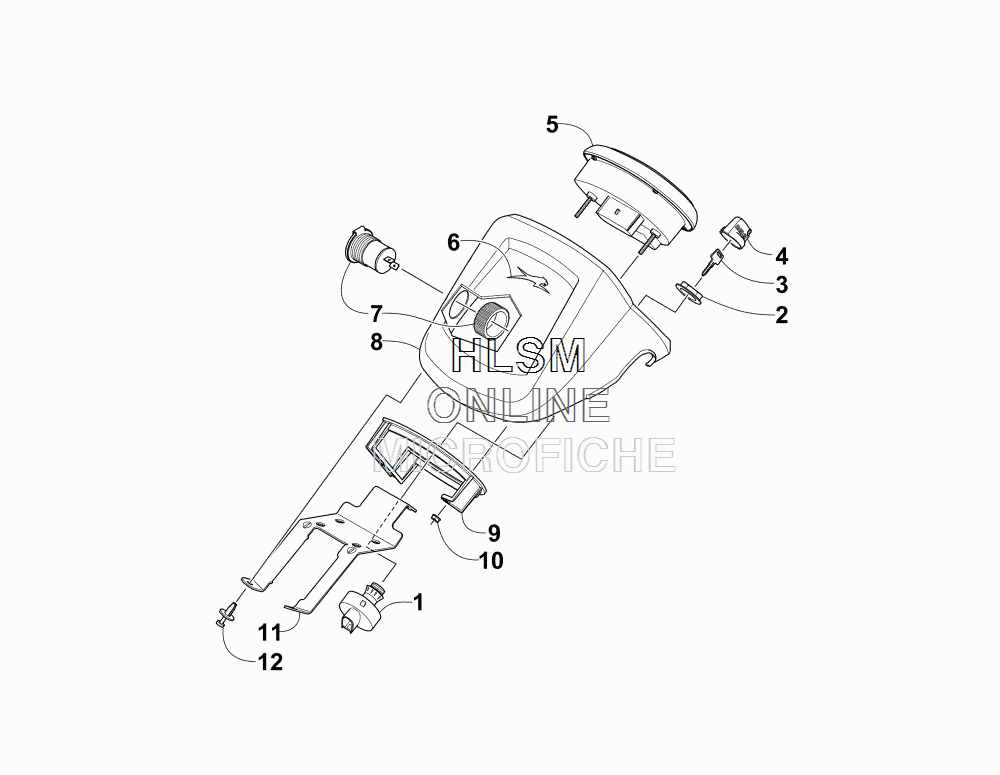

INSTRUMENT POD ASSEMBLY для Arctic Cat 1000 XT GREEN [A2016AGW1PUSX] - 2016 года выпуска
-
№АртикулНазвание
-
10430-105 SWITCH, IGNITION - ASSEMBLY (INC. 2-4)SWITCH, IGNITION - ASSEMBLY (INC. 2-4)
-
20430-112 ...NUT, RETAINING...NUT, RETAINING
-
30430-109 ...KEY, IGNITION - A...KEY, IGNITION - A
-
30430-110 ...KEY, IGNITION - B...KEY, IGNITION - B
-
40430-111 ...COVER, KEY...COVER, KEY
-
50520-238 GAUGE, LCDGAUGE, LCD
-
64411-479 DECAL, AIRCATDECAL, AIRCAT
-
70641-897 OUTLET, ACCESSORY - 12VOUTLET, ACCESSORY - 12V
-
80505-697 INSTRUMENT POD - (BLACK)INSTRUMENT POD - (BLACK)
-
90420-065 BRACKET, RETAININGBRACKET, RETAINING
-
100423-493 NUT W/WASHERNUT W/WASHER
-
112506-470 BRACKET, MOUNTING - INSTRUMENT PODBRACKET, MOUNTING - INSTRUMENT POD
-
120423-535 RIVET, REINSTALLABLERIVET, REINSTALLABLE
