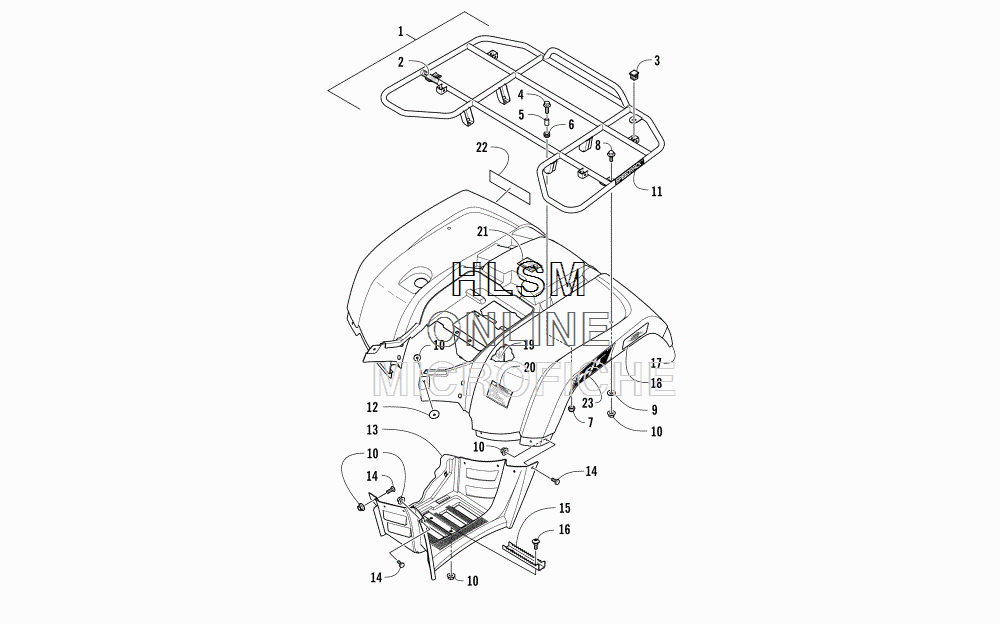

REAR RACK- BODY PANEL- AND FOOTWELL ASSEMBLIES для Arctic Cat 1000 XT INTERNATIONAL GREEN [A2016AGW1POSX] - 2016 года выпуска
-
№АртикулНазвание
-
12506-125 RACK, REAR - ASSEMBLY (INC. 2-3)RACK, REAR - ASSEMBLY (INC. 2-3)
-
20411-648 ...DECAL, WARNING - LOAD...DECAL, WARNING - LOAD
-
30441-592 ...BUSHING...BUSHING
-
48410-835 SCREW, CAPSCREW, CAP
-
50423-669 SPACERSPACER
-
60423-465 GROMMETGROMMET
-
78432-802 NUT, LOCKNUT, LOCK
-
80423-654 SCREW, SHOULDERSCREW, SHOULDER
-
98050-222 WASHERWASHER
-
108427-602 NUT, LOCKNUT, LOCK
-
110411-965 DECAL, SPEEDRACKDECAL, SPEEDRACK
-
120423-101 SCREW, SHOULDERSCREW, SHOULDER
-
132506-450 FOOTWELL - RIGHTFOOTWELL - RIGHT
-
131406-519 FOOTWELL - LEFTFOOTWELL - LEFT
-
140423-419 SCREW, MACHINESCREW, MACHINE
-
155506-497 FOOTPEG - BLACKFOOTPEG - BLACK
-
160423-355 SCREW, SHOULDERSCREW, SHOULDER
-
175506-325 PANEL, FENDER - ASSEMBLY - GREEN (INC. 18-21)PANEL, FENDER - ASSEMBLY - GREEN (INC. 18-21)
-
181411-592 ...DECAL, REFLECTOR - RIGHT...DECAL, REFLECTOR - RIGHT
-
181411-593 ...DECAL, REFLECTOR - LEFT...DECAL, REFLECTOR - LEFT
-
190470-658 ...FOIL, PROTECTIVE...FOIL, PROTECTIVE
-
204411-836 ...DECAL, WARNING - TIRE PRESSURE...DECAL, WARNING - TIRE PRESSURE
-
211411-809 ...DECAL, WARNING - PASSENGER...DECAL, WARNING - PASSENGER
-
221411-725 DECAL - "ARCTIC CAT"DECAL - "ARCTIC CAT"
-
235411-292 DECAL, "XT" RIGHTDECAL, "XT" RIGHT
-
235411-293 DECAL, "XT" LEFTDECAL, "XT" LEFT
