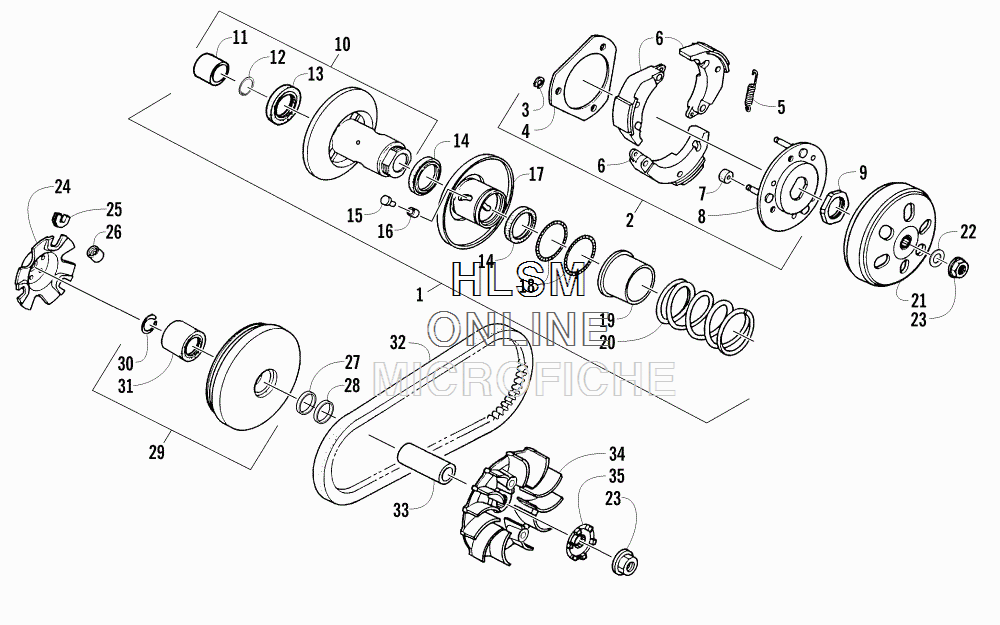

CLUTCH ASSEMBLY для Arctic Cat 150 UTILITY GREEN [A2016KYC2BUSZ] - 2016 года выпуска
-
№АртикулНазвание
-
13304-986 PULLEY, DRIVEN - ASSEMBLY (INC. 2-20)PULLEY, DRIVEN - ASSEMBLY (INC. 2-20)
-
23304-981 CLUTCH, CENTRIFUGAL - ASSEMBLY (INC. 3-8)CLUTCH, CENTRIFUGAL - ASSEMBLY (INC. 3-8)
-
33304-054 ...RING, RETAINING...RING, RETAINING
-
43306-805 ...PLATE, CLUTCH...PLATE, CLUTCH
-
53304-984 ...SPRING...SPRING
-
63304-985 ...WEIGHT, CLUTCH...WEIGHT, CLUTCH
-
73303-780 ...ROLLER...ROLLER
-
83304-982 ...PLATE, CLUTCH...PLATE, CLUTCH
-
93304-994 NUTNUT
-
103304-988 FACE, DRIVEN - FIXED (INC. 11-13)FACE, DRIVEN - FIXED (INC. 11-13)
-
113304-996 ...BEARING...BEARING
-
123304-149 ...RING, RETAINING...RING, RETAINING
-
133304-070 ...BEARING...BEARING
-
143304-997 SEALSEAL
-
153304-990 PIN, GUIDEPIN, GUIDE
-
163303-787 GUIDE, ROLLERGUIDE, ROLLER
-
173304-989 FACE, DRIVEN - MOVABLEFACE, DRIVEN - MOVABLE
-
183304-619 O-RINGO-RING
-
193304-992 SLEEVE, SPRINGSLEEVE, SPRING
-
203304-991 SPRINGSPRING
-
213304-973 CLUTCH, OUTERCLUTCH, OUTER
-
223304-995 WASHER, THRUSTWASHER, THRUST
-
233303-334 NUTNUT
-
243304-979 PLATE, RAMPPLATE, RAMP
-
253304-980 SLIDESLIDE
-
263304-978 ROLLERROLLER
-
273305-744 COLLARCOLLAR
-
283305-745 COLLARCOLLAR
-
293304-976 FACE, DRIVE - MOVABLE (INC. 30-31)FACE, DRIVE - MOVABLE (INC. 30-31)
-
303304-160 ...RING, RETAINING...RING, RETAINING
-
313304-977 ...SLEEVE...SLEEVE
-
323304-987 BELT, DRIVEBELT, DRIVE
-
333304-975 SLEEVESLEEVE
-
343304-974 FACE, DRIVEFACE, DRIVE
-
353304-993 RATCHET, KICK STARTERRATCHET, KICK STARTER
