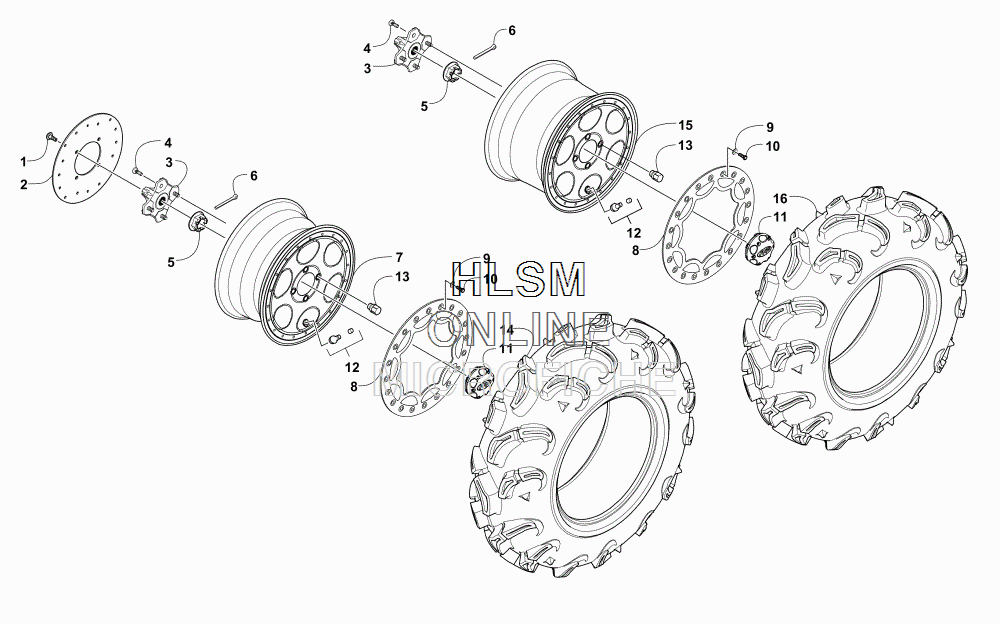

WHEEL AND TIRE ASSEMBLY для Arctic Cat 700 MUD PRO LTD INTERNATIONAL [A2016MLT1POSJ] - 2016 года выпуска
-
№АртикулНазвание
-
10423-557 SCREW, SHOULDERSCREW, SHOULDER
-
21436-418 DISC, BRAKE 10 INCHDISC, BRAKE 10 INCH
-
31502-462 HUB, WHEEL (INC. 4)HUB, WHEEL (INC. 4)
-
40402-974 ...STUD...STUD
-
50423-607 NUT, CASTLENUT, CASTLE
-
60423-407 PIN, COTTERPIN, COTTER
-
72402-155 WHEEL - FRONTWHEEL - FRONT
-
81503-024 RING, BEADLOCK - (GREEN)RING, BEADLOCK - (GREEN)
-
91423-259 WASHERWASHER
-
101423-258 SCREW, CAP - (BLACK)SCREW, CAP - (BLACK)
-
112402-194 CAP, WHEELCAP, WHEEL
-
120402-064 STEM, VALVE - W/CAPSTEM, VALVE - W/CAP
-
130423-618 NUT, LUG - (CHROME)NUT, LUG - (CHROME)
-
141402-855 TIRE FRONT, MAXXIS ZILLA-28X9X14TIRE FRONT, MAXXIS ZILLA-28X9X14
-
152402-156 WHEEL - REARWHEEL - REAR
-
161402-901 TIRE REAR, MAXXIS ZILLA AT 28X11-14TIRE REAR, MAXXIS ZILLA AT 28X11-14
